2016 Lexus LS460 Powertrain Control Module PCM Repair Guide
The powertrain control module (PCM) on your 2016 LS460 is the central computer managing engine timing, fuel delivery, and transmission shifting. Internal processor faults within this unit can cause complete driveability loss, leaving the vehicle unable to start or run properly.
Quick Summary
- The 2016 Lexus LS460 uses a unified PCM that handles both engine and transmission functions
- Internal processor code P0606 indicates a documented failure mode for this vehicle
- Factory replacement requires removing the cowl ventilator, battery cable, and air cleaner components
- Module relearn procedures add additional labor time after installation
- Flagship One units arrive pre-programmed with your vehicle’s VIN
If your 2016 Lexus LS460 has developed a no-start condition, stalls unexpectedly, or triggers check engine lights related to processor faults, the powertrain control module may be the root cause. This guide explains what the PCM does in your specific vehicle, where it is located, and what the replacement process involves. You will learn the factory-recommended repair procedure, the programming requirements, and why choosing a VIN-programmed replacement unit can streamline your repair. The information here is drawn from the vehicle’s factory service procedures and labor time guides.
What the PCM Does in a 2016 Lexus LS460
The powertrain control module in your 2016 Lexus LS460 serves as the primary brain for the entire powertrain. This computer manages fuel injection timing, idle speed, transmission shift points, and communicates with other vehicle systems through the controller area network. When this module fails internally, the result is often a vehicle that will not start or runs poorly despite otherwise healthy mechanical systems. The module is mounted in the engine compartment next to the air cleaner assembly, making access possible through the factory service procedure. Replacement engine computers for the LS460 are available either new, refurbished, or VIN-programmed from specialty suppliers.
Flagship One keeps Lexus LS460 replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves

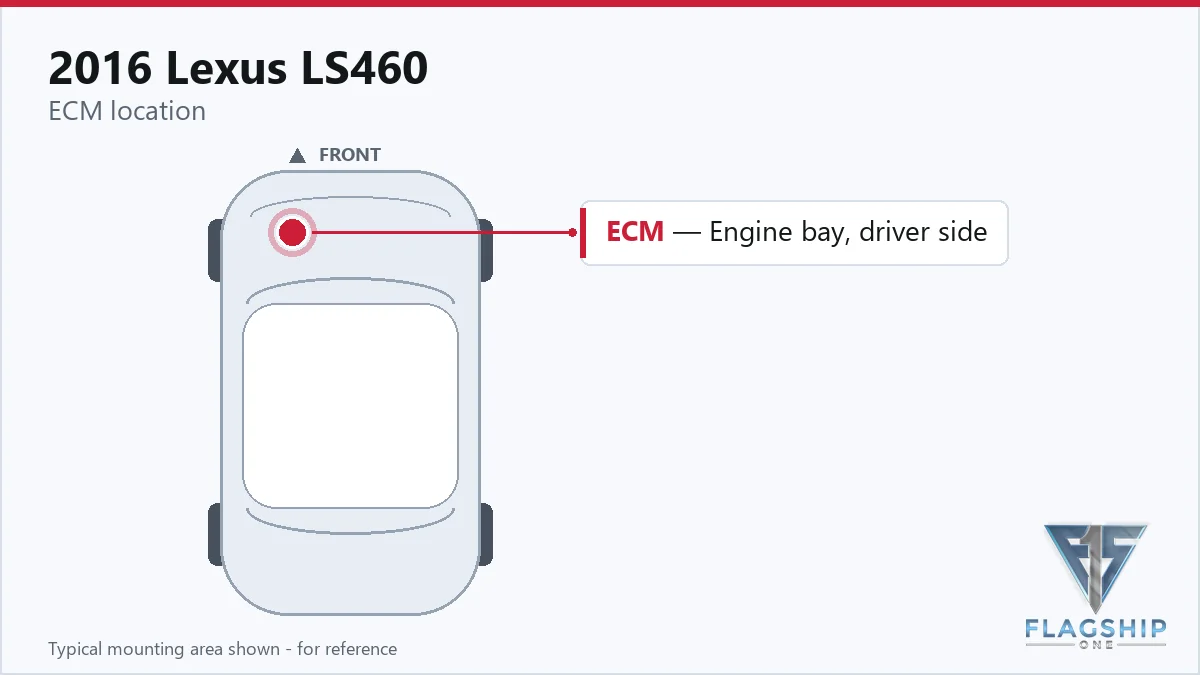

The PCM on your 2016 Lexus LS460 is located in the engine compartment adjacent to the air cleaner assembly. To replace it, the factory procedure requires removing the cowl top ventilator louver on the right side, disconnecting the negative battery cable, removing the air cleaner inlet cover sub-assembly, and taking off the engine room side cover on the left side. The total book time for remove and reinstall labor is 0.5 hours, with an additional 0.5 hour for the relearn procedure after the new module is installed. This means the complete repair, including programming, may require the combined labor hours specified in the factory time guide. The module itself mounts directly in the factory location using standard fasteners.
How to Reach the PCM on the 2016 Lexus LS460
- Remove cowl top ventilator louver rh.
- Disconnect cable from negative battery terminal.
- Remove air cleaner inlet cover sub-assembly.
- Remove engine room side cover lh.
- Remove engine room ecu cover.
- Remove the 3 bolts and engine room ECU cover.
- Disconnect the 4 TCM connectors.
- Remove the 2 nuts and TCM.
- Disconnect the 2 engine wire connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM in your 2016 Lexus LS460, the factory procedure requires a relearn process that takes approximately 0.5 hours to complete. This relearn step calibrates the new module to your vehicle’s specific sensors and drivetrain characteristics. However, when you purchase a VIN-programmed replacement unit from Flagship One, the module arrives already configured with your vehicle’s identification number pre-loaded. This means the relearn procedure is largely completed at the supplier level, potentially reducing the post-install wait time and getting your vehicle back on the road faster.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the powertrain control module fails on a 2016 Lexus LS460, several distinct symptoms typically appear. The most common complaint is a no-start condition where the engine cranks but will not fire, often accompanied by a complete absence of communication when connecting a scan tool to the diagnostic port. Some owners report intermittent stalling or rough running that worsens over time, along with multiple misfire-related diagnostic trouble codes appearing simultaneously. In cases where the internal processor is faulty, the check engine light may illuminate with a processor fault code that does not respond to typical sensor or wiring repairs. Transmission shifting may become erratic or the vehicle may default to limp mode as a protective measure.
Module Trouble Codes on the 2016 Lexus LS460
The 2016 Lexus LS460 is documented to experience internal processor faults that trigger specific trouble codes. The module-internal code P0606 indicates a processor malfunction within the powertrain control module itself, distinguishing it from sensor-related or wiring faults that might be repaired without module replacement.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2016 Lexus LS460
- Maintain proper charging system function — a weak or overcharging alternator can stress the PCM electrical system over time
- Keep battery terminals and ground connections clean and tight to prevent voltage spikes
- Avoid jump-starting the vehicle from another car unless absolutely necessary, as voltage surges can damage sensitive electronics
- Address diagnostic trouble codes promptly rather than ignoring warning lights
- Inspect and maintain intact connector seals to prevent moisture intrusion into the PCM and its wiring harness
Frequently Asked Questions
Will any 2016 Lexus LS460 PCM work for my vehicle?
No. The PCM must be matched to your vehicle’s specific VIN. Generic or unprogrammed units will not communicate properly with your LS460’s systems and may cause additional fault codes.
Can I replace the PCM on my 2016 Lexus LS460 myself?
Mechanical removal is possible for experienced DIYers with proper tools, but the post-install relearn procedure typically requires professional-grade scan tools not available to most consumers.
How do I know if my 2016 Lexus LS460 has a PCM failure versus a simpler electrical issue?
If your vehicle exhibits a no-start condition with no communication on a scan tool, or if diagnostic trouble code P0606 is present, the PCM itself is likely the culprit rather than external sensors or wiring.
When your 2016 Lexus LS460 requires a new powertrain control module, you have two primary paths: purchasing a new unit from a dealer or selecting a professionally refurbished or VIN-programmed replacement from a specialty supplier like Flagship One. Dealer parts carry full manufacturer warranties but come at premium pricing with additional labor for programming. Aftermarket VIN-programmed units arrive ready to install, potentially reducing your total repair time. Consider your budget, warranty preferences, and how quickly you need your vehicle back on the road when making this decision.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Lexus LS460 with a lifetime warranty, free shipping and no core charge. The full Lexus LS460 module lineup covers other engine configurations as well.
Final Thoughts
Your 2016 Lexus LS460 relies on a properly functioning powertrain control module for reliable operation. Whether you choose dealer replacement or a VIN-programmed unit from Flagship One, understanding the factory procedure and programming requirements helps ensure a successful repair. Take time to compare warranty coverage and programming options before committing to a repair path.
