2015 Lexus LS460 PCM/ECM Replacement Guide & Symptoms
The PCM/ECM in your 2015 Lexus LS460 is the central computer that controls engine timing, fuel delivery, and transmission shifts. When it fails, it can cause no-start conditions, stalling, or a P0606 internal processor fault, requiring replacement.
Quick Summary
- Replacement labor is 0.5 hours for R&R plus 0.5 hours for the relearn procedure.
- Access requires disconnecting the negative battery cable after following the factory waiting period.
- A documented trouble code for this module is P0606 (ECM/PCM processor).
- Both PCM and ECM R&R and relearn are listed at 0.5 hours each.
- The factory cautions about waiting time after engine off before battery disconnect.
If your 2015 Lexus LS460 experiences a no-start, stalling, or a check engine light with code P0606, the PCM/ECM may have failed. This engine control module manages critical functions like ignition timing, fuel injection, and transmission operation. Understanding its role and the replacement process helps you make an informed decision. This guide covers symptoms, location, labor times, and the factory relearn requirement. You will also learn that a pre-programmed replacement can save the 0.5-hour relearn step, getting your Lexus back on the road sooner.
What the PCM Does in a 2015 Lexus LS460
The PCM/ECM in your 2015 Lexus LS460 is a single module that integrates engine and transmission control. It processes sensor inputs to adjust fuel mixture, spark timing, and shift points for optimal performance and emissions. When this computer fails, the vehicle may not start, run poorly, or set a P0606 code indicating an internal processor fault. For a reliable fix, consider replacement PCMs for the LS460 that are pre-programmed to your VIN. This module is essential for driveability and requires proper handling during replacement to avoid damage.
Where the PCM Is Located and What Replacement Involves
The PCM/ECM on the 2015 Lexus LS460 is located in the engine bay, typically near the battery or firewall. To access it, you must first disconnect the negative battery cable. The factory cautions that after turning the engine switch off, a waiting time may be required before disconnecting the cable; always read the battery disconnect notice beforehand. The book time for removing and replacing the module is 0.5 hours, and an additional 0.5 hours is allowed for the relearn procedure. Both PCM and ECM R&R and relearn are listed at 0.5 hours each, reflecting the straightforward access path.
How to Reach the PCM on the 2015 Lexus LS460
- REMOVE COWL TOP VENTILATOR LOUVER RH More Info.
- Disconnect cable from negative battery terminal.

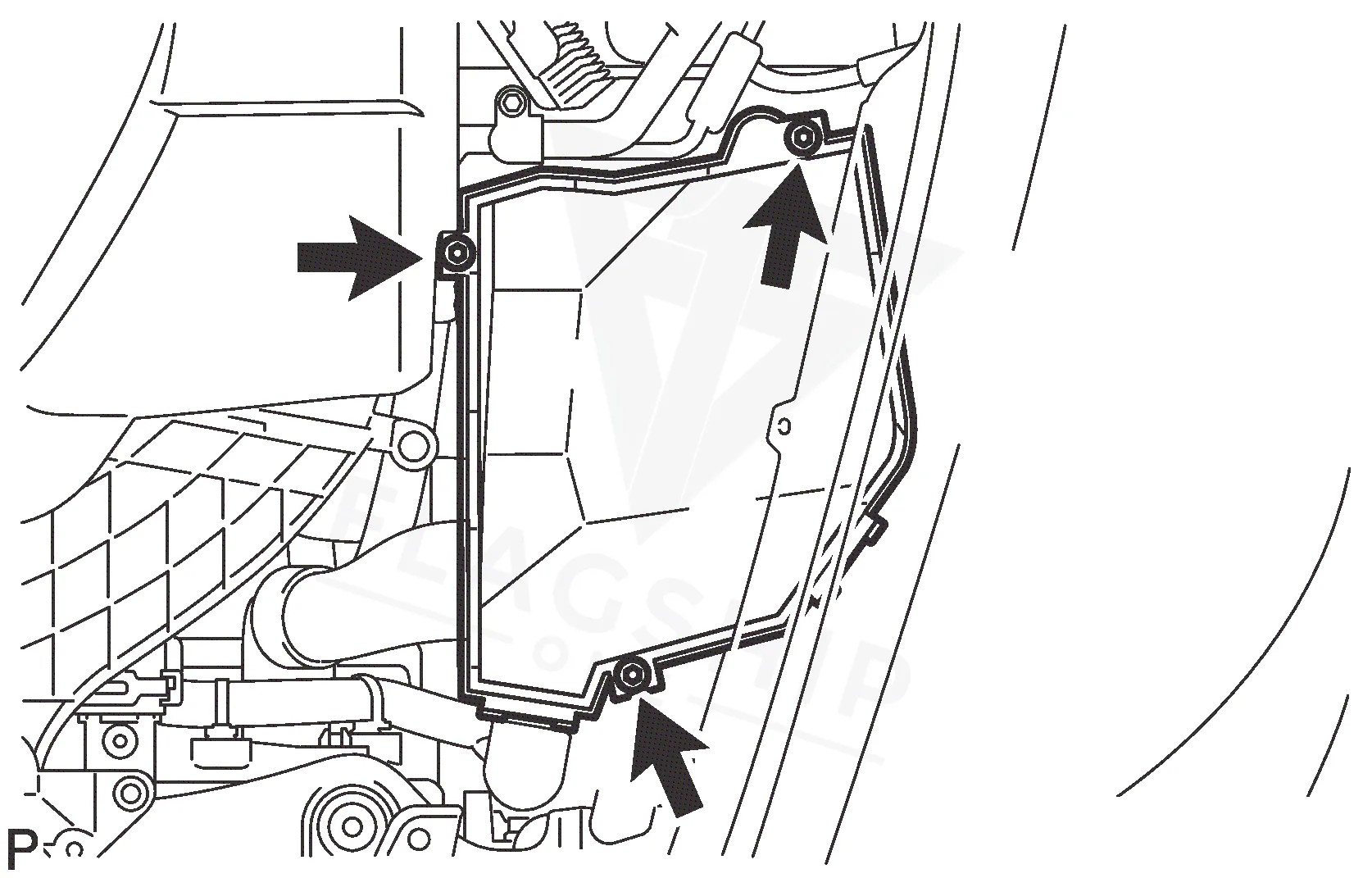

- Remove engine room ecu cover.
- Remove the 3 bolts and engine room ECU cover.
- Disconnect the 4 TCM connectors.
- Remove the 2 nuts and TCM.
- Disconnect the 2 engine wire connectors.
- Disconnect the 2 claws with the connector holder.
- Disconnect the 6 ECM connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new or replacement PCM/ECM on the 2015 Lexus LS460, the factory procedure requires a relearn process that takes 0.5 hours. This step ensures the module synchronizes with the vehicle’s security and emissions systems. However, when you order a VIN-programmed replacement unit from Flagship One, that relearn is already completed. The module arrives ready to install, so you can skip the 0.5-hour relearn and simply perform the R&R. This saves time and eliminates the need for a dealer visit.
Symptoms of a Failing PCM
Common failure symptoms of the PCM/ECM in a 2015 Lexus LS460 include a no-start condition where the engine cranks but does not fire, intermittent stalling while driving, and misfire codes that do not clear. You may also experience dead scan-tool communication, where a diagnostic scanner cannot connect to the module. Transmission shifting may become erratic or stuck in a single gear. If the module has an internal fault, you will likely see P0606 internal processor fault stored in the system. These symptoms indicate the computer needs replacement.
Module Trouble Codes on the 2015 Lexus LS460
The following trouble codes are stored internally within the PCM/ECM of the 2015 Lexus LS460. These codes indicate specific failures within the module itself and are separate from generic OBD-II codes.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2015 Lexus LS460
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the PCM/ECM.
- Keep battery and chassis grounds clean and tight to ensure stable voltage to the module.
- Avoid jump-starting the vehicle with a running donor car; use a battery pack or follow the manual’s procedure.
- Address any check engine light or driveability codes promptly to prevent secondary damage.
- Inspect the PCM/ECM connector seals for cracks or moisture intrusion, and ensure they are fully seated.
- When disconnecting the battery, always follow the factory waiting period to avoid electrical surges.
Frequently Asked Questions
What is the labor time to replace the PCM on a 2015 Lexus LS460?
The book time for PCM R&R is 0.5 hours, and the relearn procedure adds another 0.5 hours. Access requires disconnecting the negative battery cable after following the factory waiting period.
What does the P0606 code mean on a 2015 Lexus LS460?
P0606 is a manufacturer-specific code indicating an internal processor fault within the PCM/ECM. It often means the module has failed and needs replacement. A pre-programmed unit can save the relearn step.
Can I install a used PCM/ECM from a salvage yard in my 2015 Lexus LS460?
A used module may work, but it must be programmed to your VIN. The factory relearn procedure is still required. A pre-programmed replacement from Flagship One eliminates that step and ensures compatibility.
When your 2015 Lexus LS460’s PCM/ECM fails, you have options: repair the existing unit or replace it with a refurbished module. Given the complexity of modern engine computers, a replacement that arrives pre-programmed to your VIN can save the 0.5-hour relearn step and get you back on the road faster. Flagship One offers such units for the LS460.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Lexus LS460 with a lifetime warranty, free shipping and no core charge. The full Lexus LS460 module lineup covers other engine configurations as well.
Final Thoughts
The 2015 Lexus LS460 relies on its PCM/ECM for smooth operation. If you encounter symptoms like no-start or a P0606 code, consider a pre-programmed replacement to minimize downtime. Flagship One offers units ready to install, saving you the 0.5-hour relearn procedure.
