2016 GMC Yukon XL PCM and ECM Replacement Guide
In the 2016 GMC Yukon XL, the powertrain control module (PCM) and engine control module (ECM) manage transmission shifting, engine timing, and emissions. A failure typically disables communication with the engine, triggers diagnostic codes, and can cause rough starts, shifting irregularities, or a non‑starting condition.
Quick Summary
- PCM removal and reinstall typically requires about 0.8 hours of labor.
- ECM replacement also averages 0.8 hours, with additional relearn steps.
- Factory service bulletins note clunking shifts and specific DTCs such as P16F3.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding.
When a 2016 GMC Yukon XL begins to exhibit firm garage shifts, clunk noises at start‑up, or an illuminated MIL with codes like P16F3, the powertrain and engine control modules are common culprits. Understanding how these computers operate and what the repair entails helps you decide between a new factory unit or a refurbished replacement. This guide outlines the function, location, labor expectations, programming requirements, and preventive measures so you can approach the service with confidence.
What the PCM Does in a 2016 GMC Yukon XL
The PCM in the 2016 GMC Yukon XL governs transmission shift logic, fuel delivery, and emission controls, while the ECM handles engine timing, sensor processing, and idle control. Together they ensure smooth acceleration and compliance with emissions standards. A malfunction can disrupt shift timing, cause stalling, or trigger multiple diagnostic codes. This vehicle’s design relies on precise coordination between these modules, and a faulty unit often leads to the symptoms described in service bulletins. replacement engine computers for the 2016 GMC Yukon XL are engineered to meet the same specifications and communication protocols.
Where the PCM Is Located and What Replacement Involves

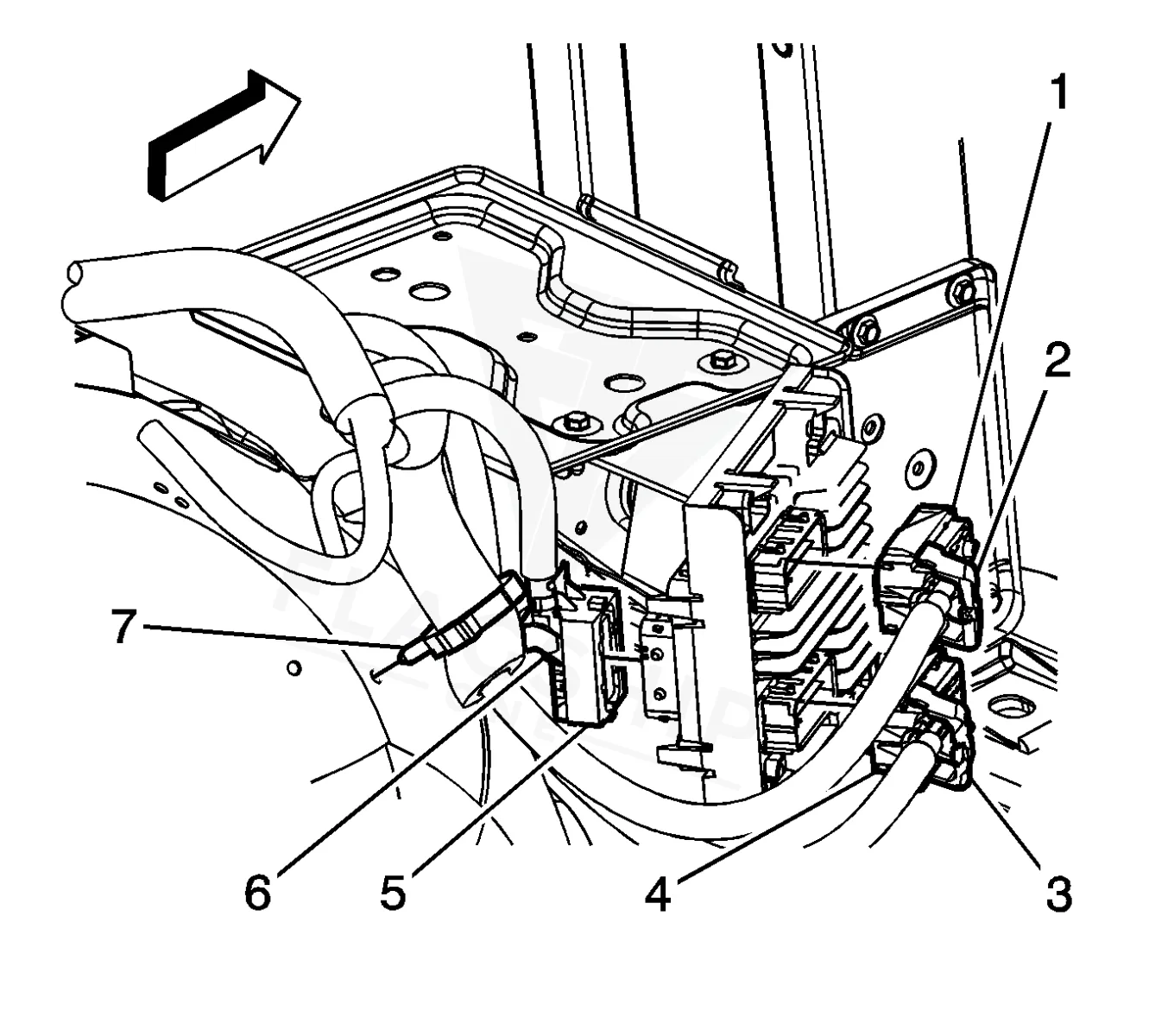

Both the PCM and ECM are mounted within the engine compartment, accessible after removing the air intake assembly and related brackets. Replacing the PCM typically involves 0.8 hours of labor, while the ECM removal and installation also averages 0.8 hours. After the ECM is removed, the factory recommends capturing its data with a scan tool before disconnection. No torque specifications were provided, so standard fastener tightening procedures apply.
How to Reach the PCM on the 2016 GMC Yukon XL
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the ECM.
- Position the engine wiring harness lower electrical connector and engage the retainer.
- Position the engine wiring harness upper electrical connector and engage the retainer.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
Following a PCM or ECM swap, the factory procedure includes a series of relearn and reset steps: PCM removal and replacement (0.8 hours), PCM relearn (0.5 hours), ECM relearn (0.5 hours), ECM reset (0.3 hours), and ECM replacement (0.8 hours). Flagship One supplies a VIN-programmed replacement unit that arrives with those calibrations pre‑loaded, so the technician can skip the post‑install coding and move directly to verification.
Symptoms of a Failing PCM
Owners of the 2016 GMC Yukon XL may notice delayed gear engagement, a noticeable clunk at engine start, or a persistent MIL. Diagnostic scans often reveal internal codes such as processor failure or related processor faults. Communication loss between the scan tool and the vehicle’s computers can also occur, confirming a likely PCM/ECM issue.
Module Trouble Codes on the 2016 GMC Yukon XL
The following internal diagnostic codes are documented for the 2016 GMC Yukon XL and can help pinpoint module failures:
Factory Service Bulletins Worth Knowing
Service bulletin #15-NA-007, dated Jan 29 2016, addresses firm garage shifts, start‑up clunks, and DTC P16F3, recommending TCM reprogramming. Bulletin #PIP5373B from Jun 11 2018 covers ECM error codes E4491 and E4423, indicating a need for ECM programming updates.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Firm Garage Shifts, Start Up Clunk, DTC P16F3 (Reprogram TCM) – (Jan 29, 2016) | Some customers may comment on any of the following conditions: Firm garage shifts, Park to Drive or Park to Reverse after the vehicle has be sitting for… |
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
Protecting the PCM in Your 2016 GMC Yukon XL
- Maintain a healthy charging system to avoid voltage drops.
- Inspect and clean all ground points and connector contacts regularly.
- Avoid jump‑starts that can introduce voltage spikes to the modules.
- Address any diagnostic codes promptly before they compound.
- Ensure connector seals remain intact to protect against moisture.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2016 GMC Yukon XL?
The standard book time for removing and reinstalling the powertrain control module is about 0.8 hours.
Do I need special tools to reset the ECM after replacement in this model?
Factory procedures call for a scan tool to capture ECM data before removal and then perform a relearn sequence after installation.
Can a refurbished ECM cause the same issues as a new one in the Yukon XL?
A refurbished unit that is VIN‑programmed and passes functional testing should operate identically to a new part, provided it is installed correctly.
When the PCM or ECM in your 2016 GMC Yukon XL needs attention, you can choose a brand‑new factory replacement or a professionally refurbished unit. Both options restore the vehicle’s control logic, but a refurbished part from Flagship One arrives pre‑programmed, reducing shop time and ensuring a proper fit for this model.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 GMC Yukon XL with a lifetime warranty, free shipping and no core charge. The full GMC Yukon XL module lineup covers other engine configurations as well.
Final Thoughts
The 2016 GMC Yukon XL relies on its PCM and ECM for reliable performance; addressing failures promptly keeps the vehicle running smoothly. Consider a VIN‑programmed replacement to simplify the repair and get back on the road with confidence.
