2014 GMC Yukon XL Powertrain and Engine Control Module Guide
In the 2014 GMC Yukon XL, the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and transmission coordination. Failure typically results in loss of communication, diagnostic trouble codes, and impaired vehicle performance.
Quick Summary
- PCM removal and reinstall generally require about 1.4 hours of labor.
- ECM relearn steps add roughly 0.5 hours after replacement.
- Factory caution stresses using the 12 V battery for any aftermarket electrical connections.
- Flagship One units arrive VIN‑programmed, eliminating post‑install data capture.
When the powertrain or engine control module in your 2014 GMC Yukon XL stops communicating, you may notice a lit malfunction indicator lamp, rough idle, or unexpected codes. This guide explains what the modules do, how they are accessed, and what factory procedures are needed after a replacement. By the end, you will understand the labor involved, the programming steps, and how a Flagship One replacement can simplify the process.
What the PCM Does in a 2014 GMC Yukon XL
The Powertrain Control Module in a 2014 GMC Yukon XL oversees the interaction between the engine and transmission, while the Engine Control Module handles fuel injection and ignition timing. Together they ensure smooth acceleration and emissions compliance. Proper operation is essential for reliable power delivery, and any fault can trigger diagnostic codes. Replacement modules are often sourced as replacement engine computers that match the vehicle’s specifications.
Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine compartment, typically attached to the firewall and secured with bolts. Removing the module involves disconnecting the battery, unplugging the wiring harness, and unbolting the unit, a task that aligns with the listed 1.4‑hour labor time for removal and reinstall. After the unit is secured, a relearn of the Powertrain Control Module takes about 0.5 hours and the Engine Control Module relearn requires an additional 0.5 hours. The ECM reset procedure adds roughly 0.3 hours if needed.

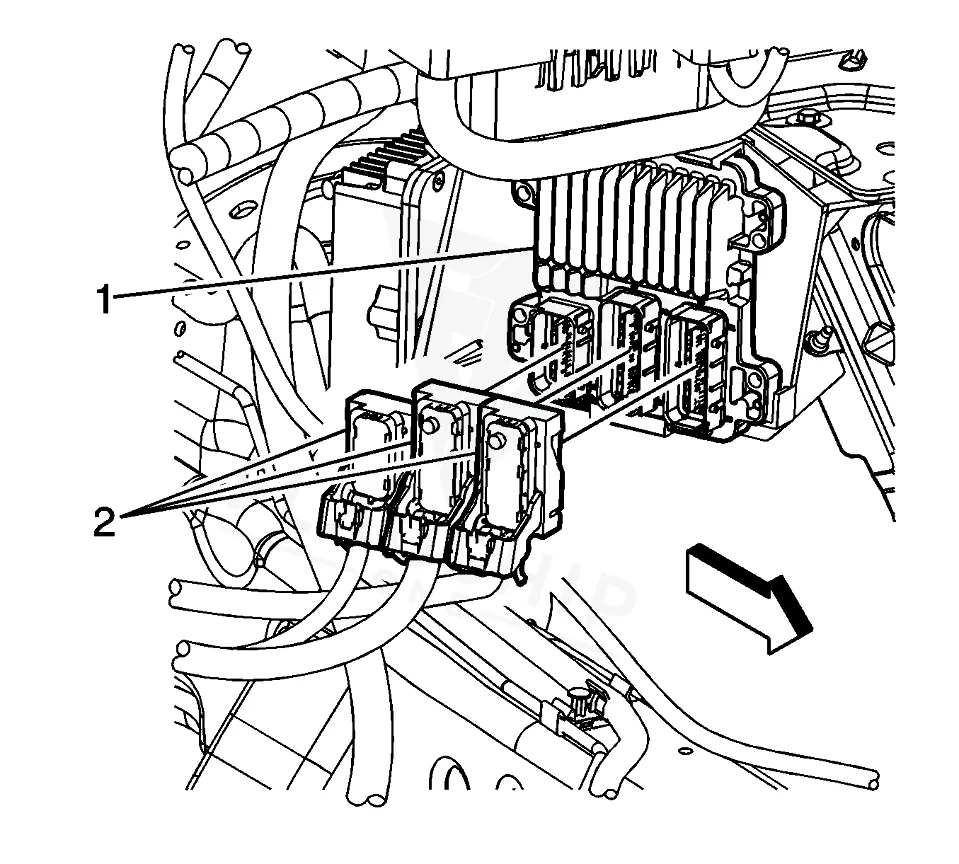

How to Reach the PCM on the 2014 GMC Yukon XL
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the battery and battery tray.
- Remove the under hood electrical center.
- Remove the ECM from the bracket.
- Position the engine wiring harness electrical connectors and engage the retainers.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
Programming Requirements After Replacement
Factory service requires capturing the original ECM data with a scan tool before removal, then using specialized equipment and the correct calibration to reprogram the module. Flagship One provides a VIN-programmed replacement unit that arrives already calibrated, so the capture and reprogram steps are completed before the unit reaches your shop.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2014 GMC Yukon XL include a non‑starting condition, intermittent stalling, and loss of communication with the scan tool. You may also see a MIL illuminated and retrieve codes such as code P0601 that point to internal processor failures. These issues often accompany rough idle or unexpected transmission shifts.
Module Trouble Codes on the 2014 GMC Yukon XL
The following diagnostic trouble codes are documented for the Powertrain and Engine Control Modules in this vehicle:
Factory Service Bulletins Worth Knowing
Bulletin #PI1082 (Oct 10 2013) addresses a MIL on condition with DTC P069E. Bulletin #09-06-04-026 and #09-06-04-026G (Mar 19 2013) provide guidance on identifying non‑GM calibrations for V6 and V8 engines using Tech 2 or GDS 2.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Malfunction Indicator Lamp (MIL) On, DTC P069E Set – (Oct 10, 2013) | — |
| 09-06-04-026 | Identifying Non-GM (Aftermarket) Engine and Transmission Calibrations for V6 and V8 Gasoline En | — |
Protecting the PCM in Your 2014 GMC Yukon XL
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and connector pins regularly.
- Use surge protectors when jump‑starting to prevent voltage spikes.
- Address any diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What labor time is typical for replacing the PCM in a 2014 GMC Yukon XL?
The standard book time for removing and reinstalling the Powertrain Control Module is about 1.4 hours.
Do I need special equipment to program a new ECM in this Yukon XL?
Yes, the factory procedure requires special programming tools and the correct calibration, but a VIN‑programmed Flagship One unit arrives ready to operate.
Can aftermarket electrical accessories affect the PCM or ECM?
Connecting aftermarket devices directly to the 12 V system without following the factory caution can introduce voltage irregularities that may harm the control modules.
When a control module fails, you can choose a repair that follows the factory relearn steps or opt for a refurbished replacement that arrives pre‑programmed. In a 2014 GMC Yukon XL, both approaches restore the vehicle’s performance, but a Flagship One unit eliminates the need for post‑install data capture, saving time and reducing risk.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 GMC Yukon XL with a lifetime warranty, free shipping and no core charge. The full GMC Yukon XL module lineup covers other engine configurations as well.
