2016 Buick Verano ECM Replacement
The Engine Control Module manages fuel injection, ignition timing, and emissions for the 2016 Buick Verano’s 2.0‑liter engine. A fault can trigger misfires, loss of power, or engine shutdown.
Quick Summary
- ECM replacement requires 2.3 hours of labor.
- Relearn procedure takes 0.5 hours.
- Disconnecting the harness is essential to prevent electrostatic discharge.
- Programming uses the EL-49642 SPS tool.
- Service bulletins address error codes E4491 and E4423.
If your 2016 Buick Verano is exhibiting erratic idling, stalling, or no-start conditions, the Engine Control Module may be at fault. This guide explains what the ECM does, why it matters to your vehicle’s performance, and what steps are needed to replace it. By understanding the process, you can make an informed decision about repair or replacement and ensure your engine runs smoothly again.
What the PCM Does in a 2016 Buick Verano
The Engine Control Module is the central brain of the 2016 Buick Verano’s 2.0‑liter engine, controlling ignition timing, fuel delivery, and emissions monitoring. It processes data from sensors and adjusts engine operation to maintain efficiency and performance. replacement engine computers for the 2016 Buick Verano By managing these critical functions, the ECM ensures your vehicle runs reliably and meets emission standards.
Where the PCM Is Located and What Replacement Involves
The ECM is located under the driver’s seat, behind the engine cover. Removal involves disconnecting the wiring harness plugs, with a labor time of 2.3 hours. After replacement, a 0.5‑hour relearn routine adjusts the new module to the engine’s operating parameters. No additional torque specifications are required for this installation.
How to Reach the PCM on the 2016 Buick Verano
- Remove any debris from around the control module connector.
- Disconnect the battery negative cable.

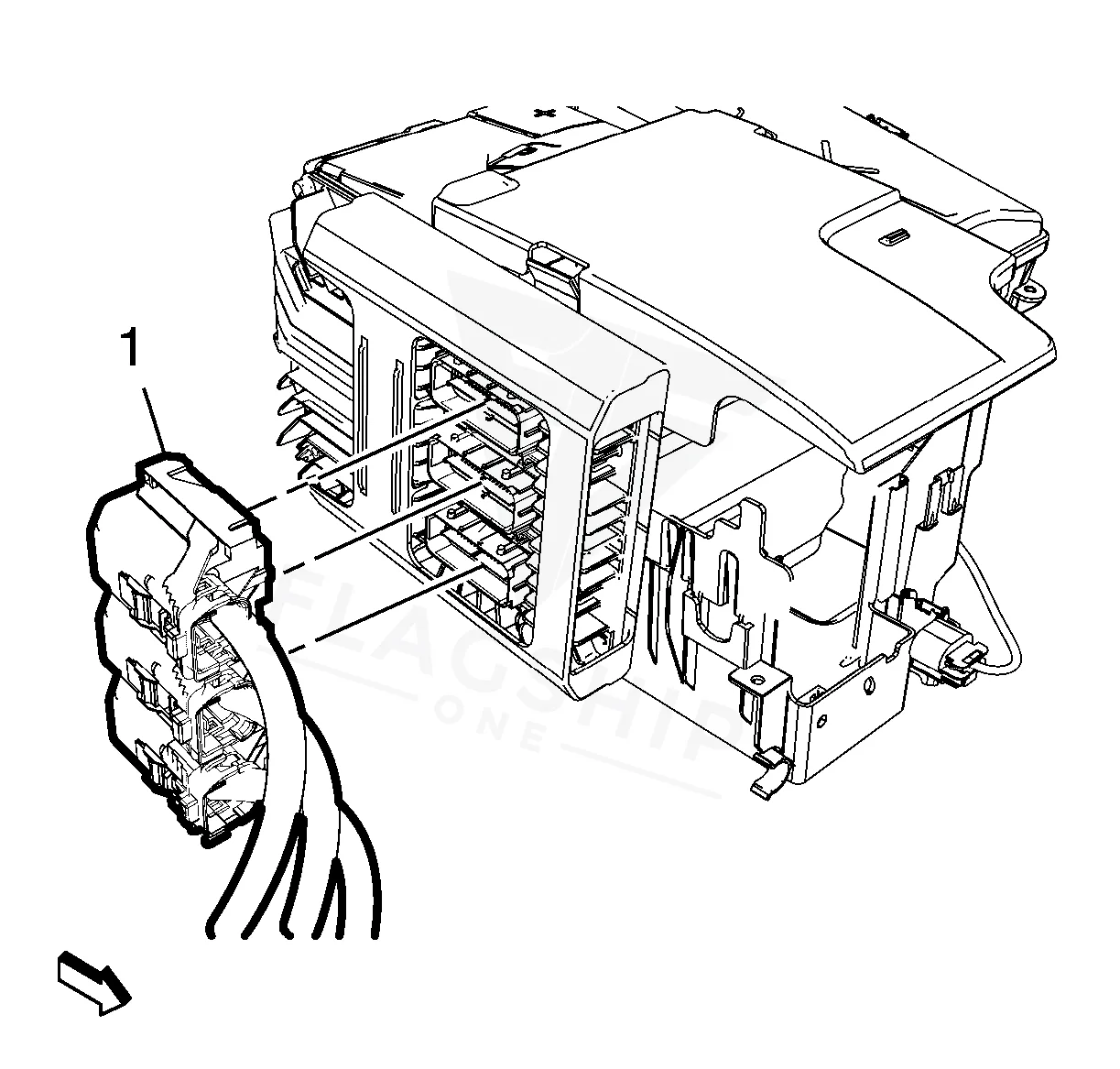

- Disconnect the ECM wiring harness plugs from the ECM.
- Remove the ECM bracket along with the ECM from the battery tray.
- Unclip the retainer clip.
- Remove the ECM from the ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 2.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 2.3 hr |
Programming Requirements After Replacement
After installing the new unit, the factory procedure calls for reprogramming the ECM using the EL-49642 SPS tool. Flagship One units arrive VIN‑programmed, so that step is already completed. This means the new module is ready for use immediately after installation, eliminating the need for a separate programming session.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Common signs of a failing ECM in the 2016 Buick Verano include no-start, stalling, erratic idle, and misfire codes. When the module is compromised, the engine may lose communication with the diagnostic tool, and codes such as communication failure between the PCM and external modules may be logged, indicating internal control issues.
Module Trouble Codes on the 2016 Buick Verano
The following internal trouble codes can appear in the 2016 Buick Verano’s ECM, indicating specific failures within the module.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P060A | Module-internal fault | — |
| P062B | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
| P0630 | Module-internal fault | Full P0630 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #PIP5373B (Jun 11, 2018) addresses ECM error codes E4491 and E4423. Bulletin #17-NA-242 (Jul 24, 2017) warns about reprogramming a module with its current calibration.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
| — | Information on Changes to SPS that Warn/Prohibit Reprogramming a Module With Its Current Calibr | — |
Protecting the PCM in Your 2016 Buick Verano
- Keep the battery’s charging system in good condition to avoid voltage spikes.
- Inspect and clean the ECM’s grounding points and connectors regularly.
- Avoid jump‑starting the vehicle with a high‑current charger that could damage the module.
- Address any diagnostic codes promptly to prevent further degradation.
- Maintain the integrity of connector seals to protect against moisture and debris.
Frequently Asked Questions
What should I expect during a 2016 Buick Verano ECM replacement?
The replacement takes about 2.3 hours for removal and reinstallation, plus a 0.5‑hour relearn. The new unit is already VIN‑programmed, so no additional programming is required.
Can I perform the ECM replacement myself?
While the labor steps are straightforward, the process involves handling sensitive electronic components and disconnecting the wiring harness. It is recommended to have a qualified technician complete the work.
Will replacing the ECM resolve misfire and stalling issues?
If the symptoms stem from a faulty ECM, replacement should restore proper engine operation. However, other underlying issues may also cause similar symptoms, so a full diagnostic check is advised.
When faced with an ECM issue on your 2016 Buick Verano, you can choose a traditional repair or opt for a refurbished replacement unit from Flagship One. Both options provide reliable performance, and the refurbished units come pre‑programmed for your vehicle’s VIN, saving you time and ensuring compatibility.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Buick Verano with a lifetime warranty, free shipping and no core charge. The full Buick Verano module lineup covers other engine configurations as well.
Final Thoughts
For the 2016 Buick Verano, a properly installed and programmed ECM restores engine control and performance. Consider the replacement route that best fits your maintenance schedule and budget, and keep your vehicle running smoothly.
