2015 Toyota Sienna ECM Replacement and Programming Guide

Replacing the Engine Control Module or Powertrain Control Module in your 2015 Toyota Sienna with the 3.5L engine is a repair that can restore lost drivability or resolve persistent warning lights. This guide covers the factory removal procedure, programming requirements, and what you should know before purchasing a replacement. Your Sienna relies on this central computer to manage critical engine and transmission functions, so understanding the replacement process helps you make informed decisions about repair options. Whether you are a technician preparing for the job or a vehicle owner researching costs, the information here explains what the procedure involves and why post-installation programming matters.

What the PCM Does in a 2015 Toyota Sienna

The Engine Control Module in your 2015 Toyota Sienna functions as the central processing hub for all engine management decisions. This computer receives input from sensors measuring air temperature, exhaust gas composition, throttle position, and crankshaft orientation, then uses that data to control fuel injectors, ignition coils, and the variable valve timing system. replacement engine computers for the Sienna are designed to maintain the precise air-fuel ratios and timing curves that the factory calibrated for this powertrain. The module also manages communication between the engine and transmission control systems, influencing shift quality and torque converter lockup. Without proper ECM operation, the engine may enter a reduced-power mode, fail emissions tests, or stall unexpectedly. Because the module interfaces with nearly every major electrical system on your vehicle, a failing ECM often produces symptoms that seem unrelated to each other, making professional diagnosis important before assuming the module itself is at fault.

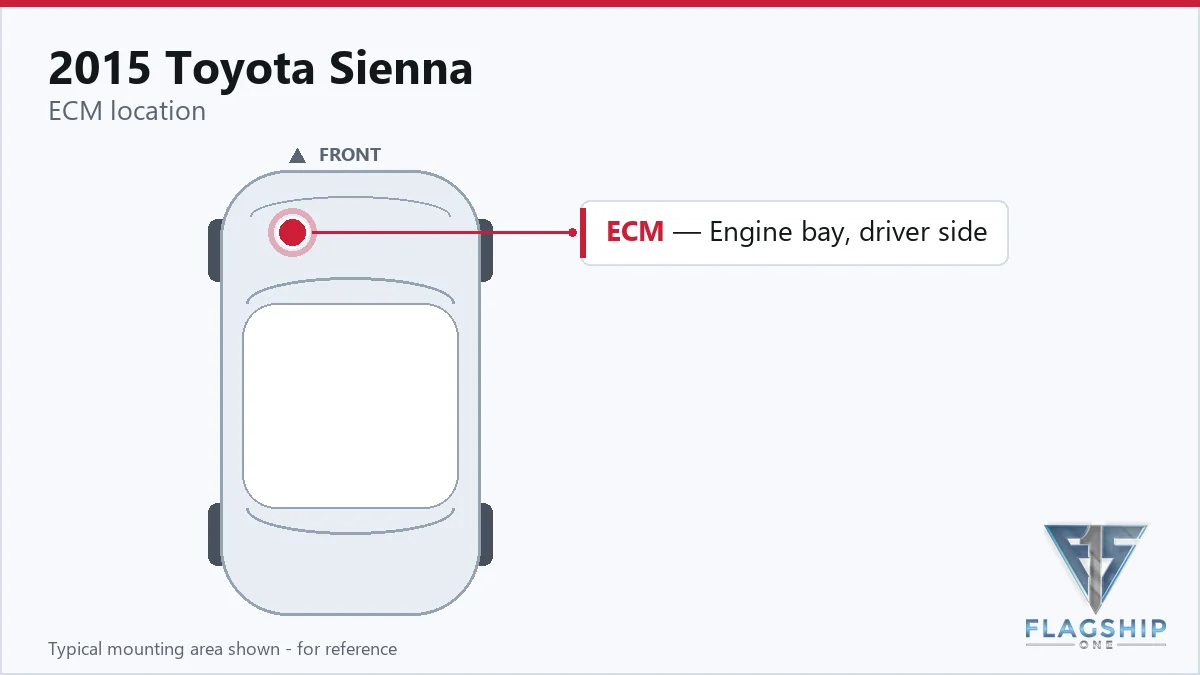

Where the PCM Is Located and What Replacement Involves

The factory removal procedure positions the ECM next to the air cleaner assembly in the engine compartment. Accessing this location requires removing the windshield wiper motor and link assembly as the first step in the disassembly sequence. Book time for ECM removal and reinstallation is 1.3 hours according to standard labor guides. After the physical replacement is complete, relearn procedures take an additional 0.5 hours, and reset procedures require 0.3 hours more. The total shop time for the complete procedure, assuming no unexpected complications, falls within these factory-estimated ranges. Torque specifications for mounting fasteners and electrical connector installation should follow the values found in the appropriate service publication for this model year. Ensuring all connectors are fully seated and the module mounting surface is clean helps prevent intermittent electrical issues after reassembly.

Programming Requirements After Replacement

Toyota specifies that a Vehicle Identification Number registration step must be completed when the ECM is replaced in this 2015 Sienna. This process synchronizes the replacement module with the vehicle’s security and anti-theft systems. The procedure typically requires a factory-level scan tool or software access. a VIN-programmed replacement unit arrives from Flagship One already configured with your vehicle’s specific identification number, which means this particular step is handled before the module ever reaches your shop or garage. This pre-programming does not eliminate the need for all post-installation procedures, but it does reduce the number of steps your technician must perform on your vehicle and can shorten the time your Sienna spends in the shop. Verify with your service provider which specific post-install steps their procedure requires.

Symptoms of a Failing PCM

A failing Engine Control Module in your 2015 Toyota Sienna may trigger the check engine light and store multiple unrelated diagnostic trouble codes. Common failure indicators include hard starting or a no-start condition, intermittent stalling especially during low-speed maneuvering, rough idle quality, and hesitation during acceleration. Some vehicles experience transmission shifting problems when the ECM cannot properly communicate with the transmission control module. In cases of partial module failure, the engine may run but exhibit poor fuel economy or elevated emissions. the ECM internal processing fault code indicates the module detected an internal malfunction during its self-diagnostic cycle. This specific code often means the module cannot reliably execute its programmed functions and replacement becomes necessary rather than a repair option. A scan tool connected to a healthy vehicle should display live sensor data and active commands; a failed module may show no communication or freeze on specific values.

Module Trouble Codes on the 2015 Toyota Sienna

The 2015 Toyota Sienna equipped with the 3.5L engine may store module-internal trouble codes when the Engine Control Module detects problems with its own processing functions. These codes differ from sensor-related faults because they originate within the module itself rather than from external circuit failures. Code P0606 specifically indicates an internal Electronic Control Module processing fault, suggesting the computer cannot reliably execute its self-diagnostic routines. When this type of code appears without corresponding sensor failures, the module hardware itself typically requires replacement rather than repair.

Protecting the PCM in Your 2015 Toyota Sienna

• Maintain healthy charging system voltage with regular battery and alternator testing to protect the ECM from low-voltage damage
• Keep engine ground connections and ECM electrical connectors clean and properly tightened to ensure reliable voltage reference points
• Avoid jump-starting the vehicle incorrectly, as reverse polarity or excessive voltage can destroy sensitive control module circuits
• Address any stored diagnostic trouble codes promptly before they cascade into related system failures
• Protect electrical connectors from water intrusion during pressure washing or engine compartment cleaning
• Verify that any aftermarket accessories installed on your Sienna include proper circuit protection to prevent voltage spikes reaching the ECM

Frequently Asked Questions

How do I know if my 2015 Toyota Sienna needs an ECM replacement or just a repair?

Diagnostic trouble codes pointing to multiple random sensors without corresponding wiring issues, a no-communication condition with the scan tool, or codes specifically indicating internal module faults like P0606 typically indicate replacement is needed rather than repair.

Can I install a used ECM from a junkyard in my Toyota Sienna?

A used module requires programming to match your vehicle’s specific identification number and calibration data. Without proper programming, the engine may not start or will run poorly, and security system communication may be disrupted.

What happens if I do not register the VIN after replacing the ECM?

The vehicle may not start, or the security system may prevent normal operation. Some functions like remote entry, engine starting, and certain dashboard indicators depend on the ECM and PCM sharing consistent identification data with the rest of the vehicle.

Replacing the Engine Control Module in your 2015 Toyota Sienna requires careful consideration of programming requirements alongside the physical repair. A new dealer-sourced unit typically carries a higher price but may include specific calibrations for your trim level. A professionally refurbished replacement can offer good value when it arrives pre-programmed with your vehicle identification number. Regardless of which route you choose, confirming that post-installation steps like VIN registration are completed ensures your Sienna returns to normal operation without unexpected delays or additional service visits.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Toyota Sienna with a lifetime warranty, free shipping and no core charge. The full Toyota Sienna module lineup covers other engine configurations as well.

Final Thoughts

The 2015 Toyota Sienna depends on its Engine Control Module to manage the 3.5L engine and coordinate transmission operation. Understanding the location near the air cleaner, the access requirements, and the post-installation programming steps helps you approach this repair with realistic expectations. Flagship One replacement modules arrive configured with your specific vehicle identification number, streamlining the installation process. For assistance finding the correct replacement unit or technical guidance on completing your repair correctly, reach out to the support team.
