2015 Scion FR‑S PCM and ECM Replacement Guide
In the 2015 Scion FR‑S, the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery, and transmission coordination. Failure of either unit typically triggers internal fault codes and can lead to loss of power, rough idle, or complete no‑start conditions, requiring removal and re‑learn procedures.
Quick Summary
- PCM removal usually takes about 0.7 hours of labor.
- ECM replacement also requires roughly 0.7 hours of work.
- Relearn steps for both modules add another 0.5 hours each.
- Common fault codes include P0601 and P0604 among others.
When a 2015 Scion FR‑S begins to exhibit erratic performance, stalling, or a complete failure to start, the underlying cause often points to the vehicle’s computer modules. Understanding how the powertrain control module (PCM) and engine control module (ECM) operate, what symptoms they generate, and the steps required for proper replacement can help you make an informed decision. This guide walks you through the function of each module, typical labor times, the re‑learn procedures needed after installation, and practical tips to keep these components healthy. By the end, you’ll know what to expect during a service event and how a VIN‑programmed replacement from Flagship One can simplify the process.
What the PCM Does in a 2015 Scion FR-S
The PCM in a 2015 Scion FR‑S serves as the central brain for both engine and transmission, interpreting sensor data to control fuel injection, ignition timing, and shift timing. It also communicates with the ECM, which focuses on engine‑specific functions like idle control and emissions monitoring. Together they ensure the vehicle runs smoothly and meets emissions standards. Because the PCM directly influences drivetrain behavior, any fault can affect acceleration, gear changes, and overall drivability. Maintaining accurate data flow through these modules is essential for reliable performance. For owners seeking a direct swap, Scion FR‑S replacement PCM offers a straightforward path that aligns with factory specifications.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are housed within the engine compartment of the 2015 Scion FR‑S, typically mounted near the firewall and accessible after removing the air intake duct and battery connector. The book time for removing and reinstalling the PCM is listed as 0.7 hours, while the ECM follows the same duration. After the unit is secured, the vehicle requires a relearn procedure: 0.5 hours for the PCM and another 0.5 hours for the ECM. These steps involve connecting a scan tool to clear codes and initiate the module’s self‑learning cycle, ensuring proper sensor calibration before normal operation resumes.

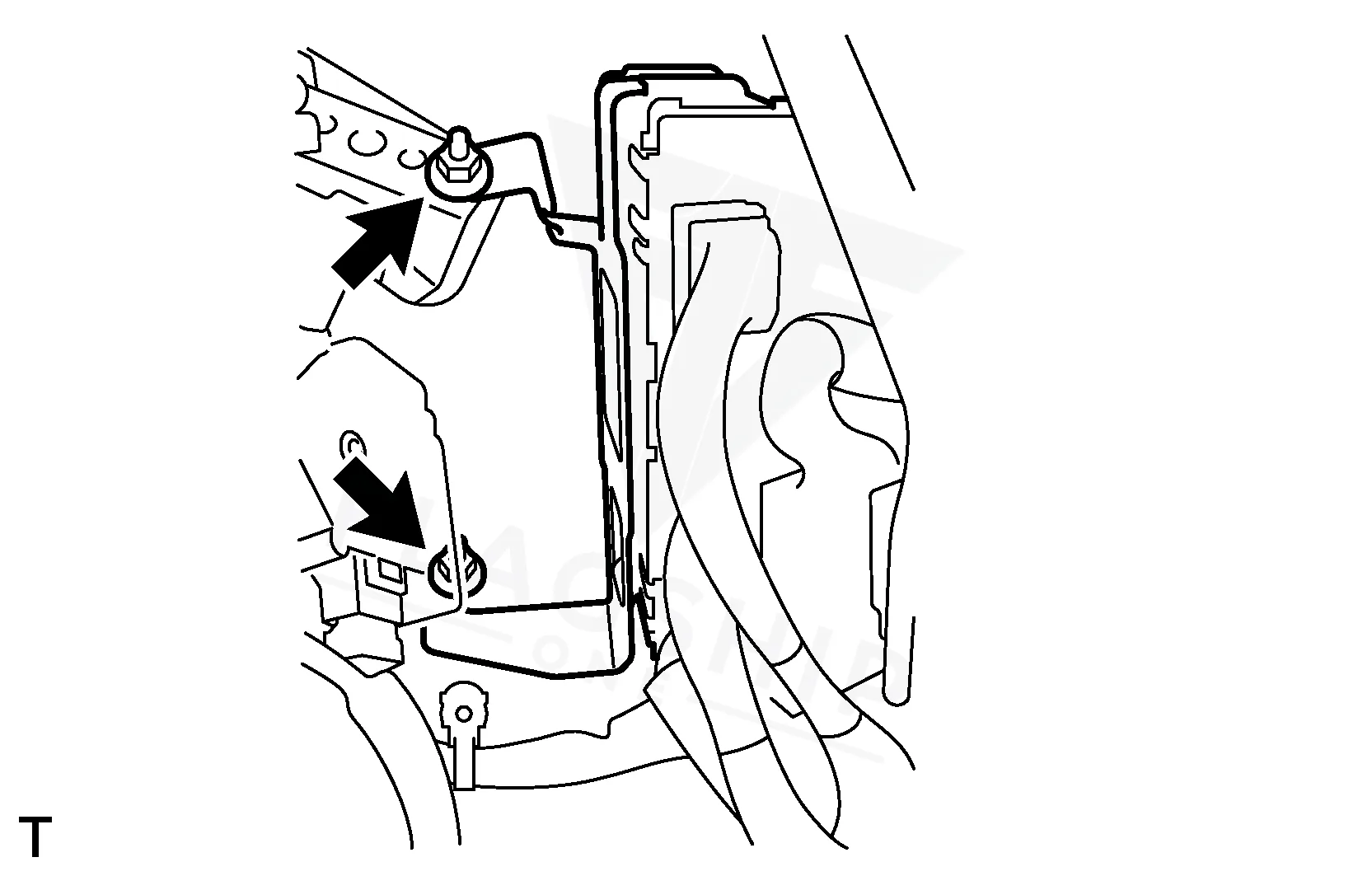

How to Reach the PCM on the 2015 Scion FR-S
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY More Info REMOVE CONTROL UNIT RELAY ASSEMBLY More Info.
- Disconnect the 4 connectors from the ECM.
- Remove the 2 nuts and ECM.
- Remove ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
Programming Requirements After Replacement
Factory service for the FR‑S mandates a specific re‑learn sequence after a PCM or ECM is replaced, which includes a 0.5‑hour relearn for each module. Flagship One units arrive pre‑configured to the vehicle’s VIN, so the a VIN‑programmed replacement unit eliminates the need for those post‑install programming steps, allowing the technician to focus on mechanical installation and verification.
Symptoms of a Failing PCM
A failing PCM or ECM in the 2015 Scion FR‑S often presents as a no‑start condition, rough idle, or unexpected transmission shifts. Drivers may also notice the check engine light flashing and see fault codes stored in the diagnostic memory. One common code, processor clock fault, indicates a timing issue within the module that can prevent the engine from cranking. Additional signs include intermittent loss of power, stalling at low speeds, and failure of the scan tool to communicate with the vehicle’s computer network.
Module Trouble Codes on the 2015 Scion FR-S
The following internal diagnostic codes are commonly recorded when the PCM or ECM experiences a malfunction in the 2015 Scion FR‑S:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
Protecting the PCM in Your 2015 Scion FR-S
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean all ground connections regularly.
- Use surge protectors when jump‑starting to limit voltage spikes.
- Address any stored fault codes promptly before they recur.
- Keep connector seals free from corrosion and moisture.
- Avoid prolonged exposure to extreme temperatures that can stress electronic components.
Frequently Asked Questions
What labor is required to replace the PCM on a 2015 Scion FR‑S?
The standard shop manual lists about 0.7 hours for removal and installation, plus an additional 0.5 hours for the required PCM relearn procedure.
Will a new ECM need to be programmed after installation in my FR‑S?
Factory guidelines call for a 0.5‑hour ECM relearn. A VIN‑programmed replacement from Flagship One already includes that configuration, so no further programming is needed.
Which fault codes indicate a PCM problem in the 2015 FR‑S?
Typical PCM‑related codes include P0601, P0604, P0605, P0606, P060A, P060B, and P062F, each pointing to internal processor or communication issues.
Can a bad ground cause PCM or ECM failures in my FR‑S?
Yes, poor grounding can disrupt the electrical signals the modules rely on, leading to erratic behavior and stored fault codes.
Is it safe to use a refurbished PCM in my 2015 Scion FR‑S?
Refurbished units that are VIN‑programmed meet the same specifications as new parts and are a cost‑effective alternative when installed correctly.
When the PCM or ECM in your 2015 Scion FR‑S shows signs of failure, you have the option of a professional repair or installing a refurbished, VIN‑programmed replacement. Both approaches address the underlying issue, but a pre‑programmed unit can reduce shop time by eliminating post‑install coding steps, allowing you to return to the road sooner.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Scion FR-S with a lifetime warranty, free shipping and no core charge. The full Scion FR-S module lineup covers other engine configurations as well.
Final Thoughts
The 2015 Scion FR‑S relies on its PCM and ECM for smooth operation, and addressing faults promptly can preserve performance. Consider a VIN‑programmed replacement to streamline the repair process and keep your vehicle running reliably.
