2006 Scion xA PCM Replacement: Quick Guide
The Powertrain Control Module in a 2006 Scion xA governs engine timing, fuel delivery, and transmission shift logic. When it fails, the vehicle may stall, misfire, or refuse to start, compromising safety and performance.
Quick Summary
- Powertrain Control Module replacement takes 0.6 hours of labor.
- Access requires removal of the cable from the negative battery and the glove compartment door.
- The factory mandates a 90‑second wait after disconnecting the negative battery to avoid airbag or seat belt activation.
- VIN must be written to the PCM; missing VIN can cause emissions inspection failures.
- Flagship One units arrive already VIN‑programmed, skipping the write step.
If your 2006 Scion xA is showing engine hesitation, stalling, or a sudden loss of power, the culprit might be the Powertrain Control Module. This guide explains what the PCM does in your car, why it matters, and what you can do to keep it running smoothly. By understanding the module’s role and the steps required for a replacement, you can avoid costly downtime and ensure your vehicle stays reliable.
What the PCM Does in a 2006 Scion xA
The Powertrain Control Module is the brain that coordinates fuel injection, ignition timing, and shift patterns in the 2006 Scion xA. Powertrain Control Module replacement It interprets sensor data and sends commands to the engine and transmission, ensuring efficient operation and emissions compliance. A fault in this unit can result in engine misfires, reduced power, or even a no‑start condition, directly affecting daily driving confidence.
Where the PCM Is Located and What Replacement Involves
The PCM is located behind the glove compartment. To reach it, first disconnect the cable from the negative battery terminal, then remove the glove compartment door. The replacement labor time is listed as 0.6 hours. Follow the factory sequence to avoid airbag or seat belt pretensioner activation by waiting at least 90 seconds after battery disconnection.
How to Reach the PCM on the 2006 Scion xA
- Disconnect cable from negative battery.
- Remove glove compartment door.
- Disconnect the 4 ECM connectors.
- Remove the 2 bolts and ECM.
- Remove the 2 screws and ECM bracket.
- Remove the 2 screws and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure requires writing the vehicle identification number to the unit. Because Flagship One units come already VIN‑programmed, you can skip the write step and immediately power the system. This eliminates the need for a separate VIN entry session during installation. VIN‑programmed replacement unit for the correct application.
Symptoms of a Failing PCM
Common indicators that the PCM may be failing in a 2006 Scion xA include a hard‑to‑start engine, sudden stalling, or a rough idle that worsens when the vehicle is warm. Misfire codes, such as P0606 or P0617, may appear on a diagnostic scan. If the engine runs but the car shifts erratically, it could also be a PCM problem. Powertrain Control Module Error for the correct application.
Module Trouble Codes on the 2006 Scion xA
The following list contains the internal trouble codes that can be logged by the Powertrain Control Module in a 2006 Scion xA.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
| P0617 | Module-internal fault | Full P0617 guide → |
Factory Service Bulletins Worth Knowing
#SS002-07 T.S.B.::SS002-07: 01-08 Applicable Toyota: Techstream ECU Flash Reprogramming Procedure
#SS003-07 T.S.B.::SS003-07: 04-08 Applicable Scion: Techstream ECU Flash Reprogramming Procedure
| Bulletin | Subject | What It Addresses |
|---|---|---|
| SS002-07 | :SS002-07: 01-08 Applicable Toyota: Techstream ECU Flash Reprogramming Procedure | — |
| SS003-07 | :SS003-07: 04-08 Applicable Scion: Techstream ECU Flash Reprogramming Procedure | — |
Protecting the PCM in Your 2006 Scion xA
- Maintain the charging system to keep battery voltage stable.
- Keep all PCM connectors clean and free of corrosion.
- Avoid sudden voltage spikes when jump‑starting or during battery replacement.
- Respond promptly to any diagnostic codes related to the PCM.
- Ensure connector seals are intact to prevent moisture ingress.
Frequently Asked Questions
Will replacing the PCM on my 2006 Scion xA affect my warranty?
If the vehicle is still under manufacturer warranty, a factory‑approved replacement should preserve the warranty. Non‑OEM parts may void specific coverage, so verify with your dealer before proceeding.
How long does the replacement procedure typically take?
The labor time listed in the book is 0.6 hours, which covers removal, installation, and basic testing. Additional time may be needed for diagnostic verification.
Can I drive my car immediately after the PCM is replaced?
Yes, once the unit is installed and powered, the car should start normally. However, it is recommended to perform a quick drive‑cycle to ensure all systems are functioning correctly.
Whether you choose to have a certified technician perform the PCM replacement or opt for a refurbished unit from a trusted source, the 2006 Scion xA can return to reliable operation. Consider the benefits of a factory‑programmed replacement to avoid post‑install coding steps.

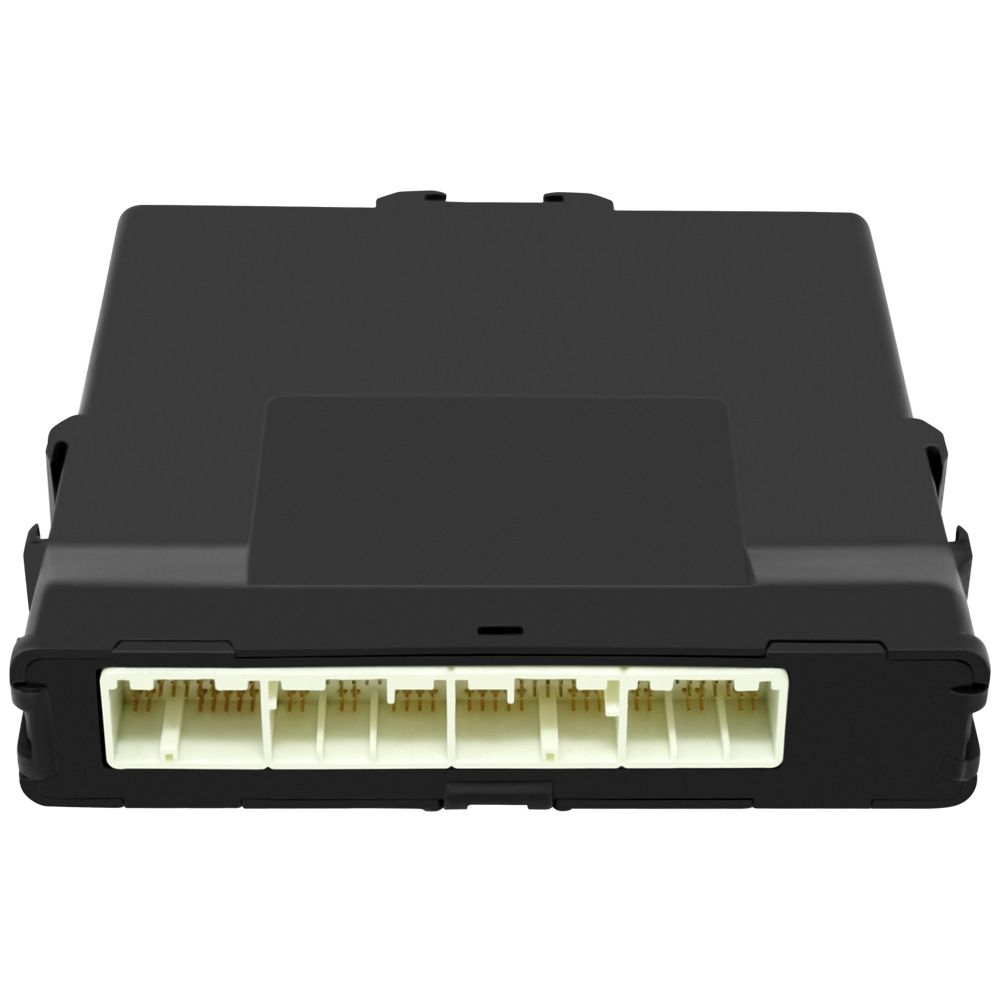

Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Scion xA with a lifetime warranty, free shipping and no core charge. The full Scion xA module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM in your 2006 Scion xA restores proper engine and transmission coordination, eliminating stalls and misfires. If you notice any of the symptoms mentioned, a professional replacement is a worthwhile investment for long‑term peace of mind.
