2013 Scion FR‑S PCM and ECM Replacement Guide
In the 2013 Scion FR‑S, the powertrain control module and engine control module manage engine timing, fuel delivery and transmission coordination. Failure typically triggers internal fault codes and can cause loss of driveability, stalling, or no‑start conditions.
Quick Summary
- PCM removal and reinstall generally requires about 0.7 hours of labor.
- ECM work follows a similar time frame, with 0.7 hours for removal and 0.5 hours for relearn.
- Common fault codes include P0601, P0604, P0605, P0606, P060A, P060B and P062F.
- Flagship One supplies VIN‑programmed units that eliminate post‑install relearn steps.
When a 2013 Scion FR‑S begins reporting powertrain control module or engine control module trouble, the situation can feel urgent. Those electronic brains control everything from fuel injection to shift timing, and a fault can quickly translate into rough idle, hesitation, or a complete no‑start. This guide walks you through what the modules do in this particular model, where they sit, how long a shop typically spends on removal and replacement, and what steps the factory requires after a swap. You’ll also see the most common diagnostic codes, practical tips to keep the electronics healthy, and answers to frequent questions. By the end, you’ll know what to expect whether you choose a new factory‑programmed unit or a refurbished replacement from Flagship One.
What the PCM Does in a 2013 Scion FR-S
The powertrain control module in the 2013 Scion FR‑S acts as the central command unit for the engine and transmission, interpreting sensor data to adjust fuel, spark and gear changes. The engine control module, while similar, focuses on engine‑specific functions such as ignition timing and emissions control. Both modules are critical because they ensure the vehicle runs smoothly, meets emissions standards, and delivers the intended performance. A malfunction can cause erratic idle, loss of power, or transmission‑related issues. Understanding their role helps you see why a fault often triggers multiple diagnostic codes. For owners seeking a replacement, locating reliable replacement engine computers for the 2013 Scion FR‑S can simplify the repair process.
Where the PCM Is Located and What Replacement Involves
In the 2013 Scion FR‑S, the PCM and ECM are mounted within the engine compartment, typically secured to the firewall or near the battery. Removal generally involves disconnecting the connector harnesses, unbolting the unit and extracting it from its bracket. According to the labor guide, a powertrain control module removal and reinstall takes about 0.7 hours, while the engine control module follows the same removal time. After the hardware is swapped, a relearn procedure is required: 0.5 hours for the PCM and another 0.5 hours for the ECM. These steps ensure the new unit syncs with the vehicle’s existing sensors and actuators.

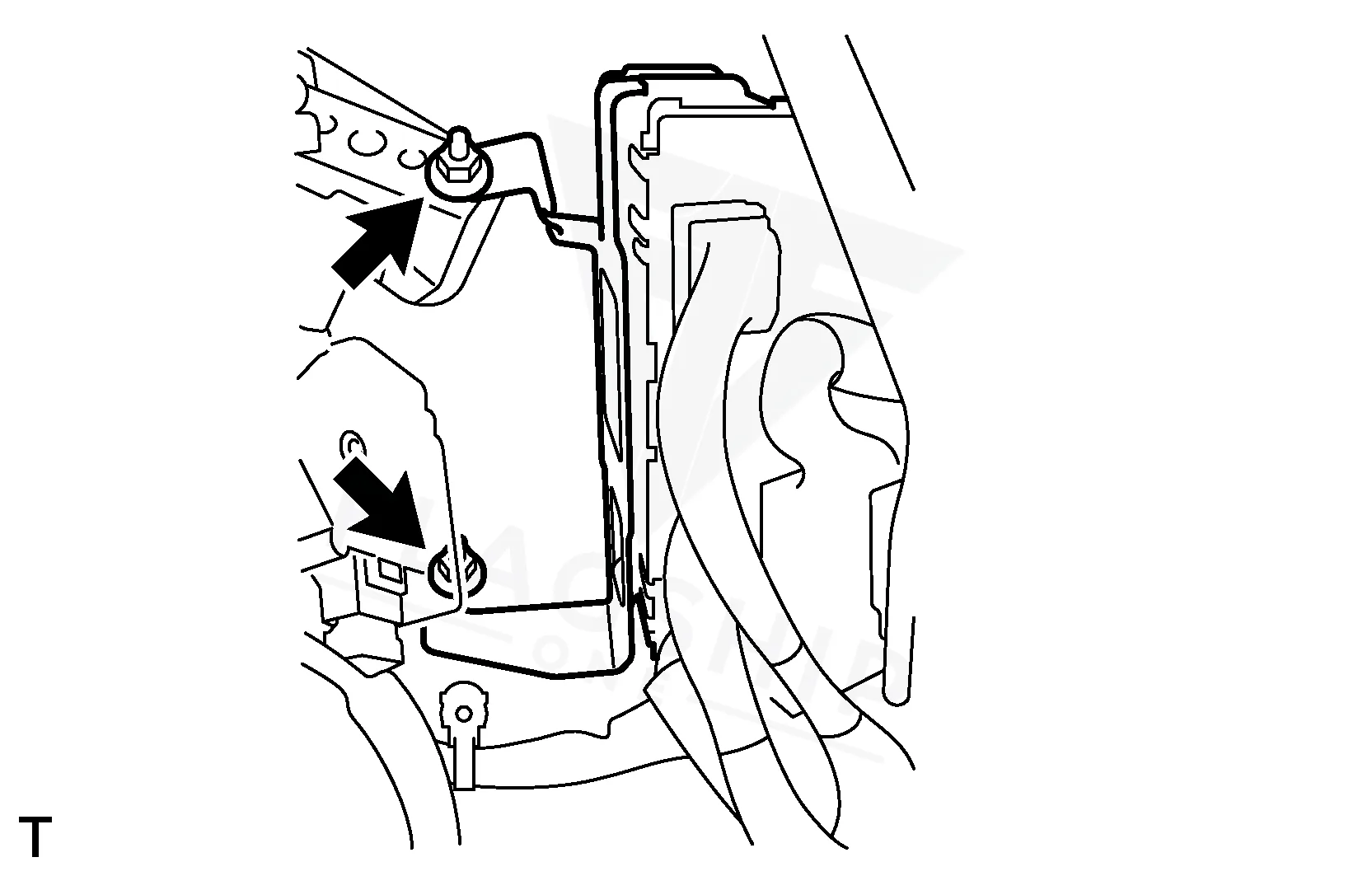

How to Reach the PCM on the 2013 Scion FR-S
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY More Info REMOVE CONTROL UNIT RELAY ASSEMBLY More Info.
- Disconnect the 4 connectors from the ECM.
- Remove the 2 nuts and the ECM.
- Remove ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
Programming Requirements After Replacement
Factory service procedures dictate that after a PCM or ECM replacement in a 2013 Scion FR‑S, a relearn of the control module is required to calibrate sensor baselines and transmission logic. The labor guide lists 0.5 hours for each relearn operation. Flagship One units arrive already VIN‑programmed, meaning the necessary calibration data is pre‑loaded, so the technician can skip the relearn step. This reduces shop time and eliminates the risk of incorrect programming. Using a a VIN‑programmed replacement unit therefore streamlines the repair and helps ensure reliable operation from day one.
Symptoms of a Failing PCM
When the PCM or ECM begins to fail in a 2013 Scion FR‑S, owners often notice a rough idle, occasional stalling, or a complete loss of power when attempting to start. The scan tool may lose communication with the module, and the vehicle can throw a variety of powertrain codes. One frequent code is internal control module memory checksum error, which indicates a loss of internal data integrity. Other signs include unexpected transmission shifting, reduced fuel efficiency, and occasional misfire warnings. These symptoms arise because the modules can no longer process sensor inputs correctly, leading to erratic engine management.
Module Trouble Codes on the 2013 Scion FR-S
The following internal trouble codes are documented for the 2013 Scion FR‑S powertrain and engine control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
Protecting the PCM in Your 2013 Scion FR-S
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and connector pins regularly.
- Avoid jump‑starting the vehicle unless absolutely necessary to prevent spikes.
- Address any stored diagnostic codes promptly before they recur.
- Ensure connector seals remain intact to keep moisture out.
- Periodically check battery voltage and alternator output for stability.
Frequently Asked Questions
What causes a P0601 code in a 2013 Scion FR‑S?
The P0601 code signals an internal memory checksum error in the PCM. It often results from a failing module, corrupted firmware, or voltage irregularities that disrupt data storage.
Can I replace the PCM myself on a 2013 Scion FR‑S?
While the physical removal is straightforward, the required relearn procedure and proper VIN programming make professional installation advisable to ensure correct operation.
How long does it typically take to replace the ECM on this model?
Labor guides indicate about 0.7 hours for removal and reinstall, plus an additional 0.5 hours for the post‑install relearn step.
Will a refurbished PCM work as well as a new one?
A refurbished unit that has been tested and VIN‑programmed can perform equivalently to a new part, provided it meets the manufacturer’s specifications.
What should I do if my scan tool cannot communicate with the PCM?
Check the connector pins for corrosion, verify battery voltage is within spec, and consider whether the PCM itself may need replacement if communication does not resume.
When the powertrain or engine control module fails in a 2013 Scion FR‑S, you have two practical paths: a brand‑new factory‑programmed replacement or a refurbished unit that has been tested and re‑programmed. Both options restore the vehicle’s electronic control functions, but a refurbished Flagship One part may reduce cost while still delivering the same VIN‑specific calibration. Evaluate your budget and timing, and choose the solution that aligns with your service goals.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Scion FR-S with a lifetime warranty, free shipping and no core charge. The full Scion FR-S module lineup covers other engine configurations as well.
Final Thoughts
If your 2013 Scion FR‑S is showing PCM or ECM trouble, a timely replacement can restore reliable performance. Flagship One’s VIN‑programmed units eliminate the need for post‑install relearn steps, helping you get back on the road faster. Consider your options and act before symptoms worsen.
