2014 Toyota Camry Hybrid ECM Replacement Guide
The Engine Control Module (ECM) in your 2014 Toyota Camry Hybrid is the central computer managing the 2.5L hybrid powertrain, including engine operating parameters, fuel delivery, and emissions systems. When this module fails, the vehicle may not run properly or may not start at all.
Quick Summary
- The 2014 Camry Hybrid uses a single ECM that controls both engine and hybrid system functions
- PCM/ECM R&R book time is 0.7 hours, with additional relearn procedures of 0.5-0.5 hours for powertrain and engine control modules
- Factory procedure requires VIN registration when replacing the ECM
- Access requires disconnecting the negative battery cable, removing the cool air intake duct seal and battery
If your 2014 Toyota Camry Hybrid is experiencing starting issues, stalling, or warning lights, the Engine Control Module may be the culprit. This guide explains what the ECM does in your specific vehicle, the replacement process, and what you need to know before tackling the repair. Whether you are a DIY technician or discussing options with a shop, understanding the factory procedures helps you make informed decisions about your vehicle’s computer system.
What the PCM Does in a 2014 Toyota Camry Hybrid
The Engine Control Module in your 2014 Toyota Camry Hybrid serves as the brain of the 2.5L four-cylinder engine and the hybrid system integration. This computer monitors sensor inputs from throughout the engine and hybrid drivetrain, adjusting fuel delivery, ignition timing, and emissions control systems in real-time. It communicates with the hybrid vehicle management system to coordinate power flow between the gasoline engine and electric motor. When the ECM encounters internal processor faults that it cannot recover from, replacement engine computers for the Camry may be necessary to restore proper vehicle operation. The module also stores trouble codes that help diagnose drivability issues, making it essential for both vehicle operation and troubleshooting.
What Replacing the PCM Involves
How to Reach the PCM on the 2014 Toyota Camry Hybrid
- Disconnect cable from negative battery terminal.
- REMOVE COOL AIR INTAKE DUCT SEAL More Info REMOVE BATTERY More Info.

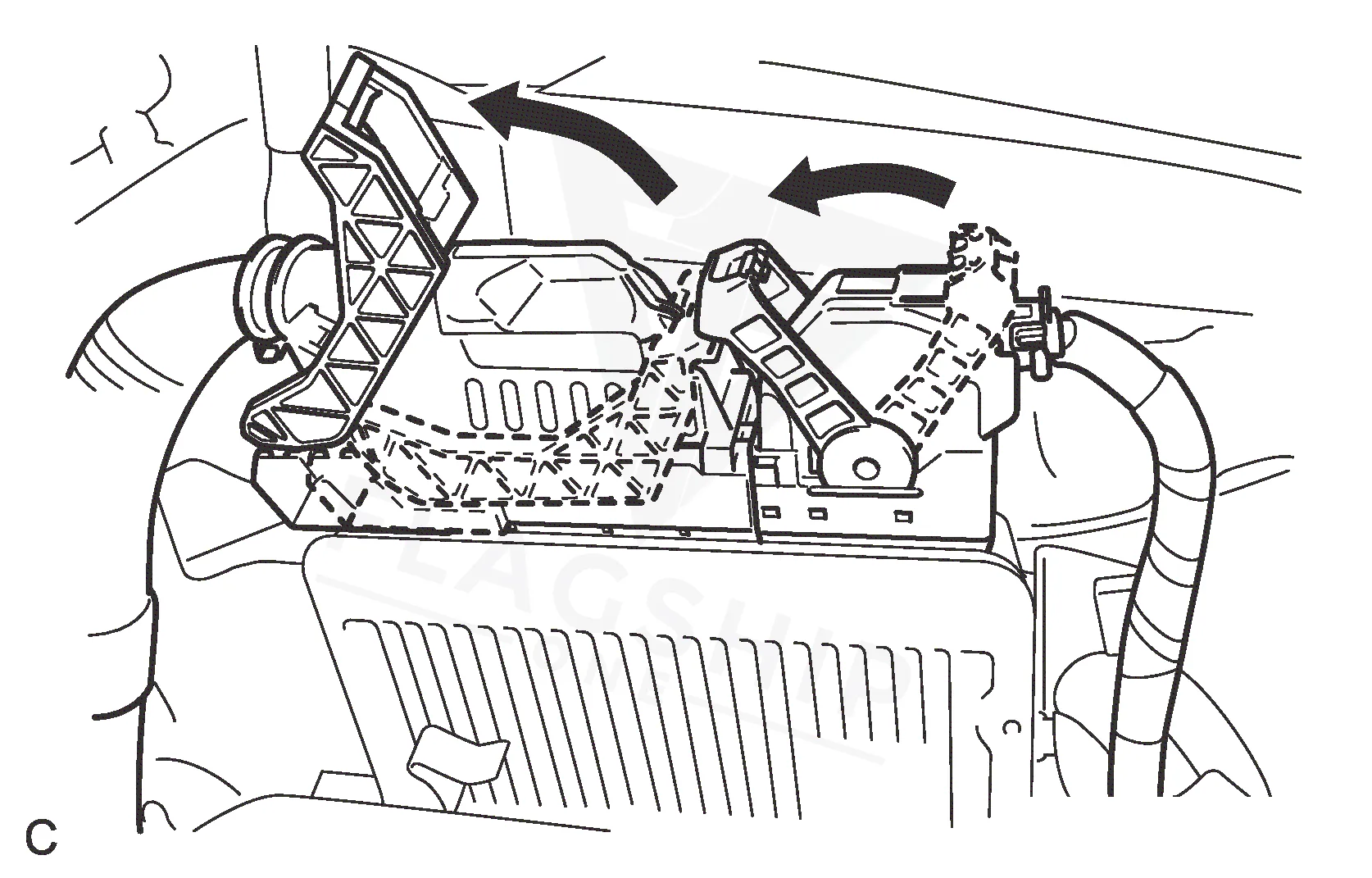

- Disconnect the 2 ECM connectors.
- Remove the nut.
- Remove the screw.
- Loosen the screw and remove the ECM.
- Remove the 2 screws and No.
- Disconnect the wire harness clamp.
- Remove the nut and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After installing a replacement ECM in your 2014 Toyota Camry Hybrid, the factory requires performing Vehicle Identification Number registration to complete the replacement. Some vehicle systems may require initialization following battery reconnection. When you purchase a VIN-programmed replacement unit from Flagship One, the ECM arrives pre-programmed with your specific VIN, eliminating the need for VIN registration and reducing the post-install procedures required at the shop. This means the module is ready to install and operate once the physical replacement is complete, saving labor time and ensuring proper vehicle identification in the computer system.
Symptoms of a Failing PCM
When the ECM in your 2014 Toyota Camry Hybrid fails or develops internal faults, several symptoms may appear. The vehicle may experience no-start conditions where the engine cranks but will not fire, or it may stall unexpectedly during operation. Misfire codes such as P0300 or individual cylinder misfires are common, as the ECM cannot properly control fuel delivery and ignition timing. In some cases, the scan tool may not communicate with the vehicle at all, making diagnosis difficult. Transmission shifting may become erratic because the ECM coordinates shift points with the hybrid system. Your vehicle may also illuminate the check engine light with processor fault detected stored in the module’s internal memory, indicating the ECM has detected an internal failure that requires attention.
Module Trouble Codes on the 2014 Toyota Camry Hybrid
The 2014 Toyota Camry Hybrid may store module-internal trouble codes that indicate ECM health issues. These codes are different from typical diagnostic trouble codes and often point directly to internal module problems rather than sensor or wiring faults.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2014 Toyota Camry Hybrid
- Maintain proper charging system function — a weak or overcharging alternator can stress the ECM electrical system
- Keep battery terminals and ECM connectors clean and free of corrosion
- Avoid jump-starting your vehicle if possible, as voltage spikes can damage sensitive electronics
- Address check engine lights promptly rather than driving with known faults
- Inspect and maintain connector seals to prevent moisture intrusion into the ECM harness
- Use a quality battery with proper voltage specs to avoid electrical system stress
Frequently Asked Questions
Will any ECM work in my 2014 Toyota Camry Hybrid?
No. The ECM must be programmed with your specific Vehicle Identification Number to communicate with your vehicle’s systems. An unprogrammed module will not function and may cause additional issues.
Can I replace the ECM myself on my 2014 Camry Hybrid?
If you have basic automotive repair skills and access to a scan tool for post-install procedures, the physical replacement is straightforward. However, VIN registration may require dealer-level tooling or a qualified tuning facility.
How do I know if my ECM is failing vs having a sensor problem?
If your vehicle has no communication with the scan tool, multiple unrelated trouble codes, or exhibits symptoms that persist after sensor replacement, the ECM itself may be the root cause. A professional diagnosis is recommended.
When your 2014 Toyota Camry Hybrid ECM fails, you have two primary options: repair the existing module or replace it with a refurbished unit. Repair involves returning your original ECM for firmware restoration, while replacement with a pre-programmed unit gets you back on the road faster. Either option for your Camry Hybrid requires proper initialization procedures after installation to ensure all systems function correctly.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Toyota Camry Hybrid with a lifetime warranty, free shipping and no core charge. The full Toyota Camry Hybrid module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module in your 2014 Toyota Camry Hybrid is a critical component that manages your vehicle’s engine and hybrid system operation. Understanding the replacement process, programming requirements, and symptoms of failure helps you make informed decisions about your vehicle’s repair. Whether you choose repair or replacement, addressing ECM issues promptly prevents further damage and gets your Camry Hybrid back to reliable operation.
