2018 Toyota Camry Hybrid ECM Replacement
In the 2018 Toyota Camry Hybrid, the Engine Control Module (ECM) orchestrates fuel delivery, ignition timing, and hybrid power‑train coordination. A malfunction can disrupt engine performance, trigger error codes, and impair hybrid operation.
Quick Summary
- The ECM sits adjacent to the air cleaner assembly.
- Removal requires disconnecting the negative battery cable after engine off.
- Labor time is 0.5 hours for relearn, 1.0 hours for replace/reinstall.
- The P0606 code indicates an ECM failure.
- Flagship One units come VIN‑programmed to eliminate post‑install programming.
You’re probably feeling frustrated when your 2018 Toyota Camry Hybrid stalls, misfires, or displays a P0606 warning. The Engine Control Module is the brain that keeps the hybrid’s gasoline and electric power streams in sync. Replacing it can restore smooth operation, but the process requires careful attention to safety steps and timing. By reading this guide, you’ll learn exactly where the module is located, how long each step takes, and what to expect after installation, so you can plan your repair or replacement confidently.
What the PCM Does in a 2018 Toyota Camry Hybrid
The Engine Control Module in the 2018 Toyota Camry Hybrid is responsible for managing engine and hybrid system functions, including fuel injection, spark timing, and power‑train communication. When it fails, the vehicle may lose power, misfire, or trigger diagnostic codes. The module works closely with the Powertrain Control Module to coordinate the hybrid’s energy flow. Understanding its role helps you recognize symptoms and decide between a repair or a replacement. Engine Control Module Replacement for 2018 Toyota Camry Hybrid for the correct application.
Where the PCM Is Located and What Replacement Involves

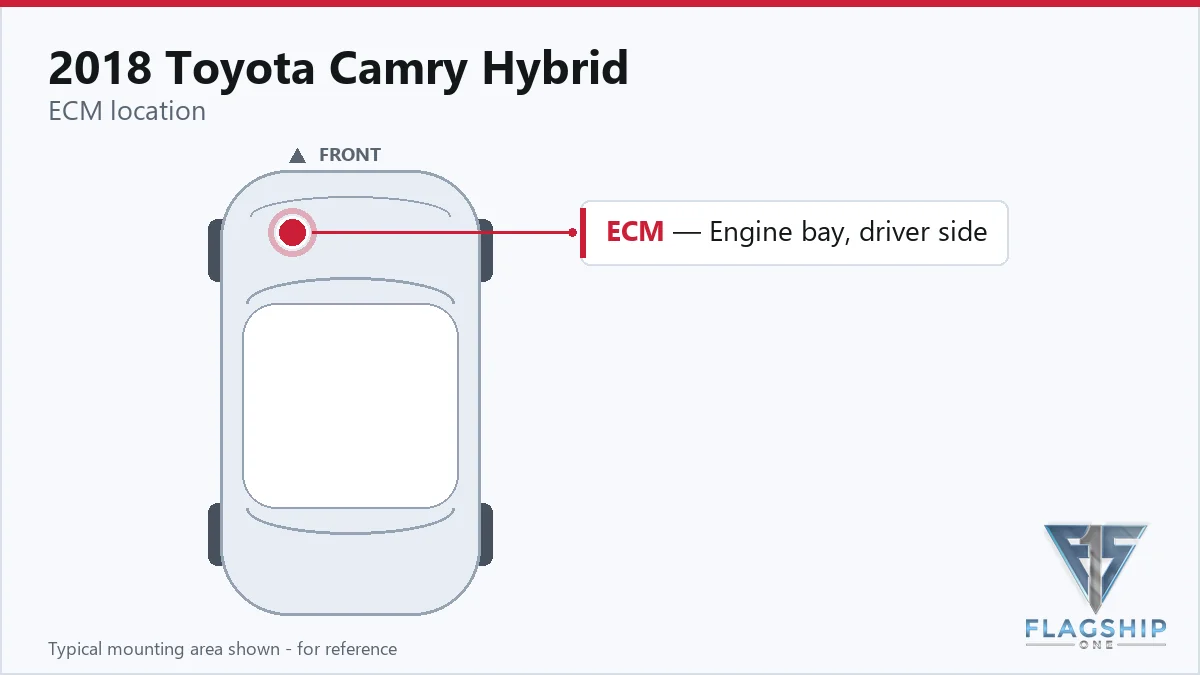

The ECM is located next to the air cleaner assembly, behind the inlet air cleaner and the air cleaner hose. To access it, you must remove the cable from the negative battery terminal, the cool air intake duct seal, the No. 1 engine cover sub‑assembly, the inlet air cleaner assembly, and the air cleaner assembly with hose. The relearn procedure takes 0.5 hours, while a full replace/reinstall takes 1.0 hours. Resetting the module requires 0.3 hours. For the Powertrain Control Module, relearn takes 0.5 hours and replacement takes 1.0 hour.
How to Reach the PCM on the 2018 Toyota Camry Hybrid
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Click here More Info.
- REMOVE COOL AIR INTAKE DUCT SEAL Click here More Info.
- REMOVE INLET AIR CLEANER ASSEMBLY Click here More Info.
- REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE Click here More Info.
- Rotate the 3 levers while pushing the locks, and disconnect the 3 ECM connectors.
- Remove the 2 bolts, nut and ECM.
- Remove the 2 screws and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.0 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | All configurations | 1.0 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the ECM is installed, the factory requires a relearn sequence to recalibrate idle, fuel maps, and hybrid settings. Flagship One units arrive already VIN‑programmed, so you can skip the relearn step and proceed straight to a functional test. VIN‑programmed replacement unit for the correct application.
Symptoms of a Failing PCM
Common signs that the 2018 Toyota Camry Hybrid’s ECM may need attention include engine misfires, unexpected stalling, a failure to start, or a sudden loss of power while driving. These issues often trigger the P0606 code, which points to an internal module fault. If you notice any of these symptoms, it’s wise to have the ECM inspected or replaced to prevent further damage.
Module Trouble Codes on the 2018 Toyota Camry Hybrid
The 2018 Toyota Camry Hybrid’s internal code list includes P0606, indicating an Engine Control Module failure. Monitoring these codes helps pinpoint malfunctioning components.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2018 Toyota Camry Hybrid
- Keep the battery’s negative cable connected while the engine is off to avoid voltage spikes.
- Inspect the ECM’s connector for corrosion and ensure a clean, tight connection.
- Verify the charging system is operating within spec to prevent over‑voltage.
- Address any diagnostic codes promptly to prevent cascading failures.
- Maintain the integrity of the air cleaner seal to protect the ECM from moisture.
- Use proper tools to torque the ECM mounting bolts to specification.
Frequently Asked Questions
What should I do if my 2018 Toyota Camry Hybrid shows a P0606 code?
A P0606 code indicates a problem with the Engine Control Module. Have a qualified technician remove the module, check for corrosion, and either repair or replace it. Using a VIN‑programmed unit can save time on post‑install calibration.
How long does it take to reinstall the ECM on my 2018 Camry Hybrid?
According to the book times, replacing and reinstalling the ECM requires about 1.0 hour, while a relearn procedure takes 0.5 hour. These times include removing the necessary components and securing the module.
Do I need to reset the Powertrain Control Module after replacing the ECM?
Yes, the Powertrain Control Module also requires a relearn of 0.5 hour after an ECM replacement to ensure the hybrid system remains synchronized.
Whether you choose a professional repair or a refurbished replacement, understanding the ECM’s location and the required steps can help you make an informed decision. For the 2018 Toyota Camry Hybrid, a VIN‑programmed unit can reduce labor and eliminate the need for post‑install relearn procedures.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2018 Toyota Camry Hybrid with a lifetime warranty, free shipping and no core charge. The full Toyota Camry Hybrid module lineup covers other engine configurations as well.
