2014 Lincoln Navigator PCM and ECM Replacement Guide
The powertrain control module (PCM) and engine control module (ECM) serve as the central computer for your Navigator’s 5.4L V8 engine, managing fuel injection, ignition timing, emissions controls, and transmission shifting. Module failure typically stems from internal electrical faults, voltage spikes, or thermal stress.
Quick Summary
- PCM and ECM failures often manifest as no-start conditions or intermittent stalling
- Module replacement requires programming to match your specific vehicle identification number
- Factory relearn procedures take approximately 0.5 hours after installation
- P0606 indicates an internal processor fault within the control module
- Pre-programmed replacement units eliminate dealer programming delays
When your 2014 Lincoln Navigator experiences starting problems, hesitation, or unexpected stalling, the powertrain control module often lies at the center of the issue. This comprehensive guide explains how the PCM and ECM function within your vehicle, the symptoms that indicate potential failure, and what replacement options exist for do-it-yourselfers and professional technicians alike. Understanding the distinction between these two control modules and their specific roles in your Navigator’s 5.4-liter V8 engine helps you make informed decisions about repairs. Whether you are diagnosing a check engine light, addressing a no-start condition, or simply researching preventive maintenance, this guide provides the technical foundation you need. The information covers replacement procedures, programming requirements, and practical steps you can take to protect your vehicle’s electronic control systems from premature failure.
What the PCM Does in a 2014 Lincoln Navigator
The powertrain control module in your 2014 Lincoln Navigator functions as the primary brain for the engine and transmission, continuously monitoring sensors throughout the drivetrain and adjusting operating parameters in real time. This module receives input from the mass airflow sensor, throttle position sensor, coolant temperature sensor, and dozens of other sources, then calculates optimal fuel delivery, spark advance, and transmission shift points for the 5.4L V8 engine. The engine control module handles primarily engine-specific functions, while the PCM integrates transmission control, creating a unified management system for your vehicle’s powertrain. When either module fails, the vehicle may enter limp-home mode, refuse to start, or display multiple diagnostic trouble codes. Replacement engine computers for the Navigator must be programmed with your specific VIN and vehicle calibration data to restore proper functionality. The modules communicate through the controller area network (CAN) bus, sharing data with other vehicle systems including the anti-lock brakes, climate control, and instrument cluster. Without correct programming, replacement modules cannot communicate with these downstream systems, leaving your Navigator inoperable.
Flagship One keeps Lincoln Navigator replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves
The powertrain control module on your 2014 Lincoln Navigator is located in the passenger-side engine compartment, mounted to the firewall near the windshield. Access requires removing the engine cover and disconnecting the battery negative terminal before beginning work. The module sits inside a protective enclosure that must be unbolted, with all electrical connectors carefully disconnected to avoid damaging the wiring harness. Installation reverses this process, with the replacement unit secured using the original mounting hardware. Book time for powertrain control module removal and replacement is 0.8 hours, while engine control module R&R carries the same 0.8-hour labor allocation. After physical installation, a relearn procedure must be performed to allow the new module to adapt to your vehicle’s specific sensors and actuators. This post-install relearn process requires approximately 0.5 hours of labor according to factory specifications. Always verify that all electrical connections are fully seated and protected from moisture contamination before reassembling the engine cover.

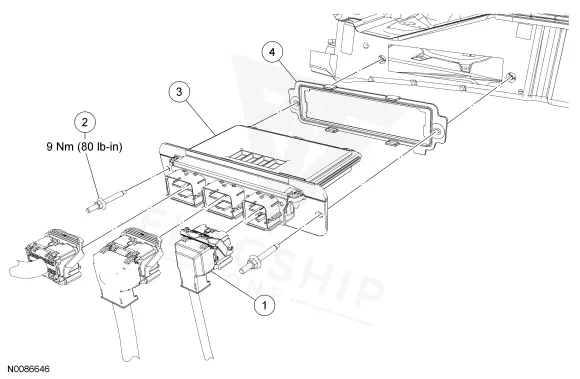

How to Reach the PCM on the 2014 Lincoln Navigator
- Disconnect the battery ground cable.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 stud bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing either the PCM or ECM in your 2014 Lincoln Navigator, the factory procedure requires a relearn process that synchronizes the new module with your vehicle’s unique calibration and VIN. This procedure establishes communication between the control module and every sensor and actuator in the engine and transmission systems. During this time, the module learns adaptive values for fuel trims, idle speed, and transmission shift characteristics specific to your engine. A VIN-programmed replacement unit from Flagship One arrives pre-loaded with your specific vehicle identification number and the correct calibration for your 5.4L Navigator, eliminating the need for time-consuming dealer programming sessions. However, even with pre-programmed units, the factory relearn procedure must still be performed to establish those adaptive learning values. This ensures the module properly integrates with your specific engine’s characteristics and restores driveability to factory specifications. The relearn process typically requires the engine to be running for several minutes while the system performs self-diagnostics.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the PCM or ECM begins failing on your 2014 Lincoln Navigator, several distinct symptoms typically emerge that help distinguish electronic control problems from other drivetrain issues. A no-start condition represents one of the most common presentations, where the engine cranking normally but fails to ignite due to incorrect fuel or spark delivery from the failed module. Intermittent stalling while driving often occurs, particularly at idle or during low-speed maneuvers, as the module loses the ability to maintain proper idle speed and fuel mixture. Multiple diagnostic trouble codes may appear simultaneously, including P0606 which specifically indicates an internal processor fault within the control module itself. Misfire codes such as P0300 through P0308 frequently accompany module failures, as the compromised control unit cannot properly manage ignition timing and fuel injection. In some cases, the scan tool may fail to communicate with the module entirely, preventing diagnostic access. Transmission shifting issues also manifest when the PCM portion handling transmission control loses functionality, resulting in harsh shifts or failure to engage gears properly.
Module Trouble Codes on the 2014 Lincoln Navigator
Your 2014 Lincoln Navigator has documented module-internal trouble codes that indicate specific internal failures within the powertrain or engine control module. These codes differ from standard sensor faults because they point to problems within the module hardware itself rather than external components.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2014 Lincoln Navigator
- Maintain consistent charging system health by testing battery voltage regularly and replacing the battery before excessive degradation occurs
- Ensure all ground connections to the engine and chassis remain clean and tight to prevent voltage fluctuations
- Avoid jump-starting other vehicles or using boost packs without proper polarity protection to prevent voltage spikes
- Address diagnostic trouble codes promptly rather than allowing them to persist, as continued operation with a failing module can cause collateral damage
- Keep engine compartment connector seals intact and periodically inspect for corrosion or moisture intrusion
- Install a surge protector on the battery terminals if your vehicle experiences frequent electrical disturbances
Frequently Asked Questions
Can I replace the PCM on my 2014 Lincoln Navigator myself, or do I need a dealer?
While professional installation is recommended due to the specialized equipment required, a mechanically inclined DIYer can perform the replacement if they have access to a scan tool capable of performing the relearn procedure. Pre-programmed replacement units eliminate the need for dealer programming equipment.
How do I know if my Navigator has a PCM or ECM problem versus a sensor failure?
Diagnostic trouble codes beginning with P0600 through P0699 typically indicate module internal faults, while sensor-related codes point to specific component failures. A P0606 code specifically indicates processor failure within the control module itself rather than an external sensor issue.
Will a used PCM from another Lincoln Navigator work in my vehicle?
No, used control modules must be programmed with your specific VIN and calibration data to function in your vehicle. Attempting to install an unprogrammed unit will result in no-start conditions and potential damage to the module or vehicle systems.
What causes the P0606 code to set on a 2014 Lincoln Navigator?
The P0606 code indicates an internal memory or processor fault within the control module. This can result from voltage spikes, thermal cycling over time, moisture contamination, or simply the natural degradation of internal electronic components over years of operation.
How long does the PCM relearn procedure take after replacement?
The factory relearn procedure requires approximately 0.5 hours of labor. This involves running the engine at operating temperature while the module performs self-calibration and learns adaptive values specific to your engine’s characteristics.
When your 2014 Lincoln Navigator requires PCM or ECM replacement, you face a choice between a new or refurbished control module. New units come with full warranties and represent the most reliable option, while quality refurbished replacements offer cost savings while still providing functional reliability. Flagship One specializes in providing VIN-programmed replacement units specifically configured for your Navigator, eliminating the guesswork and expense of dealer programming. Consider your budget, timeline, and warranty preferences when selecting the best replacement option for your situation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Lincoln Navigator with a lifetime warranty, free shipping and no core charge. The full Lincoln Navigator module lineup covers other engine configurations as well.
Final Thoughts
Your 2014 Lincoln Navigator relies on properly functioning PCM and ECM modules to maintain reliable operation of its 5.4L V8 engine and transmission systems. Understanding the symptoms of module failure, the programming requirements after replacement, and the preventive measures that extend module life helps you make informed decisions about maintaining your vehicle. Whether you choose professional installation or tackle the replacement yourself, addressing control module issues promptly prevents secondary damage and keeps your Navigator running smoothly.
