2012 Lincoln Navigator PCM Replacement
The Powertrain Control Module manages engine timing, fuel delivery, and transmission shifts. In the 2012 Lincoln Navigator, failure can cause misfires, erratic acceleration, or loss of power.
Quick Summary
- Powertrain Control Module (PCM) governs engine and transmission operation.
- Replacement requires 0.5 hours for relearn, 0.8 hours for R&R.
- Flagship One PCM units come VIN-programmed, skipping factory programming.
- TSB 11-10-06 addresses A/C inoperability; TSB 13-05-07 covers MIL illumination for specific codes.
You may notice your 2012 Lincoln Navigator behaving oddly—rough idling, sudden stalls, or the check engine light flashing. These symptoms often stem from the Powertrain Control Module. Replacing or repairing this module restores proper engine timing, fuel management, and transmission shifts. By following this guide, you’ll understand the module’s role, the steps needed for a smooth replacement, and how to keep your Navigator running reliably.
What the PCM Does in a 2012 Lincoln Navigator
The PCM is the heart of the 2012 Lincoln Navigator’s engine management system. It processes sensor data to adjust fuel injection, ignition timing, and transmission shift points. replacement Powertrain Control Module for the 2012 Lincoln Navigator The module’s health is vital; a malfunction can lead to reduced performance, increased fuel consumption, or even engine shutdown.
Where the PCM Is Located and What Replacement Involves
The PCM sits beneath the steering column on the driver side. Access involves removing the steering column covers, disconnecting the diagnostic connector, and unbolting the module housing. The book times indicate a 0.8‑hour replacement and a 0.5‑hour relearn, ensuring a quick return to service.

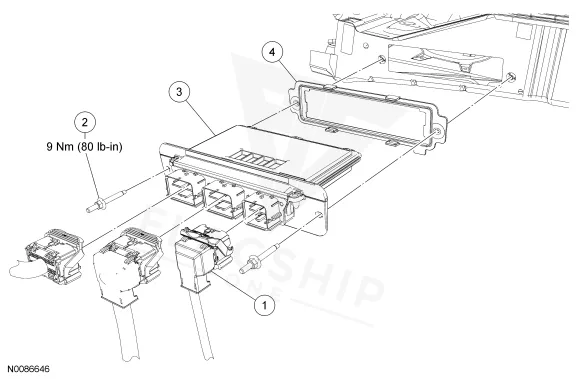

How to Reach the PCM on the 2012 Lincoln Navigator
- Disconnect the battery ground cable.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 stud bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing the new PCM, the factory procedure requires flashing the EEPROM and updating the VID block. Flagship One units arrive VIN‑programmed, so the factory programming steps are already completed. a VIN-programmed replacement unit This eliminates the need for additional reprogramming.
Symptoms of a Failing PCM
When the PCM is compromised, you may experience no‑start conditions, intermittent stalling, or misfire codes like P0606. These symptoms can also manifest as dead communication with the diagnostic tool, unpredictable shifting, or a sudden drop in engine power. A common fault code that points to internal PCM issues is P0606.
Module Trouble Codes on the 2012 Lincoln Navigator
Internal trouble codes for the 2012 Lincoln Navigator’s PCM highlight issues such as memory errors or communication failures.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
TSB 11-10-06 recommends a calibration update for A/C systems on vehicles built before 9/21/2011. TSB 13-05-07 addresses MIL illumination caused by codes P0135 and P0155 on vehicles built before 11/31/2011.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 11-10-06 | A/C INOPERATIVE – BUILT ON OR BEFORE 9/21/2011 – CALIBRATION UPDATE | — |
| 13-05-07 | BUILT ON OR BEFORE 11/31/2011 – DTCS P0135 AND P0155 – MALFUNCTION INDICATOR LAMP (MIL) ILLUMIN | — |
Protecting the PCM in Your 2012 Lincoln Navigator
- Maintain a healthy charging system to avoid voltage spikes.
- Keep all PCM connectors clean and free of corrosion.
- Avoid jump‑starting with excessive voltage.
- Address any diagnostic codes promptly.
- Ensure connector seals remain intact to prevent moisture ingress.
Frequently Asked Questions
Can I replace the PCM on my 2012 Lincoln Navigator myself?
The replacement process involves removing steering column covers and disconnecting diagnostic connectors, which can be challenging without proper tools. If you are comfortable with complex vehicle electronics, you might attempt it, but professional service is recommended.
What happens if the PCM fails during operation?
A failing PCM can cause engine misfires, stalling, or a sudden loss of power. The vehicle may also trigger a check engine light and store diagnostic trouble codes.
Will the new PCM work with my vehicle’s A/C system?
Yes, the PCM controls A/C compressor engagement. However, TSB 11-10-06 advises a calibration update for vehicles built before 9/21/2011 to ensure A/C function.
Whether you choose a certified repair or a refurbished replacement, the goal is to restore your 2012 Lincoln Navigator’s performance. Replacements are straightforward, and professional service guarantees a quick return to the road.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Lincoln Navigator with a lifetime warranty, free shipping and no core charge. The full Lincoln Navigator module lineup covers other engine configurations as well.
Final Thoughts
Your 2012 Lincoln Navigator relies on the PCM for smooth engine and transmission operation. Addressing PCM issues promptly will keep it running efficiently. Consider a trusted repair or a high‑quality refurbished unit for peace of mind.
