2014 Kia Cadenza ECM Replacement and Relearn Guide
In the 2014 Kia Cadenza, the engine control module manages fuel delivery, ignition timing and emissions. A malfunction can interrupt powertrain operation, trigger diagnostic codes and cause drivability problems.
Quick Summary
- Factory labor time for ECM removal and reinstall is under one hour.
- Mounting bolts require a torque range of about 9.8 to 11.8 N·m.
- VIN must be programmed into the new ECM before it will run.
- P0605 indicates an internal ECM communication fault.
When your 2014 Kia Cadenza experiences intermittent power loss or diagnostic warnings, the engine control module may be the culprit. This guide explains how the ECM functions, where it sits, what the factory expects after replacement, and how Flagship One units simplify the process. You will learn the steps needed to remove, install and verify the module so your vehicle returns to normal performance.
What the PCM Does in a 2014 Kia Cadenza
The engine control module in a 2014 Kia Cadenza acts as the brain for the powertrain, interpreting sensor data to control fuel injection, spark timing and emissions. Its proper operation is essential for smooth acceleration and fuel efficiency. replacement engine control modules for the 2014 Kia Cadenza ensure the vehicle meets factory specifications and avoids unexpected shutdowns.

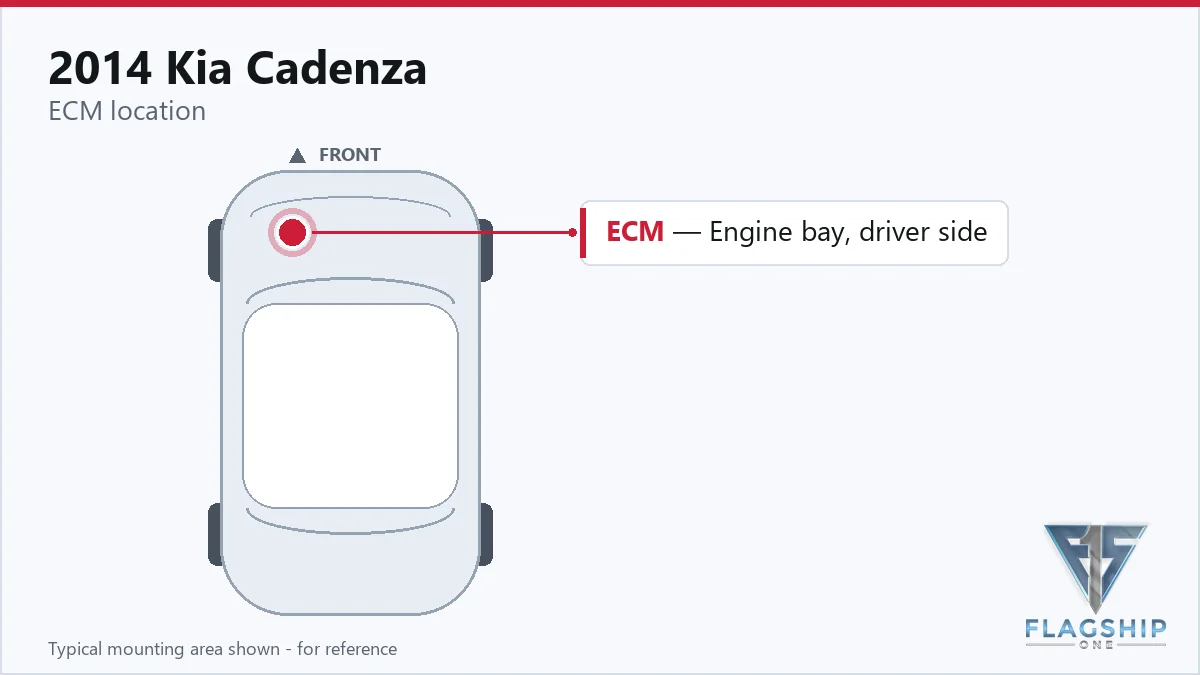

Where the PCM Is Located and What Replacement Involves
The ECM is positioned next to the air cleaner assembly, making it reachable once the intake components are removed. The factory removal guide directs you to the module adjacent to that housing. Labor times list 0.5 hours for removal and another 0.5 hours for reinstall, plus an additional 0.7 hours if the powertrain control module must also be swapped. Fasteners are tightened within a range of 9.8 to 11.8 N·m to avoid over‑torquing the mounting points.
How to Reach the PCM on the 2014 Kia Cadenza
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the cover.
- Disconnect the ECM connector.
- Remove the air cleaner assembly.
- Remove the battery tray.
- Remove the ECM bracket installation bolts and nut.
- After removing the installation nuts, remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the ECM is fitted, the factory procedure requires programming the vehicle identification number into the unit before operation. Flagship One supplies a VIN‑programmed replacement unit, eliminating the need for on‑site coding and reducing installation time. Once installed and torqued, the vehicle can be started without further electronic configuration.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
A failing ECM in a 2014 Kia Cadenza may cause the engine to refuse to start, stall unexpectedly, or run rough under load. You might also see loss of power‑train communication on a scan tool, and the check engine light could illuminate. The specific fault internal ECM communication error often appears when the module cannot exchange data with other control units.
Module Trouble Codes on the 2014 Kia Cadenza
The following diagnostic trouble code is commonly associated with ECM issues in this model:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Technical Service Bulletin TRA056 addresses a shift‑logic update for the automatic transaxle, while ENG137 Rev 2 provides a procedure for extracting California emissions data from the ECU. Both bulletins relate to ECM software and calibration.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | TSB • Automatic Transaxle • [TRA056] TCM Upgrade – Shift Logic Improvement (TRA 056) | — |
| — | TSB • Emissions Control System • [ENG137] Data Collection: Extract California Emission Data Fro | — |
Protecting the PCM in Your 2014 Kia Cadenza
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and connector pins regularly.
- Prevent voltage spikes by using proper jump‑start techniques.
- Address any diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
How long does it take to replace the ECM on a 2014 Kia Cadenza?
The factory book lists roughly one hour for removal and reinstall combined, plus additional time if the powertrain control module is also swapped.
Do I need special tools to reinstall the ECM on my 2014 Kia Cadenza?
A torque wrench capable of setting 9.8 to 11.8 N·m is required to secure the mounting bolts to the correct specification.
Can I use a used ECM in a 2014 Kia Cadenza?
A used unit must be reprogrammed with the vehicle’s VIN; otherwise it will not communicate correctly with the vehicle’s systems.
When the ECM needs attention on a 2014 Kia Cadenza, you can choose a professional repair or install a refurbished replacement. Both options restore engine management, but a Flagship One unit arrives pre‑programmed and tested, reducing shop time and ensuring compliance with factory torque and VIN requirements.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Kia Cadenza with a lifetime warranty, free shipping and no core charge. The full Kia Cadenza module lineup covers other engine configurations as well.
Final Thoughts
Replacing the engine control module in your 2014 Kia Cadenza can restore reliable performance. Consider a Flagship One replacement to simplify programming and meet factory standards, then get back on the road with confidence.
