2013 Lexus CT200h PCM and ECM Replacement Guide
The PCM (Powertrain Control Module) and ECM (Engine Control Module) serve as the central computer for your 2013 Lexus CT200h hybrid system, managing engine operations, hybrid coordination, and emissions controls. When these modules fail, your vehicle may experience drivability issues, hybrid system warnings, or no-start conditions.
Quick Summary
- The 2013 Lexus CT200h uses a unified powertrain control system managing both engine and hybrid components
- Module replacement requires access through the inverter assembly area with a 2.7 hour book time
- P0606 is a documented internal processor code for this vehicle indicating module self-test failure
- The negative auxiliary battery terminal requires a waiting period after power switch-off before disconnection
If your 2013 Lexus CT200h is displaying warning lights, experiencing hybrid system faults, or refusing to start, the Powertrain Control Module or Engine Control Module may be the culprit. These critical computers manage your vehicle’s engine operations, hybrid coordination, and virtually every sensor input throughout the powertrain. This guide explains what these modules do, common failure symptoms, and what replacement involves so you can make informed repair decisions for your Lexus CT200h.
What the PCM Does in a 2013 Lexus CT 200h
The Engine Control Module in your 2013 Lexus CT200h functions as the primary processor for the entire hybrid powertrain system. This computer handles engine fuel injection timing, throttle response, hybrid battery coordination, and emissions control systems. Because the CT200h operates as a hybrid, the ECM must also communicate continuously with the inverter assembly to manage power flow between the gasoline engine and electric motor. A failing module can cause your vehicle to enter limp mode, display multiple warning lights, or fail to start entirely. When the internal processor detects a fault during self-diagnostics, trouble codes such as P0606 are stored, indicating the module has identified an internal malfunction that requires attention. If you need replacement engine computers for the Lexus CT200h, understanding this module’s role is essential for proper diagnosis.
What Replacing the PCM Involves
How to Reach the PCM on the 2013 Lexus CT 200h
- Remove rear no.
- REMOVE REAR DECK FLOOR BOX More Info REMOVE REAR NO.
- REMOVE DECK FLOOR BOX RH More Info REMOVE REAR FLOOR BOARD UPPER NO.
- Disconnect cable from negative auxiliary battery terminal.
- Remove inverter with converter assembly.

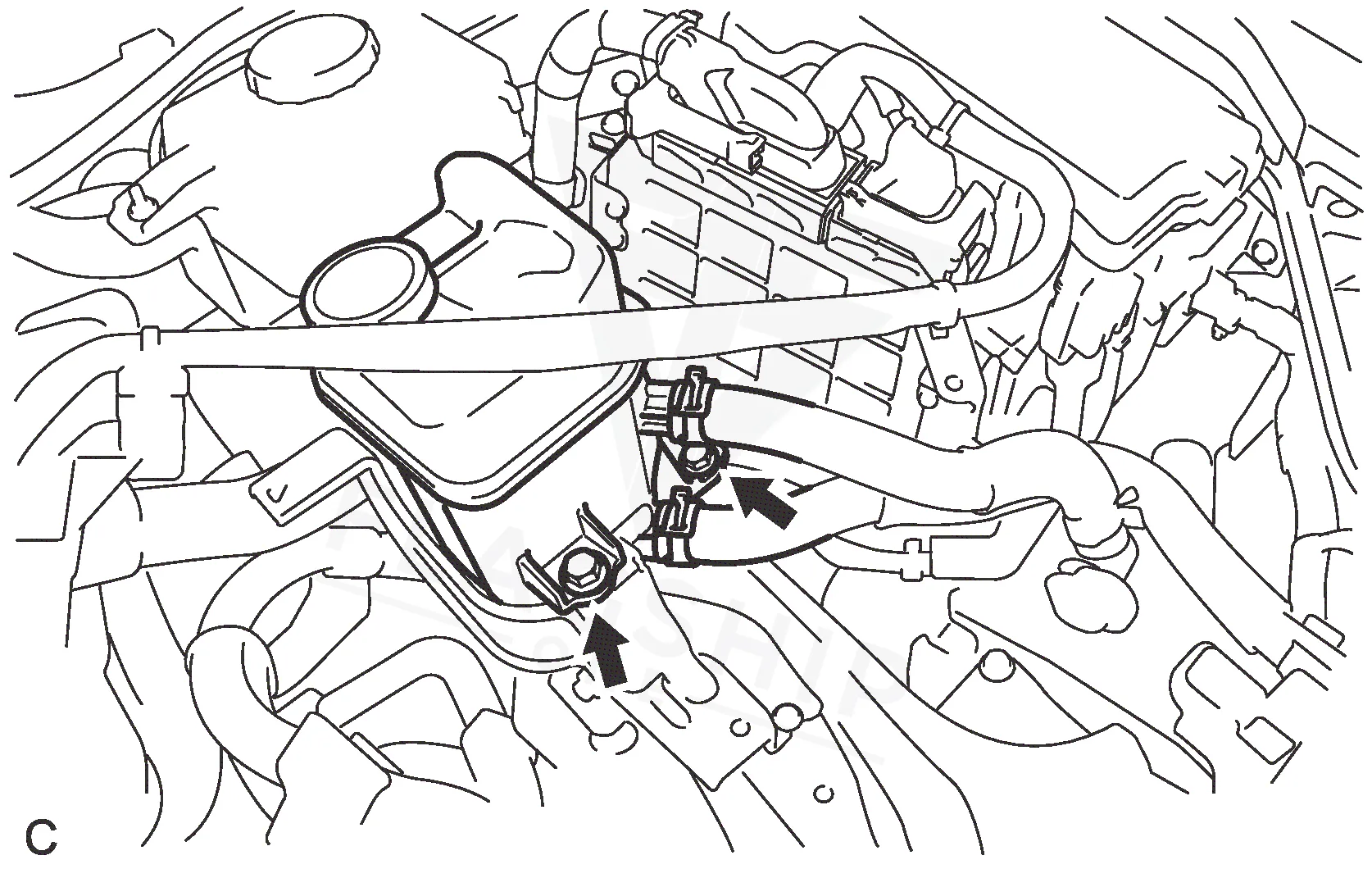

- Remove the 2 bolts and separate the inverter reserve tank assembly.
- Disconnect the 2 ECM connectors.
- Disconnect the wire harness clamp.
- Remove the 2 bolts and ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 2.7 hr |
| Engine Control Module R&R | All configurations | 2.7 hr |
Programming Requirements After Replacement
After installing a new control module in your 2013 Lexus CT200h, the factory procedure requires VIN programming and system initialization using dealer-level diagnostic software. The new module must be matched to your vehicle’s specific identification and then the hybrid system must perform a relearn procedure to adapt to the new computer. Without this programming step, your vehicle may not start or hybrid functions will be impaired. Flagship One solves this by shipping their replacement units pre-programmed with your VIN, meaning the critical programming step is already completed before the module arrives. You or your technician will still need to perform the hybrid system relearn procedure using a scan tool, but the VIN programming burden is eliminated.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the ECM or PCM fails on a 2013 Lexus CT200h, common symptoms include a no-start condition where the vehicle’s systems appear dead or the engine cranks but won’t run. Many owners report multiple warning lights illuminating simultaneously—the check engine light, hybrid system warning, and traction control indicator often appear together. Drivability issues such as stalling, rough idle, or hesitation during acceleration frequently accompany module failures. In some cases, the vehicle may run but exhibit erratic behavior including uncontrolled throttle response or transmission shifting problems. A scan tool may show no communication with the ECM or display processor self-test failure indicating the module has detected an internal fault that requires replacement.
Module Trouble Codes on the 2013 Lexus CT 200h
The 2013 Lexus CT200h has documented module-internal trouble codes that indicate processor-level failures within the control module itself. These codes differ from standard sensor or circuit codes because they point to internal module problems rather than external component faults. The P0606 code specifically indicates a processor watch-dog timer fault, meaning the module’s internal computer has failed its self-test diagnostic.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2013 Lexus CT 200h
- Maintain healthy charging system voltage—weak or failing auxiliary battery can cause voltage spikes that damage the control module
- Ensure all ground connections to the engine and chassis remain clean and tight to prevent electrical noise interference
- Avoid jump-starting from high-voltage sources or incorrect polarity connections that can send voltage surges to sensitive electronics
- Address any stored trouble codes promptly rather than ignoring warning lights, as continued operation with a faulty module can cause cascading damage
- Keep electrical connector seals intact and protected from moisture intrusion, especially in the inverter assembly area where the module is located
- Use quality fuel and maintain proper engine operating temperatures to reduce stress on the control module’s emissions and fuel delivery functions
Frequently Asked Questions
Will a used PCM from a salvage yard work in my 2013 Lexus CT200h?
A used module will require dealer-level VIN programming before it will function in your vehicle. Even after programming, there’s no way to verify the module’s internal health, and it may fail soon after installation. Purchasing a refurbished unit from a reputable supplier that tests and programs the module before shipping is typically the better value.
Can I drive my CT200h with a failing ECM or is it dangerous?
Continuing to drive with a failing control module is not recommended. Your vehicle may enter limp mode unexpectedly, stall while driving, or lose hybrid propulsion capability. In some cases, the engine may not restart once shut off. Having the vehicle towed to a repair facility is the safest approach when symptoms appear.
Why does the battery disconnection require a waiting period on this vehicle?
The 2013 Lexus CT200h has a hybrid system that stores energy in the high-voltage battery pack. After turning off the power switch, the system requires time to discharge residual energy from the capacitors. Disconnecting the battery too quickly can cause voltage spikes that damage sensitive electronic components including the control modules.
When your 2013 Lexus CT200h requires a new control module, you have two primary repair paths. Purchasing a brand new OEM module from the dealer is the most expensive option but ensures a fresh unit with full warranty coverage. Refurbished replacement units offer significant cost savings and typically come pre-programmed with your VIN, eliminating a major expense at the repair shop. For the CT200h, the inverter assembly removal makes this a moderate-difficulty job that most professional shops can complete within the 2.7 hour book time. Consider your budget, warranty preferences, and how long you plan to keep the vehicle when making your decision.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Lexus CT 200h with a lifetime warranty, free shipping and no core charge. The full Lexus CT 200h module lineup covers other engine configurations as well.
Final Thoughts
The 2013 Lexus CT200h relies on its Engine Control Module for managing both traditional engine functions and the hybrid system’s complex coordination. When this module fails, prompt diagnosis and replacement restores your vehicle’s reliability. Whether you choose OEM or aftermarket, ensure the replacement unit is properly programmed for your specific VIN to avoid additional repair visits. With correct installation and programming, your CT200h can return to full operation.
