2012 Lexus CT 200h PCM/ECM Replacement: Complete Guide
The Powertrain Control Module (PCM) and Engine Control Module (ECM) in your 2012 Lexus CT 200h manage engine operation, hybrid system coordination, and emissions controls. Internal processor faults, indicated by code P0606, typically cause complete module failure requiring replacement.
Quick Summary
- Factory book time for PCM R&R is 2.7 hours on the 2012 Lexus CT 200h
- ECM replacement requires the same 2.7 hour labor allocation
- Access requires disconnecting the negative auxiliary battery cable after the prescribed wait time
- The inverter with converter assembly must be removed to reach the module
- Flagship One replacement units arrive VIN-programmed, eliminating dealer programming steps
If your 2012 Lexus CT 200h has stopped running or is exhibiting drivability problems that point to a failed control module, you are dealing with a common but serious issue. The PCM and ECM in this hybrid vehicle control critical engine functions and must be properly replaced following factory procedures. This guide covers what the module does, typical failure symptoms, the correct replacement procedure, and what programming is required after installation. Understanding these facts helps you make informed decisions about repair options and avoid unnecessary expenses.
What the PCM Does in a 2012 Lexus CT 200h
The Powertrain Control Module and Engine Control Module in your 2012 Lexus CT 200h serve as the central computer for the vehicle’s 1.8L engine and hybrid system. This module processes input from dozens of sensors and commands fuel injection, ignition timing, throttle response, and hybrid coordination. When the internal processor fails, the module can no longer perform these essential functions, leaving the vehicle inoperable. Replacement requires obtaining a replacement engine computers for the CT 200h that matches the factory specifications for your specific vehicle.
What Replacing the PCM Involves
How to Reach the PCM on the 2012 Lexus CT 200h
- Remove rear no.
- REMOVE REAR DECK FLOOR BOX More Info REMOVE REAR NO.
- REMOVE DECK FLOOR BOX RH More Info REMOVE REAR FLOOR BOARD UPPER NO.
- Disconnect cable from negative auxiliary battery terminal.
- Remove inverter with converter assembly.

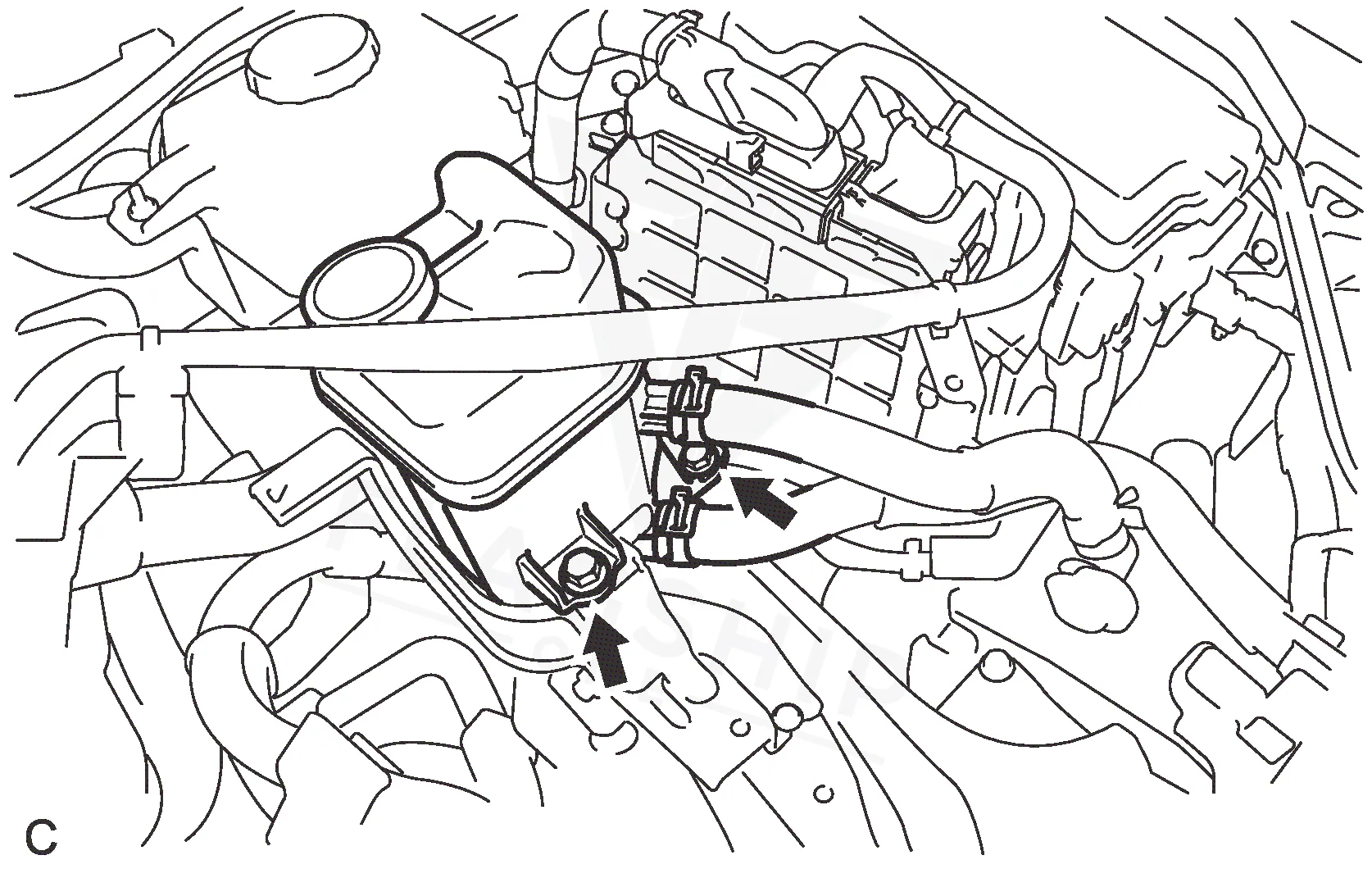

- Remove the 2 bolts and separate the inverter reserve tank assembly.
- Disconnect the 2 ECM connectors.
- Disconnect the wire harness clamp.
- Remove the 2 bolts and ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 2.7 hr |
| Engine Control Module R&R | All configurations | 2.7 hr |
Programming Requirements After Replacement
After replacing the control module on your 2012 Lexus CT 200h, the factory procedure requires programming and calibration using dealer-level diagnostic equipment. This process programs the new module with vehicle-specific data including the VIN, immobilizer codes, and hybrid system parameters. Flagship One units ship pre-programmed with your vehicle’s VIN already configured, meaning the dealer programming step is effectively completed before the module arrives. You will still need to perform basic verification tests after installation to confirm proper operation.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the PCM or ECM fails on a 2012 Lexus CT 200h, several distinct symptoms typically appear. The vehicle may fail to start entirely or stall unexpectedly during operation. Engine misfire codes such as P0300 and P0301 frequently set alongside module fault codes. Scan tools often cannot communicate with the module, making diagnostic access impossible. Hybrid system functions may be affected, causing erratic shifting or complete transmission engagement failure. The processor malfunction code indicates the module’s internal processor has detected a fault and locked normal operations.
Module Trouble Codes on the 2012 Lexus CT 200h
The codes below point to the PCM itself rather than to a sensor or circuit it monitors. Each one links through to its full diagnostic guide.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2012 Lexus CT 200h
- Maintain healthy charging system voltage to prevent low-power conditions that stress the module
- Ensure all ground connections remain clean and tight at the battery and chassis points
- Avoid jump-starting from high-voltage sources that can send voltage spikes to sensitive electronics
- Address any stored diagnostic codes promptly before they cascade into module damage
- Inspect and maintain connector seals to prevent moisture intrusion that causes corrosion
- Use quality replacement parts that meet or exceed factory specifications
Frequently Asked Questions
Will any 2012 Lexus CT 200h PCM or ECM work for my vehicle?
No. The replacement module must be compatible with your specific vehicle’s VIN, hybrid system configuration, and emission standards. Units from other model years or different regional specifications will not function correctly.
Can I replace the PCM or ECM on my 2012 Lexus CT 200h myself?
Technically skilled DIYers with proper diagnostic tools can perform the replacement, but the access procedure requires removing the inverter assembly. The factory-specified 2.7 hour labor time reflects moderate complexity. Professional installation is recommended for most owners.
Do I need to visit the dealer after replacing the control module?
If you purchase a unit from Flagship One that arrives VIN-programmed, the dealer programming step is handled before the module ships. You will still need basic post-installation verification to ensure no remaining fault codes and proper operation.
When your 2012 Lexus CT 200h requires a new control module, you have two primary options: repair the existing unit or install a refurbished replacement. Repair involves sending your module out for service, while refurbished replacements come ready to install. Flagship One specializes in providing a VIN-programmed replacement unit configured specifically for your vehicle, reducing installation complexity and eliminating dealer programming delays.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Lexus CT 200h with a lifetime warranty, free shipping and no core charge. The full Lexus CT 200h module lineup covers other engine configurations as well.
Final Thoughts
The 2012 Lexus CT 200h relies on its PCM and ECM for proper operation of the 1.8L engine and hybrid system. When failure occurs, following factory-correct replacement procedures ensures reliable operation. Whether you choose professional installation or handle it yourself, understanding the procedure helps you make informed decisions about your vehicle’s repair.
