2013 GMC Acadia Engine Control Module (ECM) Repair Guide
In the 2013 GMC Acadia the Engine Control Module manages fuel delivery, ignition timing and emission controls. A failure often results in loss of engine power, erratic idle or complete no‑start, and may trigger internal fault codes that indicate processor or communication problems.
Quick Summary
- ECM removal typically takes about 0.9 hours of labor.
- Relearn of the Powertrain Control Module usually requires 0.5 hours.
- A new ECM must be reprogrammed with vehicle‑specific calibration.
- Electrostatic discharge can damage the ECM if connector pins are touched.
When the engine control module in your 2013 GMC Acadia stops communicating correctly, the vehicle may refuse to start or run poorly. This guide explains what the ECM does, how to access and replace it, and what programming steps are needed afterward. By following the outlined procedure you can avoid common pitfalls and understand why a properly programmed unit matters for reliable operation.
What the PCM Does in a 2013 GMC Acadia
The Engine Control Module in the 2013 GMC Acadia acts as the brain for the powertrain, processing sensor data to control fuel injection, spark timing and emission functions. It also coordinates with the transmission control unit to ensure smooth shifting. Because the ECM directly influences drivability, any internal fault can cause a range of performance issues. Understanding its role helps you appreciate why replacement must be done carefully. replacement engine computers for the 2013 GMC Acadia ensures the vehicle receives the correct software version.

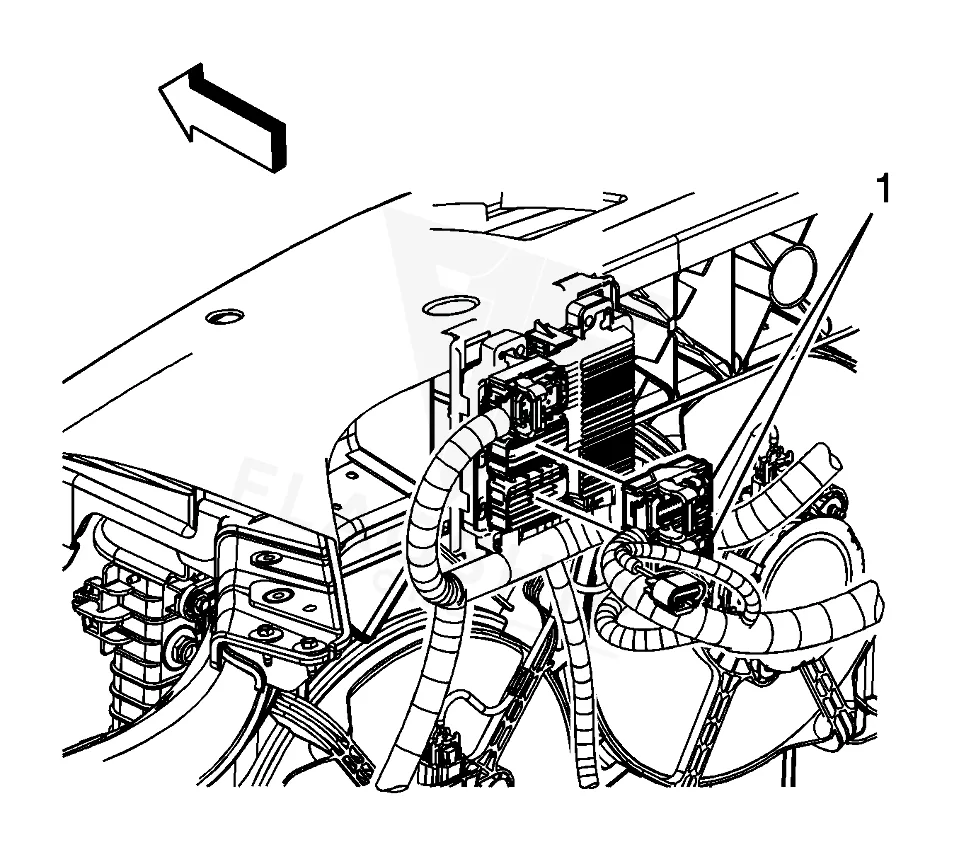

Where the PCM Is Located and What Replacement Involves
The ECM is mounted on a bracket within the engine compartment, secured by support brackets. To remove it, first disconnect the battery, then gently lift the retaining tab and raise the module out of its brackets, taking care not to touch the connector pins as warned by the factory caution. Reinstallation follows the reverse order. Labor time for removal and replacement is listed as 0.9 hours, while the Powertrain Control Module relearn step adds another 0.5 hours.
How to Reach the PCM on the 2013 GMC Acadia
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine wiring harness middle and lower electrical connectors from.
- Disconnect the engine wiring harness upper electrical connector from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
Programming Requirements After Replacement
After installing a new ECM you must capture the existing module data with a scan tool before removal, then reprogram the replacement using the correct vehicle calibration and special equipment. Flagship One provides a VIN‑programmed replacement unit that arrives with the necessary software already loaded, so those steps are completed before the part reaches your shop. a VIN‑programmed replacement unit eliminates the need for on‑site reprogramming.
Symptoms of a Failing PCM
Typical signs of a failing ECM in the 2013 GMC Acadia include a complete no‑start condition, rough idle, intermittent stalling and loss of power during acceleration. Diagnostic trouble codes often appear, such as processor communication fault or other P060x series codes. You may also notice a lack of response from the scan tool or erratic transmission shifting as the module loses its link to other control units.
Module Trouble Codes on the 2013 GMC Acadia
The following internal trouble codes have been documented for the 2013 GMC Acadia ECM and can help pinpoint specific failures.
Factory Service Bulletins Worth Knowing
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | PQC Part Restriction – E39A ECM Has Ended – (Mar 28, 2013) | — |
Protecting the PCM in Your 2013 GMC Acadia
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all ground connections are clean and secure.
- Avoid jump‑starting the vehicle unless absolutely necessary.
- Address any diagnostic codes promptly before they worsen.
- Keep connector seals intact to protect against moisture.
Frequently Asked Questions
What should I do if my 2013 GMC Acadia shows a P0601 code?
A P0601 code indicates a processor communication fault. Verify wiring integrity, check connector pins for corrosion, and consider ECM replacement if the issue persists.
Can I replace the ECM myself on a 2013 GMC Acadia?
Self‑replacement is possible if you follow the factory cautions, use proper tools, and have access to a compatible scan tool for data capture and verification.
Do I need special equipment to program a new ECM in a 2013 GMC Acadia?
Yes, the factory procedure requires specific programming equipment and the correct calibration file for the vehicle. A VIN‑programmed unit from Flagship One removes that requirement.
When the ECM in your 2013 GMC Acadia needs attention, you can choose a repair that follows factory steps or opt for a refurbished replacement that arrives pre‑programmed. Both approaches aim to restore reliable engine control, but the pre‑programmed unit can reduce shop time and minimize the risk of re‑calibration errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 GMC Acadia with a lifetime warranty, free shipping and no core charge. The full GMC Acadia module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Engine Control Module in a 2013 GMC Acadia can resolve no‑start and performance issues. Whether you repair or install a pre‑programmed replacement, proper handling and programming are key to getting your vehicle back on the road.
