2012 GMC Acadia ECM Replacement & Programming Guide

If your 2012 GMC Acadia has stopped running or displays multiple check engine lights that cannot be cleared, the engine control module may have failed internally. This module is the brain of your 3.6L powertrain, governing critical functions that directly affect drivability. When the internal memory or processor malfunctions, the vehicle typically enters a no-start condition or runs poorly despite otherwise healthy mechanical systems. This guide explains what the ECM does, where it is located, the factory replacement procedure, and what you need to know about programming a replacement unit.

What the PCM Does in a 2012 GMC Acadia

The engine control module in your 2012 GMC Acadia serves as the primary computer for the 3.6L V6 engine. It processes input from dozens of sensors and uses that information to calculate optimal fuel injector pulse width, ignition timing advance, throttle response and emissions control device operation. This controller maintains communication with the transmission control module, anti-lock brake system and other vehicle networks. When the internal processor or memory corrupts, the module may lose the ability to control the engine properly, resulting in no-start conditions, stalling or false diagnostic codes. Replacement engine computers for the Acadia must be programmed with the vehicle’s specific VIN and calibration data to restore full functionality.

Flagship One keeps GMC Acadia replacement engine computers in stock for exactly this failure pattern.

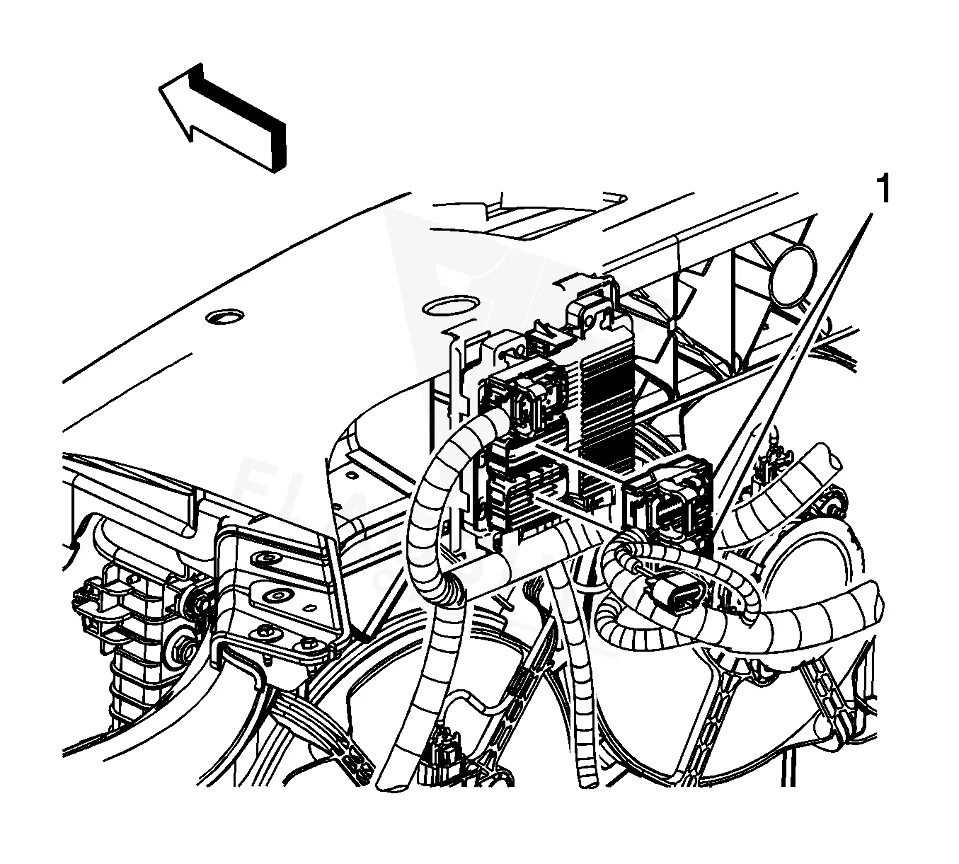

Where the PCM Is Located and What Replacement Involves

The ECM on this vehicle is mounted inside the engine compartment, typically secured to a bracket with retaining tabs. According to factory procedures, the replacement process involves carefully lifting the retaining tab and removing the module from its support brackets without touching the connector pins—this prevents electrostatic discharge that could damage the new unit. The book time for ECM removal and reinstallation is 0.9 hours, with an additional 0.5 hour allocated for the engine control module relearn procedure. Technicians must use a scan tool to capture the existing ECM data before removal, then program or reprogram the replacement module using the appropriate calibration files for this specific vehicle.

Module Trouble Codes on the 2012 GMC Acadia

The 2012 GMC Acadia with this engine family is known to store module-internal trouble codes when the ECM fails. These codes indicate problems within the controller itself rather than faults in external sensors or wiring. The following codes are documented for this vehicle application: P0601, P0602, P0603, P0604, P0606, P060A, P062F and P1621.

Factory Service Bulletins Worth Knowing

General Motors has published service bulletins addressing ECM-related concerns for this vehicle. Bulletin PIP4933D covers part restrictions for the ECM under the PQC part quality control program. Bulletin PIP4633D addresses diagnostic trouble codes P0601, P0603, P0604, P062F or P1621 that may be stored in the transmission control module, pointing to potential ECM internal failure as the root cause.

Protecting the PCM in Your 2012 GMC Acadia

• Maintain the charging system—weak or failing alternators can allow voltage drops that stress the ECM
• Keep all ECM connectors clean and sealed—moisture intrusion causes corrosion over time
• Avoid jump-starting from another vehicle when possible—voltage spikes can damage controller electronics
• Address check engine lights promptly—continuing to drive with multiple codes may worsen internal module stress
• Do not modify factory electrical systems with aftermarket add-on equipment that connects directly to vehicle wiring

Frequently Asked Questions

Can I replace the ECM on my 2012 GMC Acadia with a used unit from a salvage yard?

A used ECM requires programming with your specific vehicle’s VIN and calibration data, which requires dealer-level scan tools and access to GM’s programming software. The process is the same whether the unit is new or used, but used units carry unknown history and may have the same internal failure risk.

Will my 2012 GMC Acadia run after ECM replacement without programming?

No. The replacement ECM must be programmed with the vehicle-specific calibration before the engine will run properly. An unprogrammed module will not communicate with the rest of the vehicle’s network and the engine will not start.

Why does my scan tool show multiple P0600-series codes that will not clear?

P0600-series codes indicate internal controller faults—problems within the ECM itself rather than sensor or wiring issues. These codes cannot be cleared by disconnecting the battery because the fault exists in the module’s permanent memory. Replacement of the ECM is required to resolve the condition.

When your 2012 GMC Acadia requires an ECM replacement, you have two primary paths: a remanufactured unit programmed with your VIN, or a new dealer-ordered part that requires programming at additional cost. Units from Flagship One arrive pre-programmed to your vehicle, eliminating the need for dealer programming appointments and reducing overall repair time. Both options use quality-controlled components, but the programming convenience of a VIN-programmed unit may fit your situation better.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 GMC Acadia with a lifetime warranty, free shipping and no core charge. The full GMC Acadia module lineup covers other engine configurations as well.

Final Thoughts

The engine control module in your 2012 GMC Acadia is a critical component that governs engine operation, emissions and transmission communication. When internal failure occurs, the vehicle typically exhibits no-start behavior or stores multiple diagnostic codes that cannot be cleared. Understanding the factory replacement procedure, programming requirements and prevention strategies helps ensure a correct repair. Whether you choose a dealer-sourced unit or a pre-programmed replacement from Flagship One, addressing ECM failure promptly restores your vehicle’s drivability.
