2016 GMC Acadia ECM Replacement & Programming Guide

If your 2016 GMC Acadia with the 3.6L V6 engine has developed starting problems, intermittent stalling, or a cluster of check engine lights that seem unrelated, the Engine Control Module may be failing. The ECM serves as the brain of your vehicle’s powertrain, constantly monitoring sensors and adjusting engine operation for performance and efficiency. When internal memory corruption occurs within this computer, symptoms can range from a simple illuminated check engine light to a complete no-start condition. This guide explains what the ECM does in your specific vehicle, where it is located, the replacement procedure, and programming requirements. Whether you are diagnosing a rough-running engine or planning a repair, understanding the role of this module helps you make informed decisions about replacement versus repair options.

What the PCM Does in a 2016 GMC Acadia

The Engine Control Module in your 2016 GMC Acadia is the central computer responsible for managing all aspects of the 3.6L V6 engine’s operation. This module receives input from dozens of sensors throughout the engine bay, including the mass air flow sensor, coolant temperature sensor, throttle position sensor, and oxygen sensors. Using this information, the ECM calculates the optimal air-fuel mixture and ignition timing for every driving condition, then commands the fuel injectors and ignition coils accordingly. Beyond basic engine management, the ECM also controls the torque converter clutch, evaporative emissions system, and communicates with other modules on the vehicle’s CAN bus network. When the internal processor or memory within the ECM becomes corrupted due to voltage spikes, thermal stress, or component aging, the module may store internal trouble codes and fail to properly control engine functions. Replacement engine computers for the Acadia must be programmed with the vehicle’s specific VIN and configuration data to restore full functionality.

Flagship One keeps GMC Acadia replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

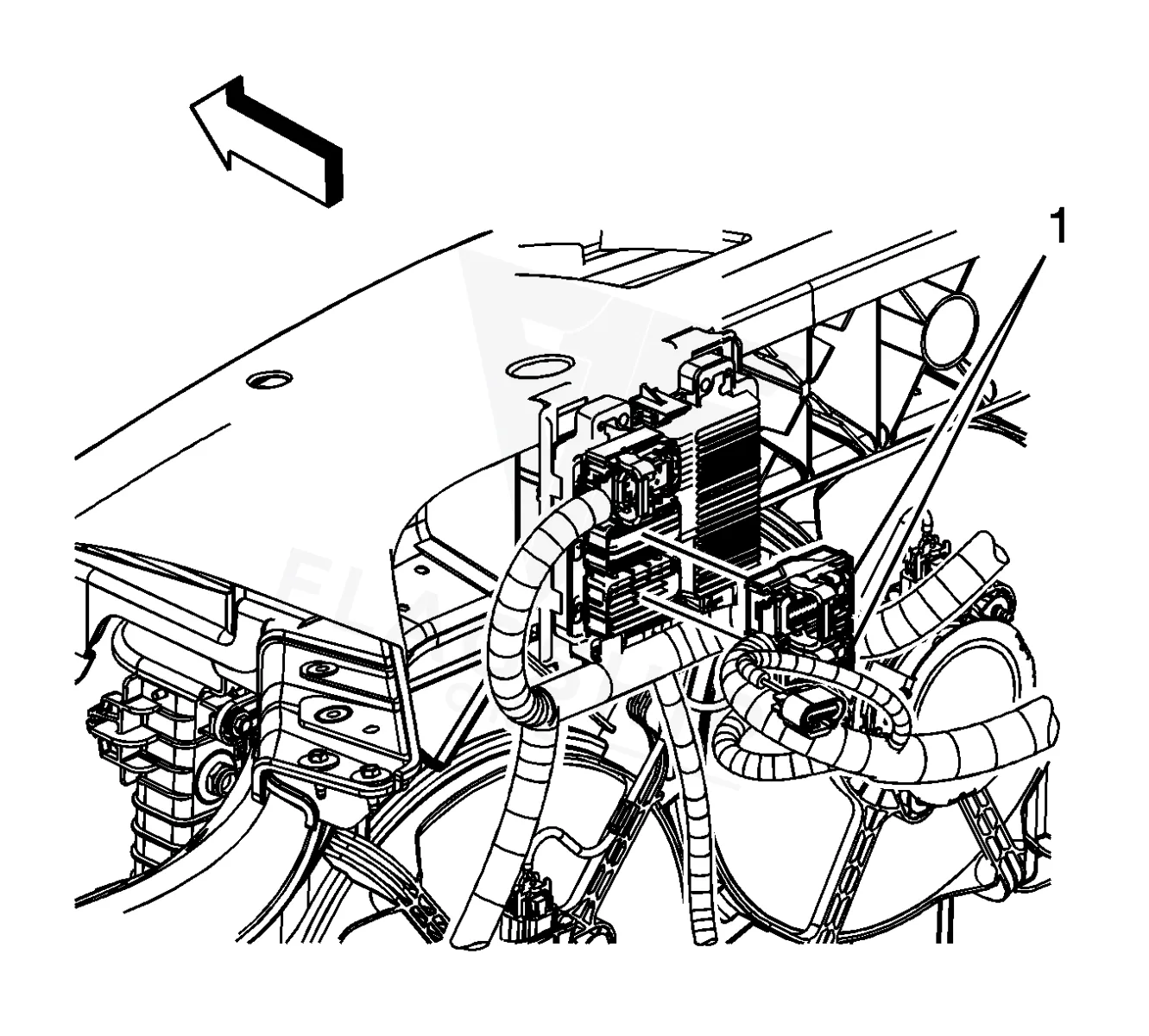

The Engine Control Module on the 2016 GMC Acadia is located in the engine compartment, mounted to a bracket above the front passenger-side wheel well. Access typically requires removing the air intake duct and possibly the passenger-side wheel liner for clearance. The module connects to the vehicle wiring harness through a multi-pin electrical connector. During replacement, the factory caution specifically warns against touching the connector pins to prevent electrostatic discharge damage to the internal circuits. Technicians must gently lift the retaining tab and remove the ECM from its support brackets without forcing the connector free. Book time for ECM removal and reinstall is listed as 0.9 hours, while the subsequent ECM relearn procedure requires an additional 0.5 hours of labor. These times reflect the physical replacement and the scan tool procedure needed to establish communication between the new module and the rest of the vehicle’s systems.

Symptoms of a Failing PCM

When the Engine Control Module begins to fail on a 2016 GMC Acadia, symptoms often appear gradually before progressing to a no-start condition. Common complaints include intermittent engine cranking with no start, unexpected stalling during idle or acceleration, hesitation or stumbling under throttle, and rough idle that may resolve once the engine warms. The check engine light typically illuminates with multiple trouble codes stored, often including sensor-related codes that seem to jump between different circuits. In some cases, the vehicle may start but run poorly, with the engine pulling poorly or exhibiting a noticeable lack of power. A failing ECM may also cause transmission shifting issues because it controls the torque converter clutch and shift firmness. If the module loses communication entirely, scan tools may be unable to connect to the ECM, or all dashboard warning lights may illuminate simultaneously. Internal ECM failures often set codes like P0601 indicating internal memory read/write integrity failure, which points directly to module internal problems rather than external sensor issues.

Module Trouble Codes on the 2016 GMC Acadia

The 2016 GMC Acadia with this ECM may store several module-internal trouble codes when the computer itself has failed. These codes indicate various internal faults within the ECM processing system, including memory checksum errors, calibration loss, and processor malfunctions. When these codes appear alongside drivability symptoms, they strongly suggest the ECM requires replacement rather than sensor or wiring repair.

Factory Service Bulletins Worth Knowing

Factory service bulletin PIP5373B, dated June 11, 2018, addresses programming errors that may occur when reprogramming the ECM on this vehicle. The bulletin specifically covers error codes E4491 and E4423 that may appear during the SPS programming procedure. Technicians are instructed to follow a specific reprogramming sequence to avoid these errors, which can prevent the module from accepting the correct calibration data. If your vehicle has experienced a programming failure or the ECM was previously replaced with an improperly programmed unit, this bulletin provides the factory-approved resolution steps.

Protecting the PCM in Your 2016 GMC Acadia

• Maintain your vehicle’s charging system by checking battery terminal condition and alternator output regularly to prevent voltage spikes that can damage ECM memory
• Ensure all ground connections to the engine and body remain clean and tight, as poor grounds can cause voltage irregularities that stress the ECM
• Avoid jump-starting from incorrect polarity, which can send destructive voltage surges through the ECM connectors
• Address any check engine lights promptly rather than ignoring them, as early intervention may prevent complete ECM failure
• Inspect ECM connector seals and wiring for damage during routine maintenance, keeping moisture and debris out of electrical connections
• Consider using a surge protector on your vehicle’s battery if parking for extended periods in locations with electrical disturbances

Frequently Asked Questions

Will a used ECM from a salvage yard work in my 2016 GMC Acadia?

A used ECM will require programming with your vehicle’s specific VIN and calibration data before it will function. This requires dealer-level tooling and software. Many salvage units also carry the same internal failure risk, making a professionally remanufactured unit a more reliable choice.

Can I drive my 2016 GMC Acadia with a failing ECM?

Driving with a failing ECM is not recommended. The module may fail completely while underway, leaving you stranded. Additionally, improper fuel or timing commands from a faulty ECM could cause engine damage or create safety hazards on the road.

How do I know if my Acadia’s problem is the ECM versus a sensor?

If scan tool diagnosis reveals module-internal codes like P0601, P0602, or P0603, the ECM itself is likely faulty. Multiple unrelated sensor codes appearing simultaneously also suggest ECM problems, as the module processes all sensor inputs.

Does the ECM control transmission shifting on this vehicle?

Yes, the ECM works in conjunction with the transmission control module to manage shift points and torque converter lockup. ECM failures can cause harsh shifting, delayed engagement, or fault codes stored in both modules.

What happens if the ECM is not programmed after replacement?

An unprogrammed ECM will not communicate properly with the vehicle’s other modules, the engine will not start, and error codes will be stored. The vehicle will be inoperable until proper programming is completed.

When your 2016 GMC Acadia’s ECM fails, you face a choice between repair and replacement options. A professionally remanufactured ECM that arrives VIN-programmed to your specific vehicle eliminates the need for dealer programming visits and ensures the module is tested for proper function before shipping. Consider the total cost of rental vehicles, diagnostic fees, and programming charges when comparing repair options against a complete replacement unit that is ready to install.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 GMC Acadia with a lifetime warranty, free shipping and no core charge. The full GMC Acadia module lineup covers other engine configurations as well.

Final Thoughts

The Engine Control Module in your 2016 GMC Acadia is a critical component that manages all engine functions for the 3.6L V6. When internal failures occur, symptoms range from check engine lights to no-start conditions. Whether you replace the module yourself or hire a professional, understanding the programming requirements and factory precautions helps ensure a successful repair that restores your vehicle’s reliable operation.
