2012 Toyota Sequoia PCM and ECM Replacement Guide
In the 2012 Toyota Sequoia, the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery and transmission shift logic. A failure typically triggers a P0606 code and may result in loss of power, rough idle, or complete no‑start conditions.
Quick Summary
- PCM removal generally requires one hour of labor.
- ECM removal also averages one hour of labor.
- Relearn procedures add half an hour each for PCM and ECM.
- A short 0.3‑hour reset step follows ECM replacement.
When a 2012 Toyota Sequoia experiences engine control problems, the PCM or ECM may need to be replaced. This guide explains where the modules reside, what labor is involved, and which post‑install procedures are required. By following these steps, you can understand the scope of work and what to expect from a professional repair or a Flagship One replacement unit.
What the PCM Does in a 2012 Toyota Sequoia
The PCM in the 2012 Toyota Sequoia acts as the central computer for both engine and transmission functions, interpreting sensor data to control fuel injection, ignition timing and shift points. The ECM focuses on engine‑specific tasks such as idle control and emissions monitoring. Together they ensure smooth power delivery and compliance with emissions standards. Proper operation is essential for reliable performance, and a faulty unit often triggers diagnostic codes. For those seeking a direct swap, replacement powertrain control modules for the 2012 Toyota Sequoia provide a ready‑made solution.

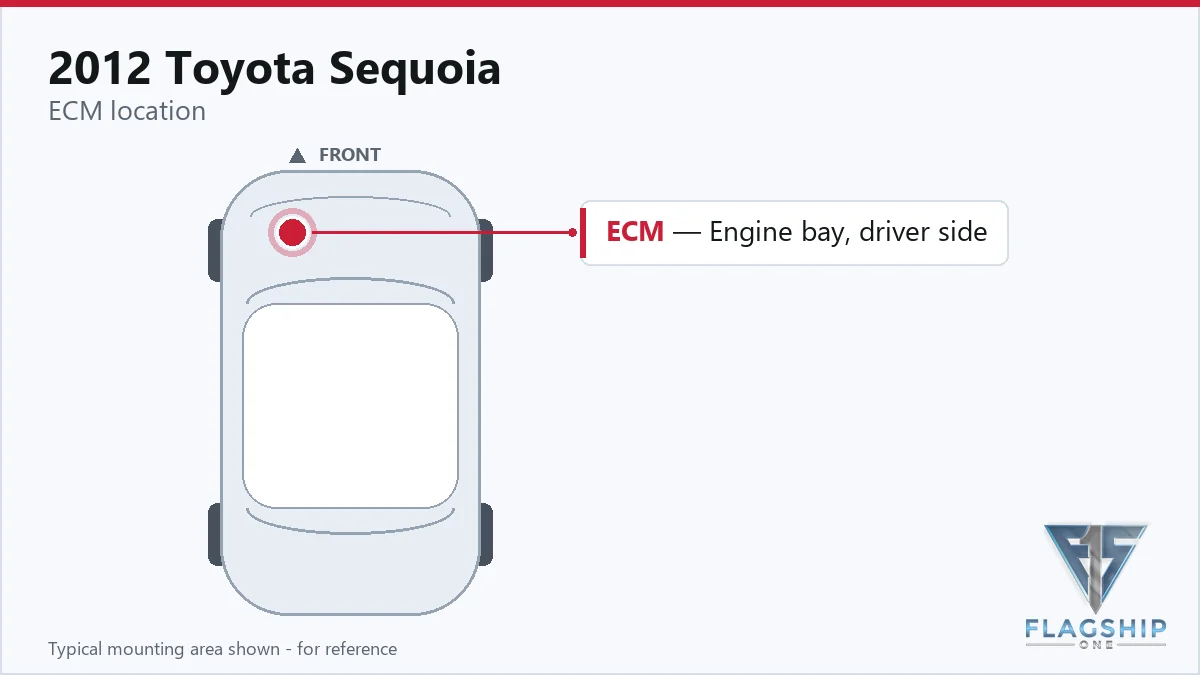

Where the PCM Is Located and What Replacement Involves
The factory removal procedure indicates the control module sits adjacent to the air cleaner assembly. Access is gained by removing the Connector Holder Block, which clears the path to the module. Labor times list one hour for removing either the PCM or ECM, with an additional 0.3 hour for the ECM reset step after installation. No additional torque specifications are provided, so standard fastener tightening practices apply.
How to Reach the PCM on the 2012 Toyota Sequoia
- REMOVE AIR CLEANER ASSEMBLY More Info.
- Disconnect connector holder block.
- Raise the 2 levers while pushing the locks on the 2 levers.
- Disconnect the 2 connectors.
- Remove the 4 bolts and ECM.
- Remove gasket.
- Remove the tape of the gasket without using bladed objects.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.0 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.0 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the factory service requires a Powertrain Control Module Relearn and an Engine Control Module Relearn, each taking about half an hour, plus a brief reset for the ECM. Flagship One units arrive VIN‑programmed so those steps are already completed, eliminating the need for separate relearn cycles. This simplifies the installation and reduces shop time. a VIN‑programmed replacement unit ensures the vehicle is ready to run immediately.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2012 Toyota Sequoia include a no‑start condition, rough idle, unexpected stalling, and transmission shift irregularities. Scan tools often lose communication with the control unit, and the engine may emit a diagnostic trouble code. One such code is internal control module memory checksum error, which points directly to a module fault.
Module Trouble Codes on the 2012 Toyota Sequoia
The following codes are commonly stored within the PCM/ECM on this vehicle when a fault occurs:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2012 Toyota Sequoia
- Maintain a healthy charging system to avoid voltage drops.
- Inspect and clean all ground connections regularly.
- Avoid exposing the vehicle to severe voltage spikes from jump‑starts.
- Address any diagnostic codes promptly to prevent further damage.
- Keep connector seals intact to protect against moisture ingress.
Frequently Asked Questions
What does a P0606 code indicate for my 2012 Toyota Sequoia?
The P0606 code signals an internal memory checksum error within the control module, suggesting the PCM or ECM may have corrupted data and could require replacement.
Can I replace the PCM myself on a 2012 Toyota Sequoia?
Replacement is possible if you follow the removal steps, observe the labor times, and use a VIN‑programmed unit so the relearn procedures are already completed.
How long does a typical PCM or ECM replacement take on this model?
Labor estimates are about one hour for removal and installation of each module, plus additional time for relearn steps if a non‑programmed unit is used.
When the control module fails, you can choose a professional repair that includes a rebuilt unit and labor, or opt for a Flagship One refurbished replacement that arrives VIN‑programmed and ready for installation. Both paths aim to restore reliable operation to your 2012 Toyota Sequoia without unnecessary downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Toyota Sequoia with a lifetime warranty, free shipping and no core charge. The full Toyota Sequoia module lineup covers other engine configurations as well.
Final Thoughts
A faulty PCM or ECM can sideline a 2012 Toyota Sequoia, but understanding the location, labor requirements, and post‑install steps helps you make an informed decision. Consider a VIN‑programmed replacement to simplify the repair and get back on the road quickly.
