2012 Toyota Camry 3.5L ECM Replacement and Programming Guide
The Engine Control Module (ECM) in the 2012 Camry 3.5L manages fuel injection, ignition timing, and emissions. Failure can cause drivability issues, a check engine light, and stored trouble codes like P0606. It is the central computer for engine operation.
Quick Summary
- ECM replacement on a 2012 Camry 3.5L has a book labor time of 0.7 hours for removal and installation.
- After replacing the ECM, the factory requires a VIN registration procedure, which takes 0.5 hours.
- Access involves disconnecting the negative battery cable, then removing the cool air intake duct seal and battery.
- A documented internal trouble code for this vehicle’s ECM is P0606.
- Flagship One supplies ECMs that arrive already programmed with the VIN, eliminating the post-install registration step.
If you are dealing with a failing ECM in your 2012 Toyota Camry 3.5L, you may notice symptoms like a no-start condition, stalling, or a persistent check engine light. The ECM is the brain of the engine, controlling critical functions such as fuel delivery and spark timing. Replacing it requires careful attention to factory procedures, including a mandatory VIN registration after installation. This guide covers the location of the module, the labor involved, and the programming steps you need to know. By understanding what the ECM does and what replacement entails, you can make an informed decision about repairing or replacing the unit. We also explain how a pre-programmed replacement can save you time and effort.
What the PCM Does in a 2012 Toyota Camry
The Engine Control Module in your 2012 Camry 3.5L is a dedicated computer that continuously monitors and adjusts engine parameters. It processes data from sensors like the oxygen sensor, throttle position sensor, and crankshaft position sensor to optimize fuel mixture, ignition timing, and idle speed. This module also communicates with the transmission control unit and other systems via the vehicle’s network. When it fails, the engine may run poorly or not at all. For a reliable fix, you can choose from replacement engine computers for the Camry that are designed to match the original specifications. The ECM’s role is critical for meeting emissions standards and maintaining fuel economy, so a properly functioning unit is essential for everyday driving.
What Replacing the PCM Involves

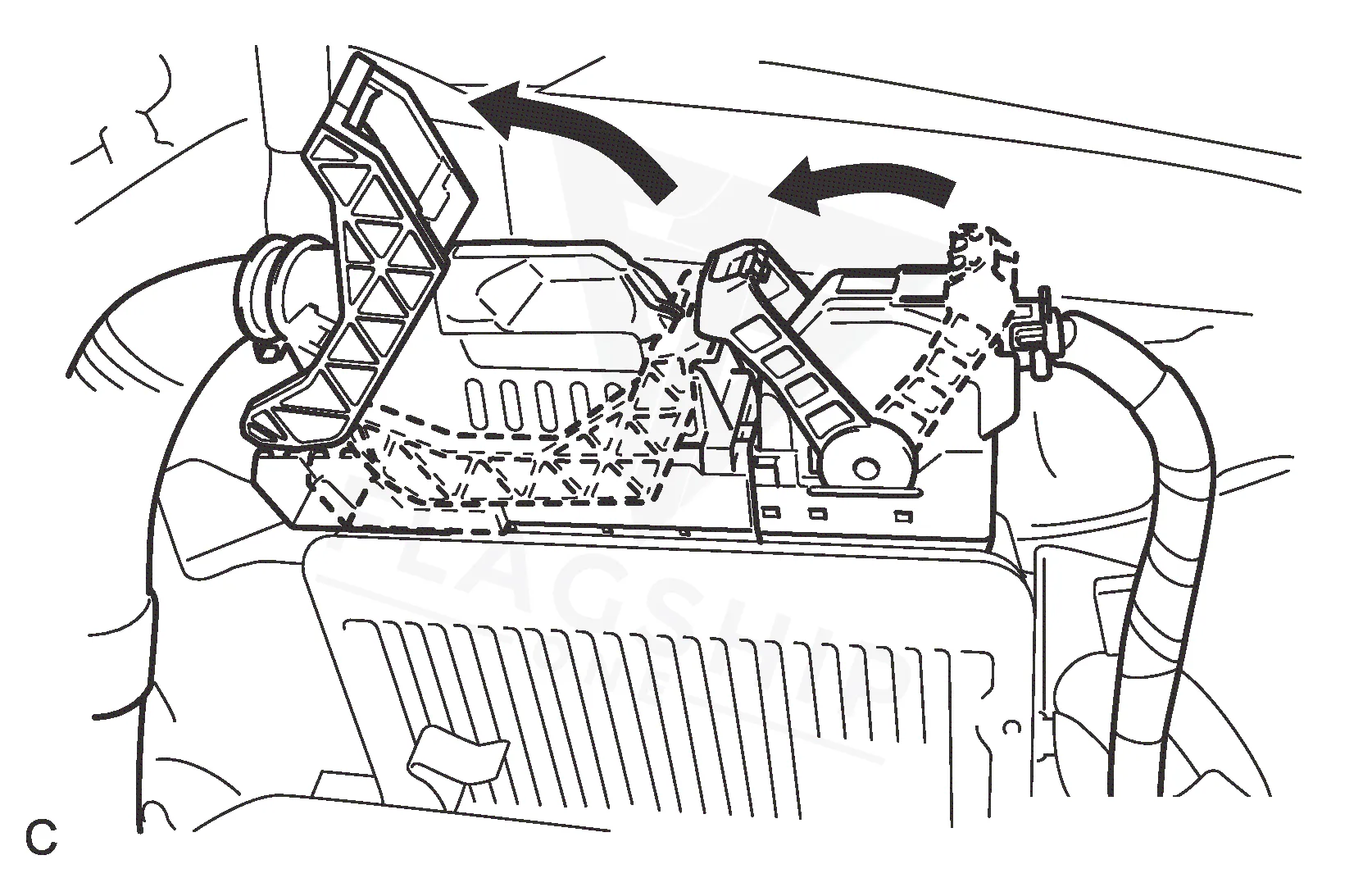

How to Reach the PCM on the 2012 Toyota Camry
- Disconnect cable from negative battery terminal.
- REMOVE COOL AIR INTAKE DUCT SEAL More Info REMOVE BATTERY More Info.
- Disconnect the 2 ECM connectors.
- Remove the nut.
- Remove the screw.
- Loosen the screw and remove the ECM.
- Remove the 2 screws and No.
- Disconnect the wire harness clamp.
- Remove the nut and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2012 Camry 3.5L, the factory requires a Vehicle Identification Number (VIN) registration procedure. This step ensures the module is correctly paired with the vehicle’s security and emissions systems. The book time for this relearn is 0.5 hours. Additionally, because the battery was disconnected, you may need to reinitialize certain convenience systems. To bypass these post-install steps, you can order a VIN-programmed replacement unit from Flagship One. Their ECMs arrive with the VIN already registered, so you can install the module and start the engine without performing the factory registration procedure. This saves you the extra labor and ensures the module is ready to go.
Symptoms of a Failing PCM
When the ECM in your 2012 Camry 3.5L begins to fail, you may experience a no-start condition or intermittent stalling. The engine might run rough, misfire, or hesitate during acceleration. The check engine light will likely illuminate, and a scan tool may show a ECM internal fault code P0606 indicating a problem within the module itself. Other common symptoms include poor fuel economy, difficulty shifting (if the ECM communicates with the transmission), and a complete lack of communication from the scan tool when trying to read engine data. These issues can be frustrating, but they often point directly to the ECM as the root cause.
Module Trouble Codes on the 2012 Toyota Camry
The ECM in your 2012 Camry 3.5L can store internal fault codes that indicate a problem within the module itself. For this vehicle, one documented module-internal trouble code is P0606, which points to an internal ECM processor fault.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2012 Toyota Camry
- Keep your vehicle’s charging system in good health; a failing alternator can send voltage spikes that damage the ECM.
- Inspect and clean the ground connections and ECM harness connectors regularly to prevent corrosion and poor contact.
- Avoid jump-starting your vehicle with a running donor car; use a battery pack or follow the manual’s jump-start procedure carefully.
- Address any check engine light or drivability codes promptly; ignoring them can lead to further ECM stress.
- Ensure the ECM connector seals are intact and properly seated to keep moisture and dirt out of the module.
When your 2012 Camry 3.5L needs a new ECM, you have options. You can have a shop install a new factory module and pay for the VIN registration labor, or you can choose a refurbished replacement that comes pre-programmed. A pre-programmed unit from Flagship One eliminates the need for the 0.5-hour relearn procedure, saving you time and money. This is a practical choice for a vehicle of this age, balancing cost and reliability.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Toyota Camry with a lifetime warranty, free shipping and no core charge. The full Toyota Camry module lineup covers other engine configurations as well.
Final Thoughts
Replacing the ECM in your 2012 Toyota Camry 3.5L is a straightforward job with a book time of 0.7 hours, but the factory VIN registration step adds extra labor. By choosing a pre-programmed replacement, you can avoid that post-install procedure. Whether you tackle the job yourself or have a shop do it, understanding the process helps you get your Camry back on the road quickly.
