2013 Ford F-Series 3.7L PCM Replacement and Common Failure Signs
The powertrain control module (PCM) in your 2013 Ford F-Series 3.7L is the vehicle’s primary computer, managing engine performance, fuel delivery, and transmission behavior. Failures may cause erratic operation, no-start conditions, or internal fault codes like P0606.
Quick Summary
- The PCM controls engine and transmission functions in your 2013 Ford F-Series 3.7L.
- Replacement typically requires 1.8 hours of labor for removal and reinstallation.
- A relearn procedure (0.5 hours) is necessary after installation to synchronize the module.
- Factory programming steps must be followed unless using a pre-programmed replacement unit.
- Internal faults like P0606 may indicate PCM failure, leading to drivability issues.
If your 2013 Ford F-Series with the 3.7L engine is experiencing unexplained stalling, rough idling, or a no-start condition, the powertrain control module (PCM) may be at fault. This critical component acts as the brain of your vehicle, coordinating fuel injection, ignition timing, and transmission shifts to ensure smooth operation. When it fails, symptoms can range from subtle performance issues to complete immobilization. Replacing the PCM involves more than just swapping hardware—it requires precise programming to match your vehicle’s specifications. Understanding the role of the PCM, where it’s located, and what steps are involved in replacement can help you make informed decisions about repairs. Whether you’re dealing with a sudden breakdown or diagnosing intermittent problems, knowing how this module functions and what to expect during replacement will save you time and frustration.
What the PCM Does in a 2013 Ford Truck (F-Series)
The powertrain control module (PCM) in your 2013 Ford F-Series 3.7L engine is a sophisticated computer that integrates engine and transmission control into a single unit. It continuously monitors inputs from sensors throughout the vehicle, such as the throttle position, oxygen levels, and crankshaft position, to optimize performance, fuel efficiency, and emissions. The PCM adjusts fuel delivery, ignition timing, and transmission shift points in real time, ensuring your engine runs smoothly under all driving conditions. Without a properly functioning PCM, your vehicle may struggle to start, idle erratically, or even enter a fail-safe mode that limits power. Because the PCM is tailored to your specific engine and transmission combination, replacing it requires not just mechanical installation but also programming to ensure compatibility. When sourcing a new module, replacement powertrain control modules for the F-Series are designed to meet factory specifications, but they must be correctly configured to avoid drivability issues. A faulty PCM can disrupt communication between the engine and transmission, leading to poor shifting, reduced fuel economy, or even engine damage if left unaddressed.
Where the PCM Is Located and What Replacement Involves
In the 2013 Ford F-Series with the 3.7L engine, the powertrain control module (PCM) is typically mounted in the engine compartment, often near the firewall or on the passenger side inner fender. Accessing it involves removing the necessary covers and disconnecting the battery to prevent electrical issues during replacement. The labor time for removing and reinstalling the PCM is approximately 1.8 hours, according to factory estimates. This includes disconnecting the wiring harness, unbolting the module, and securing the new unit in place. After installation, the PCM must be relearned to the vehicle, a process that takes about 0.5 hours. This step ensures the module synchronizes with the engine and transmission, allowing for proper operation. While the physical replacement is straightforward, the programming and relearn procedures are critical to avoid drivability problems or fault codes.

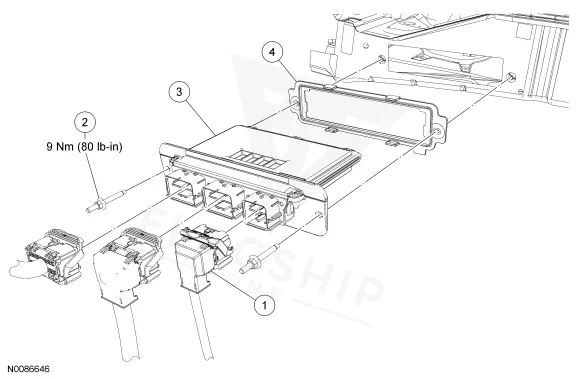

How to Reach the PCM on the 2013 Ford Truck (F-Series)
- Remove the PCM stud bolt (2 required).
- Disconnect the ground cable nut – 9 Nm (80 lb-in).
- Remove the PCM stud bolt (2 required) – 9 Nm (80 lb-in).
- Remove the PCM support bracket.
- Remove the PCM -to-PCM support bracket bolt – 9 Nm (80 lb-in) (2 required).
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.8 hr |
Programming Requirements After Replacement
After replacing the powertrain control module (PCM) in your 2013 Ford F-Series 3.7L, the factory requires reprogramming the electrically erasable programmable read-only memory (EEPROM) to match your vehicle’s specifications. This process, outlined in Section 2 of the factory service manual, involves programming the Vehicle Identification (VID) block to ensure the PCM recognizes your engine, transmission, and emissions systems. Without this step, the module may not communicate properly with other vehicle systems, leading to performance issues or fault codes. However, if you install a VIN-programmed replacement unit, these programming steps are already completed, saving you time and reducing the risk of errors. The relearn procedure, which takes about 0.5 hours, is still necessary to synchronize the new PCM with your vehicle’s sensors and actuators, but the initial programming is handled before installation.
Symptoms of a Failing PCM
When the powertrain control module (PCM) in your 2013 Ford F-Series 3.7L begins to fail, you may notice a range of symptoms that can vary in severity. Common signs include intermittent stalling, especially at idle or during deceleration, as the PCM struggles to maintain proper fuel and ignition timing. The engine may also hesitate or jerk during acceleration, as if the transmission is shifting erratically or the fuel mixture is incorrect. In some cases, the vehicle may fail to start altogether, leaving you with a cranking engine that refuses to fire. Another telltale sign is the illumination of the check engine light, often accompanied by module-specific trouble codes like an internal processor fault. Scan tool communication may also be lost, preventing you from retrieving codes or monitoring live data. Additionally, you might experience poor fuel economy, as the PCM’s inability to optimize fuel delivery leads to inefficient combustion. Transmission shifting issues, such as delayed or harsh gear changes, can also occur if the PCM fails to communicate properly with the transmission control module. These symptoms often worsen over time, so addressing them promptly can prevent further damage to your vehicle’s drivetrain.
Module Trouble Codes on the 2013 Ford Truck (F-Series)
The 2013 Ford F-Series 3.7L powertrain control module (PCM) may log specific internal trouble codes when it experiences faults. These codes help diagnose issues related to the module’s hardware or software, providing insight into whether replacement or reprogramming is necessary.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2013 Ford Truck (F-Series)
- Keep your vehicle’s battery and charging system in good condition to avoid voltage spikes that can damage the PCM.
- Ensure all electrical connections, especially the PCM harness, are clean and securely fastened to prevent corrosion or intermittent faults.
- Avoid jump-starting your vehicle with improper voltage, as this can overload the PCM and other sensitive electronics.
- Address any check engine lights or fault codes promptly to prevent minor issues from escalating into module failures.
- Inspect the PCM connector seals regularly to ensure they remain intact, preventing moisture intrusion that can cause corrosion.
- Use a quality scan tool to monitor PCM health during routine maintenance, catching potential issues before they lead to breakdowns.
Frequently Asked Questions
Why does my 2013 Ford F-Series 3.7L stall intermittently, and could the PCM be the cause?
Intermittent stalling in your 2013 Ford F-Series 3.7L can often be traced to a failing powertrain control module (PCM). The PCM manages fuel delivery and ignition timing, and if it malfunctions, it may cut fuel or spark at random intervals, causing the engine to stall. Other symptoms, such as rough idling or hesitation, may accompany the stalling, indicating a need for further diagnosis.
What does the P0606 code mean in my 2013 Ford F-Series, and is it always a PCM issue?
The P0606 code in your 2013 Ford F-Series indicates an internal processor fault within the powertrain control module (PCM). While this code often points to a failing PCM, it’s important to rule out other potential causes, such as wiring issues or poor electrical connections, before replacing the module. A thorough diagnosis with a scan tool can confirm whether the PCM is the root cause.
How do I know if my 2013 Ford F-Series 3.7L PCM needs to be replaced rather than reprogrammed?
If your 2013 Ford F-Series 3.7L is experiencing persistent drivability issues, such as stalling, no-start conditions, or repeated internal fault codes like P0606, the PCM may need replacement. Reprogramming is typically attempted first, but if the module’s hardware is damaged or the issues persist after reprogramming, replacement is the next step. A professional diagnosis can determine the best course of action.
Can I replace the PCM in my 2013 Ford F-Series 3.7L myself, or should I take it to a shop?
While the physical replacement of the PCM in your 2013 Ford F-Series 3.7L is straightforward, the programming and relearn procedures require specialized tools and knowledge. If you’re not familiar with these steps, it’s best to have the work done by a professional to avoid drivability issues or fault codes. However, using a pre-programmed replacement unit can simplify the process.
What happens if I don’t perform the relearn procedure after replacing the PCM in my 2013 Ford F-Series?
Skipping the relearn procedure after replacing the PCM in your 2013 Ford F-Series can lead to a range of issues, including poor engine performance, erratic shifting, or even a no-start condition. The relearn process synchronizes the new PCM with your vehicle’s sensors and actuators, ensuring proper communication. Without it, the module may not function correctly, leading to drivability problems or fault codes.
If your 2013 Ford F-Series 3.7L is showing signs of PCM failure, you have options for repair or replacement. While a dealership may offer a new module with factory programming, this can be costly and time-consuming. Refurbished or remanufactured replacement units provide a reliable alternative, often arriving pre-programmed to your vehicle’s specifications. This eliminates the need for additional programming steps, reducing downtime and ensuring a smoother installation process. Whether you choose to tackle the replacement yourself or leave it to a professional, understanding the steps involved can help you make an informed decision.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Ford Truck (F-Series) with a lifetime warranty, free shipping and no core charge. The full Ford Truck (F-Series) module lineup covers other engine configurations as well.
Final Thoughts
The powertrain control module in your 2013 Ford F-Series 3.7L plays a critical role in ensuring smooth engine and transmission operation. When it fails, symptoms like stalling, no-start conditions, or internal fault codes can disrupt your driving experience. Replacing the PCM involves more than just swapping hardware—it requires proper programming and a relearn procedure to restore functionality. By addressing issues promptly and using a quality replacement unit, you can keep your F-Series running reliably for years to come.
