2011 Lincoln MKZ PCM and ECM Repair Guide
In the 2011 Lincoln MKZ, the Powertrain Control Module (PCM) and Engine Control Module (ECM) act as the vehicle’s brain, managing fuel delivery, ignition timing, emissions, and transmission coordination. A failure in either unit typically triggers diagnostic trouble codes, loss of engine power, or complete shutdown because the computer can no longer regulate critical engine functions.
Quick Summary
- PCM/ECM issues often trigger codes such as P0601, P0603, P0604, P1657, and U0100.
- Typical labor for a PCM replacement is about one hour, while an ECM swap can require up to 1.7 hours.
- Relearn procedures after replacement range from 0.3 to 0.5 hours for each module.
- Flagship One units arrive VIN‑programmed, eliminating the need for post‑install reprogramming.
When a 2011 Lincoln MKZ begins to exhibit irregular idle, stalling, or a complete no‑start condition, the underlying cause often points to the vehicle’s electronic control modules. Understanding how the Powertrain Control Module and Engine Control Module function, and what steps are required to replace them, can help you make an informed decision about repair or refurbishment. This guide walks through the role of each module, where they reside, the labor involved in removal and installation, and the factory programming that follows. By the end, you should know what to expect in terms of labor time, diagnostic clues, and how a Flagship One replacement can simplify the process.
What the PCM Does in a 2011 Lincoln MKZ
The Powertrain Control Module in the 2011 Lincoln MKZ monitors engine speed, throttle position, and transmission inputs, then commands fuel injection and spark timing to keep the powertrain operating smoothly. It also communicates with the Engine Control Module, which focuses on combustion control, emissions monitoring, and sensor feedback. Together they ensure that the engine runs efficiently and that the transmission shifts at the right moments. A malfunction can cause loss of power, erratic shifting, or complete shutdown, making reliable operation impossible. The vehicle relies on these computers to meet emissions standards and to protect drivetrain components from damage. Replacing a faulty unit typically requires removal of the module, connector disconnection, and reinstalling a new or refurbished unit. For a 2011 Lincoln MKZ, the replacement parts are often sourced as replacement powertrain control modules for 2011 Lincoln MKZ to match the original specifications.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are located in the engine compartment, mounted near the firewall for easy access to wiring harnesses. Removal starts with disconnecting the negative battery terminal to protect the vehicle’s electrical system. After the battery is isolated, the module fasteners are loosened, which generally takes about 0.5 hours for the PCM and 0.3 hours for the ECM reset procedures. The connectors are then unplugged, and the unit is lifted out of its bracket. Installation reverses the steps, tightening the fasteners to the factory torque specifications if provided, and reconnecting the battery. The book times indicate that a full Powertrain Control Module replacement with removal and reinstall typically requires around one hour, while the Engine Control Module may need up to 1.7 hours depending on access complexity.

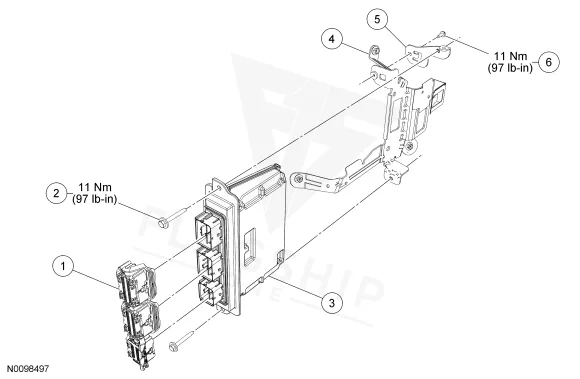

How to Reach the PCM on the 2011 Lincoln MKZ
- Remove the cowl panel grille.
- Disconnect the vacuum hose from the vacuum brake booster.
- Disconnect the 3 PCM electrical connectors.
- Remove the ground strap bolt and disconnect the ground strap retainer.
- Remove the two LH splash shield pin-type retainers and position the LH splash shield aside.
- Remove the lower PCM bolt and the upper PCM bracket bolt.
- Remove the PCM.
- Remove the upper PCM bolt and the PCM bracket from the PCM.
- Position the LH splash shield and install the two LH splash shield pin-type retainers.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | GAS | 1.0 hr |
| Powertrain Control Module R&R | All configurations | 1.7 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | GAS | 1.0 hr |
| Engine Control Module R&R | All configurations | 1.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the new module is physically installed in a 2011 Lincoln MKZ, the factory service procedure calls for a specific reprogramming step to synchronize the Passive Anti-Theft System (PATS). This process usually involves a dealer‑level scan tool to write the vehicle identification number and security keys into the module. Flagship One units arrive pre‑loaded with the correct VIN data, so the reprogramming step is already completed. When you receive a replacement, you are essentially getting a VIN‑programmed replacement unit that eliminates the need for that post‑install programming task.
Symptoms of a Failing PCM
A failing PCM or ECM in a 2011 Lincoln MKZ can manifest as intermittent loss of power, rough idle, or a complete inability to start the engine. Drivers may notice the check engine light flashing and see diagnostic trouble codes appear during a scan. One common code, processor failure, indicates that the module’s internal processor is not responding correctly, which often results in loss of communication with other vehicle systems. Other symptoms include unexpected transmission shifts, stalling at low speeds, and occasional loss of fuel pump control, all of which point to the electronic brain losing its ability to manage engine parameters.
Module Trouble Codes on the 2011 Lincoln MKZ
The following diagnostic trouble codes are commonly associated with PCM and ECM failures in the 2011 Lincoln MKZ:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P1657 | Module-internal fault | — |
| U0100 | Module-internal fault | Full U0100 guide → |
Protecting the PCM in Your 2011 Lincoln MKZ
- Maintain a healthy charging system to avoid voltage spikes that can damage the modules.
- Ensure all ground connections are clean and tight to provide reliable electrical paths.
- Avoid jump‑starting the vehicle unless absolutely necessary, as sudden voltage can stress the computers.
- Address any diagnostic codes promptly to prevent further degradation of the control modules.
- Inspect connector seals regularly and replace if cracked to keep moisture out.
- Keep the battery terminals free of corrosion to ensure stable power delivery.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2011 Lincoln MKZ?
The book time for removing and reinstalling the Powertrain Control Module on a 2011 Lincoln MKZ is about one hour, which includes disconnecting the battery, removing fasteners, and reconnecting the unit.
Can a 2011 Lincoln MKZ run without reprogramming after a new ECM is installed?
Factory service requires a reprogramming step for the Passive Anti-Theft System after ECM replacement, but a Flagship One unit arrives VIN‑programmed, so the vehicle can operate without additional coding.
What does the P0601 code indicate for a 2011 Lincoln MKZ?
Code P0601 signals a processor failure inside the PCM or ECM, meaning the module is not communicating correctly with the vehicle’s systems, which can cause a no‑start condition.
Is it necessary to replace both PCM and ECM if only one shows a fault?
Only the module that is diagnosed with a fault needs to be replaced; however, if both show related codes, it may be prudent to evaluate both for potential simultaneous failure.
How does a VIN‑programmed replacement unit simplify the repair process?
A VIN‑programmed unit already contains the vehicle’s identification data, eliminating the dealer‑level reprogramming step and reducing the overall repair time.
When the PCM or ECM in your 2011 Lincoln MKZ needs attention, you can choose a professional repair with a new factory‑original unit or consider a refurbished Flagship One replacement. Both options restore the vehicle’s electronic control functions, but a VIN‑programmed unit removes the need for post‑install coding, potentially saving time and labor.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Lincoln MKZ with a lifetime warranty, free shipping and no core charge. The full Lincoln MKZ module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM or ECM issues in your 2011 Lincoln MKZ promptly can prevent loss of driveability and costly downstream repairs. Whether you opt for a new OEM part or a Flagship One refurbished module, ensuring proper installation and programming will keep your vehicle running smoothly.
