2011 Hyundai Santa Fe Engine Control Module Replacement Guide
The Engine Control Module in a 2011 Hyundai Santa Fe manages fuel delivery, ignition timing, and emission controls; a failure typically results in loss of powertrain regulation and may trigger diagnostic trouble codes.
Quick Summary
- Factory removal accesses the ECM beside the air cleaner.
- Labor time for removal and relearn each averages around 0.6 hours.
- Bolt torque for reinstall falls between 7.8 and 11.8 N·m.
- VIN must be programmed into the new ECM after install.
When an ECM in a 2011 Hyundai Santa Fe develops a fault, the vehicle may exhibit warning lights or erratic performance. Understanding how the module works, where it sits, and what steps are required for a proper swap can help you avoid unnecessary downtime. This guide explains the key tasks, typical labor expectations, and programming needs so you can make an informed decision about repair or replacement.
What the PCM Does in a 2011 Hyundai Santa Fe
The Engine Control Module in the 2011 Hyundai Santa Fe collects sensor data and commands actuators to keep the engine running smoothly. It processes inputs such as throttle position, oxygen levels, and crankshaft speed to calculate fuel injection and spark timing. Proper operation is essential for emissions compliance and drivability. 2011 Hyundai Santa Fe replacement engine computers ensure the vehicle meets performance standards and avoids diagnostic alerts.

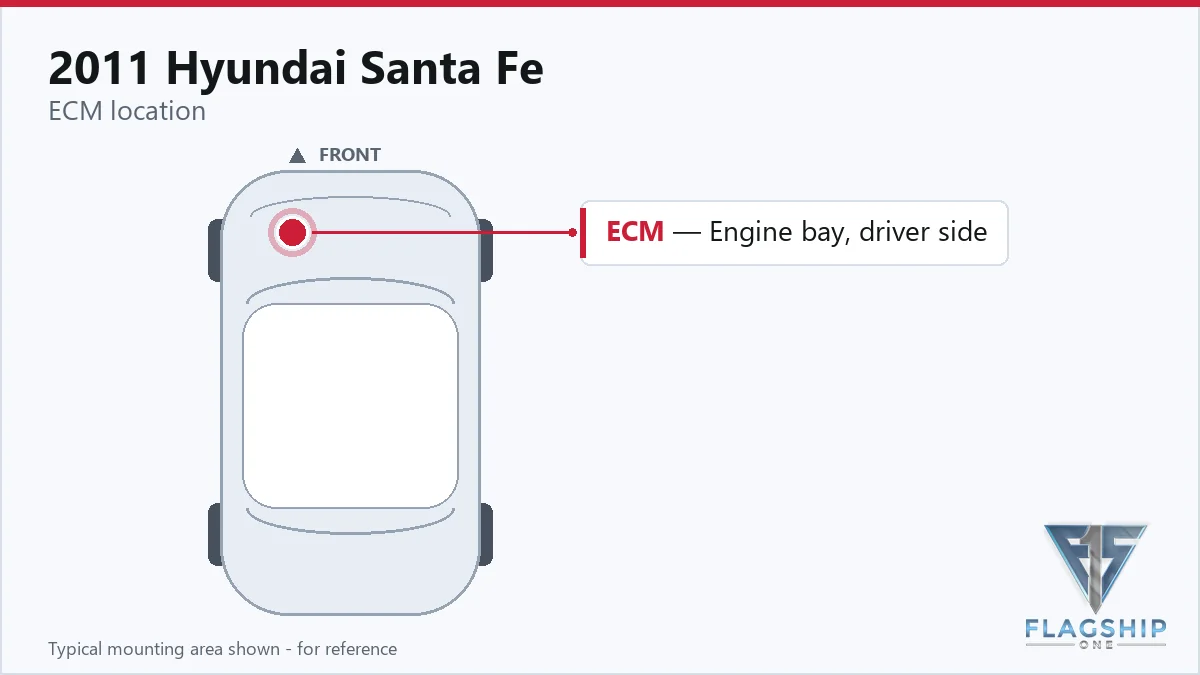

Where the PCM Is Located and What Replacement Involves
The ECM is mounted next to the air cleaner assembly, making it reachable once the intake components are removed. The factory procedure lists a removal labor time of 0.6 hours and a relearn of 0.5 hours for both removal and reinstall. When reinstalling, bolts should be tightened to a torque range of 7.8 N·m up to 11.8 N·m, matching the specified specifications. Following these steps aligns with the manufacturer’s recommended practice.
How to Reach the PCM on the 2011 Hyundai Santa Fe
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the ECM Connector.
- Remove the air cleaner assembly.
- Remove the mounting bolts, and then remove the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the ECM is fitted, the factory process requires the vehicle identification number to be written into the new unit before it can communicate with the vehicle network. Flagship One supplies a VIN‑programmed replacement unit so that this programming step is already completed, simplifying the final installation.
Symptoms of a Failing PCM
A failing ECM in this model often leads to a non‑starting condition, rough idle, or intermittent stalling. Drivers may notice the check engine light flashing and see diagnostic trouble codes appear, such as processor communication fault that indicates internal module communication problems. Loss of scan‑tool connectivity and unexpected transmission shifts can also be signs of ECM malfunction.
Module Trouble Codes on the 2011 Hyundai Santa Fe
The following internal trouble code is documented for the 2011 Hyundai Santa Fe ECM:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Technical Service Bulletin 10-FL-020 addresses a fuel system issue where the MIL stays illuminated with DTC P0017, while Bulletin 11-FL-001 covers a MIL on condition with DTC P0441, both requiring ECM updates.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | TSB • Fuel System • [10-FL-020] ECM UPDATE – MIL ON WITH DTC P0017 | — |
| — | TSB • Fuel System • [11-FL-001] ECM UPDATE – MIL ON WITH DTC P0441 | — |
Protecting the PCM in Your 2011 Hyundai Santa Fe
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground connections and module connectors regularly.
- Avoid jump‑starts that can introduce voltage spikes to the ECM.
- Promptly address any diagnostic codes that appear.
- Ensure connector seals remain intact to protect against moisture.
Frequently Asked Questions
What labor time should I expect for replacing the ECM in my 2011 Hyundai Santa Fe?
The factory book lists roughly 0.6 hours for removal and 0.5 hours for the relearn procedure, so a typical shop may bill around one hour for each step.
Do I need to program the VIN after installing a new ECM?
Yes, the factory process requires VIN programming, but Flagship One units arrive pre‑programmed, eliminating that step.
Which torque specification applies to the ECM mounting bolts?
Bolt torque should be set within the range of 7.8 to 11.8 N·m as specified by the manufacturer.
When the ECM needs service, you can choose a repair that follows the factory removal and relearn steps or opt for a refurbished replacement that meets the same specifications. Both approaches aim to restore proper engine management for your 2011 Hyundai Santa Fe while respecting the vehicle’s design requirements.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Hyundai Santa Fe with a lifetime warranty, free shipping and no core charge. The full Hyundai Santa Fe module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Engine Control Module in a 2011 Hyundai Santa Fe can resolve warning lights and performance issues. Consider a Flagship One unit to simplify programming and keep your vehicle running reliably.
