2010 Hyundai Santa Fe ECM Replacement and Relearn Guide
In the 2010 Hyundai Santa Fe the Engine Control Module manages fuel delivery, ignition timing and emissions monitoring. A failure typically results in engine warning lights, poor performance, or loss of driveability, and may trigger the internal P0605 fault code.
Quick Summary
- Factory removal accesses the ECM beside the air cleaner assembly.
- Labor time for removal and relearn is roughly 0.6 and 0.5 hours each.
- Installation bolts require torque between 7.8 and 11.8 N·m.
- VIN must be programmed into the new ECM after install.
When the engine warning lamp illuminates on your 2010 Hyundai Santa Fe, the ECM may be at fault. This guide explains what the module does, where it lives, how long a shop typically spends on removal and relearn, and what programming steps are needed. By the end you will understand the key steps to get your vehicle back to normal operation with confidence.
What the PCM Does in a 2010 Hyundai Santa Fe
The Engine Control Module in a 2010 Hyundai Santa Fe receives data from dozens of sensors and directs fuel injection, spark timing and emission controls. It also stores diagnostic trouble codes and communicates with the Powertrain Control Module. Proper operation is essential for smooth acceleration, fuel efficiency and emissions compliance. replacement engine computers for the 2010 Hyundai Santa Fe ensure that the vehicle runs as designed and that fault codes are logged correctly.

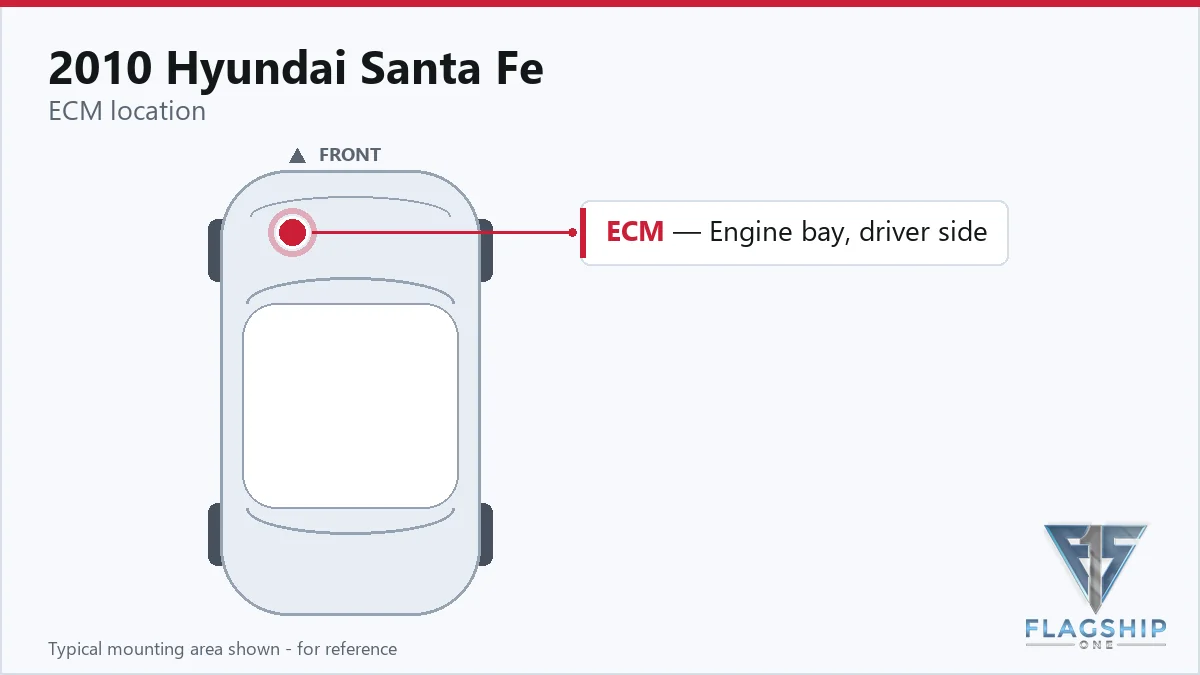

Where the PCM Is Located and What Replacement Involves
The ECM is located next to the air cleaner assembly, allowing access without removing major drivetrain components. The factory removal procedure reaches the control module in that position. Labor guidelines list 0.6 hours for removal and another 0.6 hours for reinstallation. After the unit is secured, the bolts should be tightened to a range of 7.8 to 11.8 N·m. The relearn process adds an additional 0.5 hours each for the ECM and PCM.
How to Reach the PCM on the 2010 Hyundai Santa Fe
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the ECM connector.
- Remove the air cleaner assembly.
- After removing the installation bolts, remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the ECM is installed, the factory service requires the vehicle identification number to be programmed into the module. Flagship One supplies a VIN-programmed replacement unit, so the VIN entry step is already completed when you receive the part. a VIN-programmed replacement unit eliminates the need for that particular programming action on the shop floor.
Symptoms of a Failing PCM
Typical signs of a failing ECM in this model include an illuminated check engine light, rough idle, stalling at low speed, or loss of power during acceleration. You may also see communication failures with diagnostic tools. In some cases the module records the internal processor fault internal processor fault which can prevent the engine from starting until cleared.
Module Trouble Codes on the 2010 Hyundai Santa Fe
The 2010 Hyundai Santa Fe may store the following internal diagnostic code related to the ECM:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Service Bulletin #10-01-018 addresses an ECM update when the MIL is on with DTC P0454. Technical Service Bulletin 11-FL-001 covers an ECM update for MIL on with DTC P0441. Both bulletins describe software revisions to resolve emissions-related warning lights.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 10-01-018 | CAMPAIGN • Campaign Bulletins • [10-01-018] ECM UPDATE – MIL ON WITH DTC P0454 (SERVICE CAMPAIG | — |
| — | TSB • Fuel System • [11-FL-001] ECM UPDATE – MIL ON WITH DTC P0441 | — |
Protecting the PCM in Your 2010 Hyundai Santa Fe
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean all ECM ground connections regularly.
- Use proper jump‑start techniques to prevent over‑voltage.
- Address any diagnostic codes promptly before they recur.
- Keep connector seals clean and intact to protect against moisture.
Frequently Asked Questions
What causes the ECM to fail on a 2010 Hyundai Santa Fe?
Common causes include water intrusion, voltage spikes from the alternator, or failed internal circuitry. Regular maintenance of the electrical system can reduce these risks.
Do I need special tools to reinstall the ECM on my Santa Fe?
A torque wrench is required to apply the specified bolt torque range of 7.8 to 11.8 N·m. No additional proprietary tools are listed in the factory procedure.
Can a refurbished ECM be used instead of a new one?
A refurbished unit that has been properly programmed with the vehicle VIN can function like a new module, provided it meets the torque and installation specifications.
When the ECM needs attention on your 2010 Hyundai Santa Fe, you can choose a professional repair or replace it with a refurbished unit that matches factory specifications. Understanding the removal location, labor expectations and programming requirements helps you decide the most efficient path to restore performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Hyundai Santa Fe with a lifetime warranty, free shipping and no core charge. The full Hyundai Santa Fe module lineup covers other engine configurations as well.
Final Thoughts
The 2010 Hyundai Santa Fe relies on a correctly installed and programmed ECM for reliable operation. Whether you repair the original or opt for a Flagship One replacement, ensuring proper torque and VIN programming will keep the vehicle running smoothly.
