2010 Nissan Xterra PCM Replacement: ECM Failure and Programming Guide
The Engine Control Module (ECM) in the 2010 Nissan Xterra 4.0L manages fuel, ignition, and emissions. Failure can cause drivability issues, check engine light, and stored trouble codes like P0605. The module is located under the hood and requires careful handling of its ground terminals.
Quick Summary
- ECM replacement book time is 1.8 hours plus 0.5 hours for relearn.
- Factory caution: never use ECM ground terminals for voltage measurement to avoid transistor damage.
- Module-internal trouble code P0605 indicates ECM internal fault.
- Pre-programmed units from Flagship One eliminate the need for factory relearn procedure.
If your 2010 Nissan Xterra 4.0L has developed a check engine light, intermittent stalling, or a no-start condition, the Engine Control Module (ECM) may be the culprit. The ECM is the brain of your engine management system, controlling fuel delivery, ignition timing, and emissions. When it fails, the vehicle may exhibit a range of drivability issues that can be difficult to diagnose without proper knowledge. This article explains what the ECM does in your Xterra, common failure symptoms, the replacement process, and the critical factory caution regarding voltage testing. You will also learn about the module-internal trouble code P0605 and how a pre-programmed replacement unit can simplify the repair. By understanding these details, you can make an informed decision about repairing or replacing the ECM in your 2010 Nissan Xterra.
What the PCM Does in a 2010 Nissan Xterra
The Engine Control Module (ECM) in the 2010 Nissan Xterra 4.0L is a sophisticated computer that continuously monitors and adjusts engine operation. It receives input from sensors such as the crankshaft position sensor, oxygen sensors, and throttle position sensor, then calculates the optimal fuel mixture, spark timing, and idle speed. The ECM also communicates with other modules like the Transmission Control Module (TCM) and Body Control Module (BCM) over the CAN bus to coordinate functions like shift timing and accessory control. In the Xterra, the ECM is particularly important for maintaining the balance between power and fuel economy in the 4.0L V6 engine. When the ECM malfunctions, it can cause erratic behavior, poor performance, and stored diagnostic trouble codes. For a reliable fix, many owners turn to replacement ECMs for the Xterra that are pre-programmed to match the vehicle’s VIN and options, eliminating the need for dealer programming.
Where the PCM Is Located and What Replacement Involves
The ECM on the 2010 Nissan Xterra 4.0L is located under the hood, typically mounted on the passenger side firewall near the battery. Access requires removing the air intake duct and possibly the battery tray to reach the module. The replacement procedure, according to factory book time, takes 1.8 hours for removal and installation. The ECM is secured with bolts and has multiple electrical connectors that must be carefully disconnected. After installation, the factory specifies a 0.5-hour relearn procedure to synchronize the module with the vehicle’s systems. A critical factory caution applies: never use the ECM ground terminals when measuring input or output voltage, as doing so may damage the ECM’s internal transistors. Always use a known good chassis ground for your multimeter.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM on a 2010 Nissan Xterra 4.0L, the factory procedure requires a relearn process that takes 0.5 hours. This step involves using a scan tool to initialize the module and teach it the vehicle’s specific parameters, such as throttle position and idle air flow. Without this relearn, the engine may run poorly or not start. However, when you purchase a VIN-programmed ECM from Flagship One, the module arrives already configured with your vehicle’s VIN and calibration data. This means the factory relearn procedure is already completed, so you can install the unit and start the engine without additional programming steps. This saves time and ensures the ECM is ready to operate correctly from the moment it is installed.
Symptoms of a Failing PCM
A failing ECM in the 2010 Nissan Xterra 4.0L can produce a variety of symptoms that may mimic other component failures. Common signs include a no-start condition where the engine cranks but does not fire, intermittent stalling while driving, and rough idle or misfires. The check engine light may illuminate with codes such as ECM internal fault indicating an internal module failure. You may also experience poor acceleration, reduced fuel economy, or transmission shifting issues because the ECM cannot properly communicate with the TCM. In some cases, a scan tool may fail to communicate with the ECM entirely, suggesting a dead module. Other symptoms include the engine running in a default limp-home mode with limited power, or the cooling fans running continuously. If you notice any of these issues, diagnosing the ECM should be a priority.
Module Trouble Codes on the 2010 Nissan Xterra
The following module-internal trouble code has been documented for the 2010 Nissan Xterra 4.0L: P0605. This code indicates an internal ECM malfunction, often requiring module replacement. No other module-internal codes are provided for this vehicle.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2010 Nissan Xterra
- Maintain a healthy charging system; replace the battery if it shows signs of weakness to avoid voltage fluctuations that can stress the ECM.
- Keep all engine and chassis ground connections clean and tight, as poor grounds can cause erratic ECM behavior.
- Avoid jump-starting the vehicle with a running donor car; instead, use a battery charger or follow the manufacturer’s jump-start procedure to prevent voltage spikes.
- Address any diagnostic trouble codes promptly, especially those related to sensors or actuators, to prevent secondary damage to the ECM.
- Inspect the ECM connector seals and the module housing for corrosion or moisture intrusion, and replace damaged seals immediately.
- Use dielectric grease on electrical connectors when reassembling to protect against moisture and corrosion.
Frequently Asked Questions
What does code P0605 mean on a 2010 Nissan Xterra?
P0605 is a module-internal trouble code that indicates an internal ECM fault. It often requires ECM replacement. A pre-programmed unit from Flagship One can resolve the issue without dealer programming.
Can I test the ECM on my 2010 Nissan Xterra without damaging it?
Yes, but you must follow the factory caution: never use the ECM ground terminals when measuring input or output voltage. Always use a known good chassis ground for your multimeter to avoid damaging the ECM’s transistors.
How long does it take to replace the ECM on a 2010 Nissan Xterra?
The factory book time for ECM removal and installation is 1.8 hours. An additional 0.5 hours is required for the relearn procedure if using a non-programmed unit. A pre-programmed unit eliminates the relearn step.
Will a used ECM from a salvage yard work on my 2010 Nissan Xterra?
A used ECM may work, but it must be reprogrammed with your vehicle’s VIN and calibration data. This typically requires dealer-level equipment. A pre-programmed unit from Flagship One is a more reliable option as it arrives ready to install.
What are common symptoms of a bad ECM in a 2010 Nissan Xterra?
Common symptoms include no-start, stalling, misfires, poor acceleration, transmission shifting issues, and the check engine light with code P0605. A scan tool may also fail to communicate with the ECM.
When your 2010 Nissan Xterra 4.0L experiences ECM failure, you have two main options: repair the existing module or replace it with a refurbished unit. Repairing a faulty ECM is often not cost-effective due to the complexity of internal circuitry. A refurbished replacement from Flagship One, pre-programmed to your vehicle’s VIN, offers a straightforward solution that avoids dealer programming costs and gets you back on the road quickly.

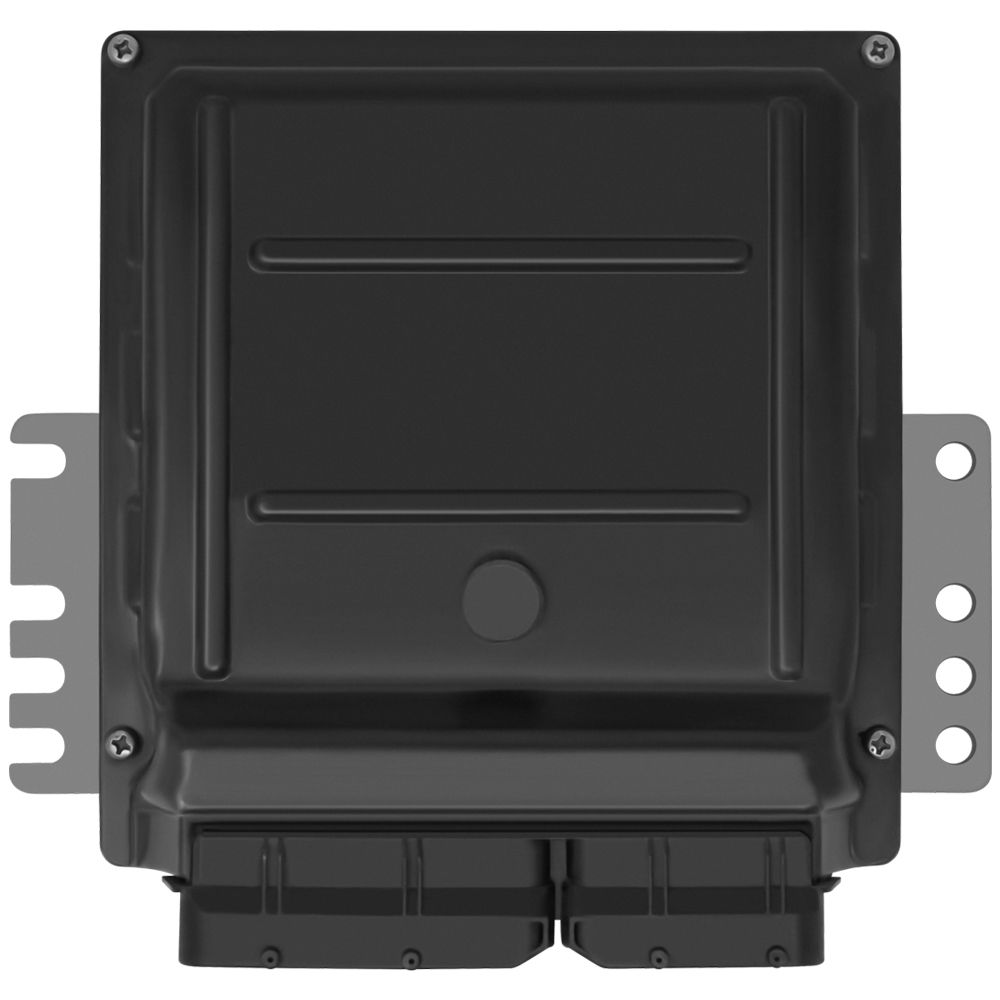

Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Nissan Xterra with a lifetime warranty, free shipping and no core charge. The full Nissan Xterra module lineup covers other engine configurations as well.
Final Thoughts
For your 2010 Nissan Xterra 4.0L, a failing ECM can be reliably addressed with a pre-programmed replacement from Flagship One. This approach saves time, eliminates the need for a factory relearn, and ensures the module is ready to operate correctly. Trust a proven source for your ECM replacement needs.
