2009 Pontiac Vibe 2.4L PCM and ECM Replacement Guide
The powertrain control module (PCM) in the 2009 Pontiac Vibe 2.4L manages engine and transmission functions. Failure can cause no-start, stalling, poor performance, and illuminated warning lights. Internal faults like P0601 indicate module damage requiring replacement.
Quick Summary
- The PCM is located in the engine compartment and requires 1.3 hours of labor for removal and replacement.
- The ECM (engine control module) replacement takes 0.7 hours, plus an additional 0.5 hours for a relearn procedure.
- Factory service bulletins address PCM reprogramming for oxygen sensor diagnostic trouble codes.
- Electrostatic discharge precautions are critical when handling the module to avoid damage.
- Add-on electrical equipment must be connected directly to the battery to prevent module harm.
If your 2009 Pontiac Vibe 2.4L is experiencing drivability issues, a failing powertrain control module (PCM) or engine control module (ECM) could be the cause. These modules are the brain of your vehicle’s engine and transmission management. This guide explains what these modules do, where they are located, common failure symptoms, and what replacement involves. You will learn about factory-recommended procedures, including reprogramming requirements, and how to protect the module from damage. Understanding these details helps you make an informed decision about repair or replacement.
What the PCM Does in a 2009 Pontiac Vibe
The powertrain control module (PCM) in the 2009 Pontiac Vibe 2.4L is a single unit that controls both engine and transmission operations. It receives data from sensors throughout the vehicle and adjusts fuel delivery, ignition timing, and shift points for optimal performance and emissions. The module operates at very low voltages and contains sensitive electronic components. When the PCM fails, it can disrupt communication with other systems, leading to poor drivability or a no-start condition. For this vehicle, you may need replacement engine computers for the Vibe that match the original specifications to restore proper function.

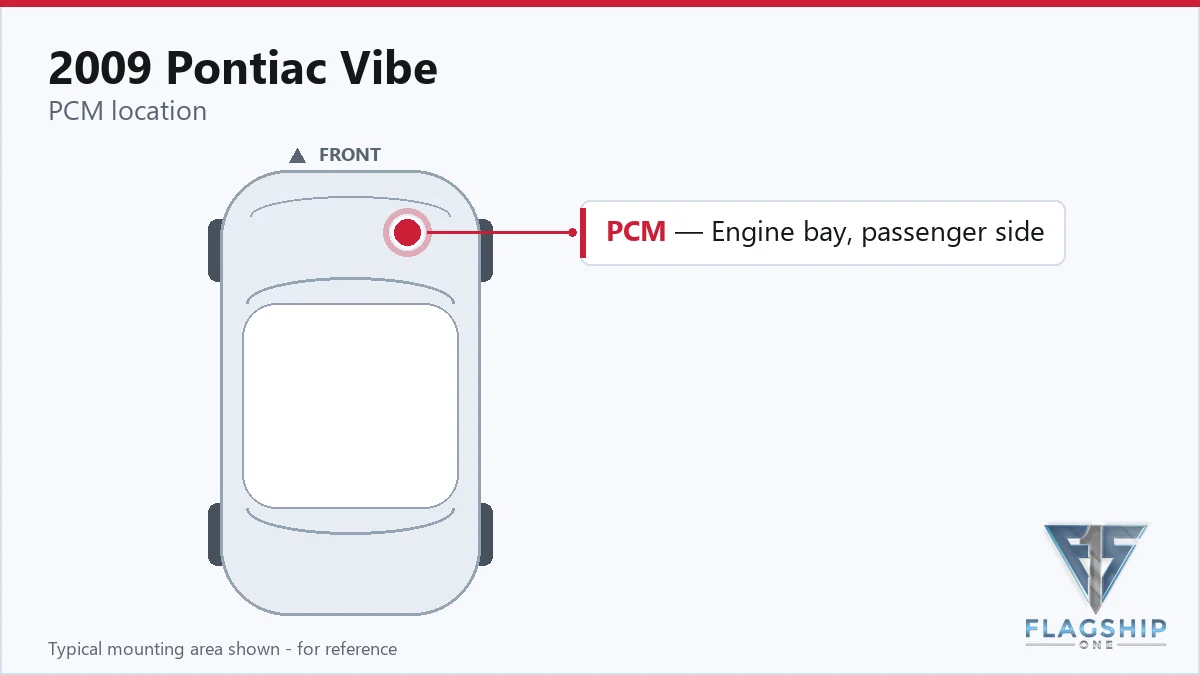

Where the PCM Is Located and What Replacement Involves
The PCM on the 2009 Pontiac Vibe 2.4L is mounted in the engine compartment. According to factory labor times, removing and replacing the PCM takes 1.3 hours. If you are replacing only the ECM (engine control module), the book time is 0.7 hours, followed by a 0.5-hour ECM relearn procedure. Access typically involves removing the air cleaner assembly or other components to reach the module. When handling the module, avoid touching connector pins or circuit board components to prevent electrostatic discharge damage. Always disconnect the battery before starting work and connect any add-on electrical equipment directly to the battery terminals.
How to Reach the PCM on the 2009 Pontiac Vibe
- Disconnect cable from negative battery terminal.
- Remove air cleaner assembly with hose.
- Disconnect the 2 ECM connectors.
- Remove the 3 bolts (2, 3, 4) and the.
- Remove the 4 screws (1, 2, 3, 4) and.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.3 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM or ECM on the 2009 Pontiac Vibe 2.4L, the factory procedure requires reprogramming the module with the correct software. A service bulletin describes downloading and installing a Vibe Programming Application for this purpose. Additionally, the ECM requires a relearn procedure that takes 0.5 hours. To simplify this, you can use a VIN-programmed replacement unit from Flagship One, which arrives with the correct programming already applied, so no further reprogramming or relearn is needed.
Symptoms of a Failing PCM
Common symptoms of a failing PCM or ECM in the 2009 Pontiac Vibe 2.4L include a no-start condition, intermittent stalling, rough idle, poor acceleration, and the malfunction indicator lamp (MIL) illuminating. You may also experience transmission shifting problems or a complete loss of communication with a scan tool. Diagnostic trouble codes such as P0031, P0138, and P2195 related to heated oxygen sensors have been addressed in factory bulletins. Internal module faults like internal control module fault P0601 indicate the PCM itself has failed and requires replacement.
Module Trouble Codes on the 2009 Pontiac Vibe
The PCM in the 2009 Pontiac Vibe 2.4L can store internal diagnostic trouble codes that point to module failure. These include P0601, P0602, P0603, P0604, P0606, P0607, P060A, P060D, P060E, P062F, and P1621. The following table lists these codes and their meanings.
Factory Service Bulletins Worth Knowing
Two factory service bulletins apply to the 2009 Pontiac Vibe 2.4L PCM. Bulletin #09-06-04-006A (May 29, 2009) covers downloading and installing the Vibe Programming Application for PCM reprogramming. Bulletin #11-06-04-003 (Feb 1, 2011) addresses a malfunction indicator lamp illuminated with DTCs P0031, P0138, and/or P2195. The repair involves diagnosing the heated oxygen sensors and then reprogramming the PCM.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-04-006 | Downloading and Installation of Vibe Programming Application for Reprogramming Powertrain Contr | — |
| 11-06-04-003 | Malfunction Indicator Lamp (MIL) Illuminated, DTC P0031, P0138 and/or P2195 Set (Diagnose Heate | Some customers may comment that the malfunction indicator lamp (MIL) is illuminated. A scan tool may reveal the following DTCs set as Current or in History:… |
Protecting the PCM in Your 2009 Pontiac Vibe
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the PCM.
- Keep battery and chassis grounds clean and tight to ensure stable voltage to the module.
- Avoid jump-starting the vehicle with a running donor vehicle; use a battery charger instead.
- Address any diagnostic trouble codes promptly to prevent further module stress.
- Inspect PCM connector seals for damage or corrosion and replace if needed.
- Never attach add-on vacuum operated equipment to this vehicle as it may interfere with the PCM.
Frequently Asked Questions
What is the difference between the PCM and ECM on a 2009 Pontiac Vibe?
The PCM (powertrain control module) controls both the engine and transmission. The ECM (engine control module) is a subset that manages only engine functions. In the 2009 Vibe, the PCM is the primary module, but some service procedures refer to the ECM separately for engine-specific tasks.
Can I replace the PCM on my 2009 Pontiac Vibe myself?
Yes, if you have mechanical experience. The PCM is located in the engine compartment and the factory book time for removal and replacement is 1.3 hours. However, you must follow electrostatic discharge precautions and ensure the replacement module is programmed for your vehicle. Flagship One offers pre-programmed units to simplify the process.
What does the ECM relearn procedure involve on a 2009 Pontiac Vibe?
After replacing the ECM, the vehicle requires a relearn procedure that takes 0.5 hours. This involves using a scan tool to reset adaptive values and allow the module to learn the engine’s idle and fuel trim parameters. If you use a pre-programmed unit from Flagship One, this step is already completed.
When your 2009 Pontiac Vibe 2.4L needs a PCM or ECM replacement, you have options: repair the original module or install a refurbished unit. Refurbished modules from Flagship One are tested and programmed to your vehicle’s VIN, eliminating the need for dealer reprogramming. This saves time and ensures the module is ready to install, restoring your Vibe’s performance without additional steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Pontiac Vibe with a lifetime warranty, free shipping and no core charge. The full Pontiac Vibe module lineup covers other engine configurations as well.
Final Thoughts
The 2009 Pontiac Vibe 2.4L relies on its PCM and ECM for proper engine and transmission operation. Recognizing symptoms like no-start or warning lights and understanding the replacement process helps you address failures efficiently. Flagship One provides pre-programmed replacement modules that simplify the repair, getting your Vibe back on the road quickly.
