2003 Pontiac Vibe Control Module Replacement and Programming
The control module in a 2003 Pontiac Vibe manages powertrain functions, interpreting sensor data to regulate fuel, spark and transmission behavior. Failure typically results from internal circuitry damage, leading to loss of engine control, error codes and reduced vehicle performance.
Quick Summary
- PCM removal and install requires about 0.8 hours of labor.
- ECM replacement also takes roughly 0.8 hours.
- A post‑install relearn of the ECM adds another 0.5 hours.
- Both modules are pre‑programmed at the factory with the vehicle VIN.
When a 2003 Pontiac Vibe experiences powertrain glitches, the control module is often the culprit. Understanding how the PCM and ECM function, where they sit, and what steps are needed after replacement can help you troubleshoot efficiently. This guide outlines the module’s role, the practical steps to swap it out, the programming requirements, and the typical signs of failure so you know what to expect and how to protect the new unit.
What the PCM Does in a 2003 Pontiac Vibe
In the 2003 Pontiac Vibe, the powertrain control module processes inputs from dozens of sensors to command fuel injection, ignition timing and transmission shifts. It ensures smooth acceleration, fuel economy and emissions compliance. Because it governs core engine operations, any malfunction can quickly affect drivability. The module works in concert with the engine control module, and together they form the vehicle’s electronic brain. Replacement units are typically referred to as 2003 Pontiac Vibe replacement PCM and are installed in the same location as the original.
Where the PCM Is Located and What Replacement Involves
The PCM resides beneath the instrument panel storage compartment, with its data link connector positioned on the left side below the panel. Removing the module involves disconnecting the connector pins after turning the ignition off, then unfastening any mounting hardware. Installation reverses the process, ensuring the connector is fully seated. The labor book cites 0.8 hours for the PCM swap and the same duration for the ECM, while an additional 0.5 hours is needed for the ECM relearn procedure.
How to Reach the PCM on the 2003 Pontiac Vibe
- Disconnect the battery.
- Remove the 2 retainers from the PCM close out.
- Open the I/P compartment.
- Release the safety catches.
- Remove the I/P compartment door assembly from the I/P.
- Remove the 2 PCM bracket fasteners.
- Pull the PCM with brackets.
- Disconnect the four PCM electrical.
- Remove the four fasteners and the two brackets.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for programming the unit with the vehicle’s VIN. Flagship One units arrive as a VIN-programmed replacement unit, so the VIN entry step is already completed, eliminating the need for on‑site coding.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2003 Pontiac Vibe include a no‑start condition, intermittent stalling, rough idle and loss of communication with scan tools. You may also see error codes such as P0601 communication failure and other internal diagnostics, which indicate the module is not processing data correctly.
Module Trouble Codes on the 2003 Pontiac Vibe
The following internal trouble codes have been documented for the 2003 Pontiac Vibe PCM and ECM:
Factory Service Bulletins Worth Knowing
Service bulletins #09-06-04-006 and #09-06-04-006A detail the download and installation of the Vibe Programming Application for reprogramming the PCM, dated May 29, 2009.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-04-006 | Downloading and Installation of Vibe Programming Application for Reprogramming Powertrain Contr | — |
Protecting the PCM in Your 2003 Pontiac Vibe
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean connector pins and ground points regularly.
- Use proper jump‑start procedures to prevent over‑voltage exposure.
- Address any diagnostic codes promptly before they recur.
- Keep connector seals intact to protect against moisture.
Frequently Asked Questions
Can I replace the PCM on my 2003 Pontiac Vibe myself?
The PCM can be removed and installed with the specified labor time, but you must follow factory cautions, avoid touching pins, and ensure the ignition is off before disconnecting any power sources.
Do I need to program the new PCM after installation?
Factory procedure requires VIN programming, but a Flagship One unit arrives pre‑programmed, so no additional coding is needed on the shop floor.
What does the ECM relearn step involve?
The relearn process calibrates the engine control module to the vehicle’s sensors and takes about half an hour of labor, as noted in the service manual.
When the PCM or ECM fails in a 2003 Pontiac Vibe, you can choose a new factory‑programmed replacement or consider a refurbished unit that meets the same specifications. Both options restore the vehicle’s electronic control functions, but a new unit guarantees the latest firmware and a full warranty.

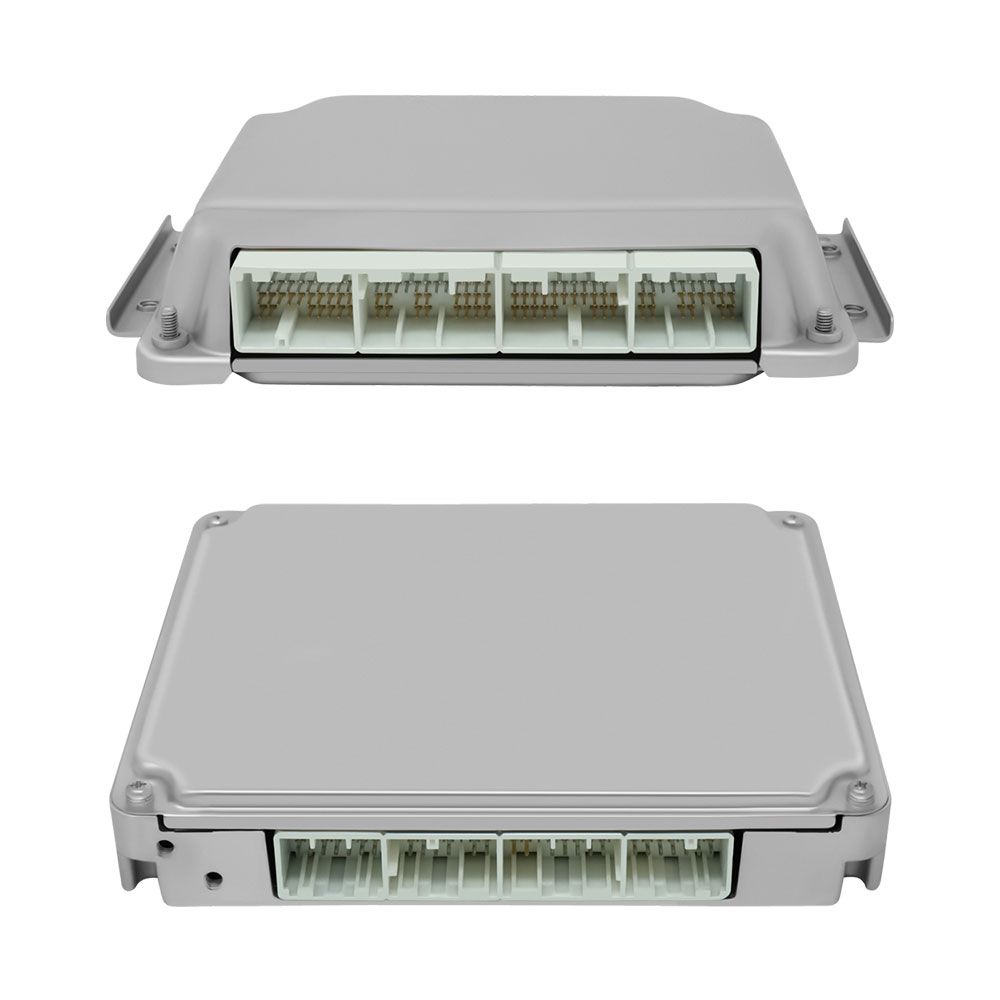

Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Pontiac Vibe with a lifetime warranty, free shipping and no core charge. The full Pontiac Vibe module lineup covers other engine configurations as well.
Final Thoughts
Replacing the powertrain control module in your 2003 Pontiac Vibe can resolve no‑start and performance issues. Follow the outlined steps, respect the cautions, and you’ll have the vehicle back on the road with reliable engine management. For further assistance, contact a qualified technician.
