2009 Mazda CX-7 PCM ECM Replacement and Programming Guide
The Powertrain Control Module on your 2009 Mazda CX-7 is the central computer managing engine operation, transmission shifting, and fuel delivery. When internal memory codes fail, the module may trigger a limp-mode condition or prevent the engine from starting altogether.
Quick Summary
- PCM or ECM replacement on a 2009 CX-7 requires both R&R and relearn procedures
- Book time for module R&R is 0.9 hours; relearn procedure adds 0.5 hours more
- Internal module codes like P0601 indicate memory checksum failures within the PCM itself
- Flagship One replacement units arrive VIN-programmed, eliminating dealer programming steps
If your 2009 Mazda CX-7 has stopped running or is running poorly and diagnostics point to the PCM or ECM, you are facing a significant repair decision. The Powertrain Control Module is the brain of your vehicle, and when it fails, the engine may not start, run poorly, or default to a reduced-power mode. This guide explains what these modules do, common failure symptoms, the labor involved in replacement, and what programming is required after installation. You will also learn how Flagship One units are pre-programmed to your vehicle’s VIN, saving you steps that would otherwise require a dealer visit.
What the PCM Does in a 2009 Mazda CX-7
The 2009 Mazda CX-7 uses a Powertrain Control Module that integrates engine and transmission control functions into a single unit. This computer monitors sensor inputs from across the engine bay and adjusts fuel delivery, ignition timing, and shift points in real time. It also serves as the communication hub for the CAN bus network, allowing other modules like the ABS unit and body control module to share data. When the internal processor or memory circuitry develops faults, replacement engine computers for the CX-7 may trigger check-engine lights, cause starting problems, or leave the vehicle in a no-start condition. Because the module controls critical drivability functions, its health directly determines whether your Mazda runs properly or becomes immobile.
Where the PCM Is Located and What Replacement Involves
The Powertrain Control Module on the 2009 CX-7 is typically located in the engine compartment, often near the firewall or battery area. Replacement involves accessing the module, disconnecting the battery, removing the unit from its mounting bracket, and transferring any remaining hardware or connectors to the new module. The book time for R&R is 0.9 hours, which covers the physical removal and installation. After the new module is installed, a relearn procedure must be performed to allow the PCM to adapt to your specific vehicle’s sensors and calibration, and this adds 0.5 hours of labor. Always use a quality torque wrench when securing mounting bolts and verify all connectors are fully seated before reassembly.

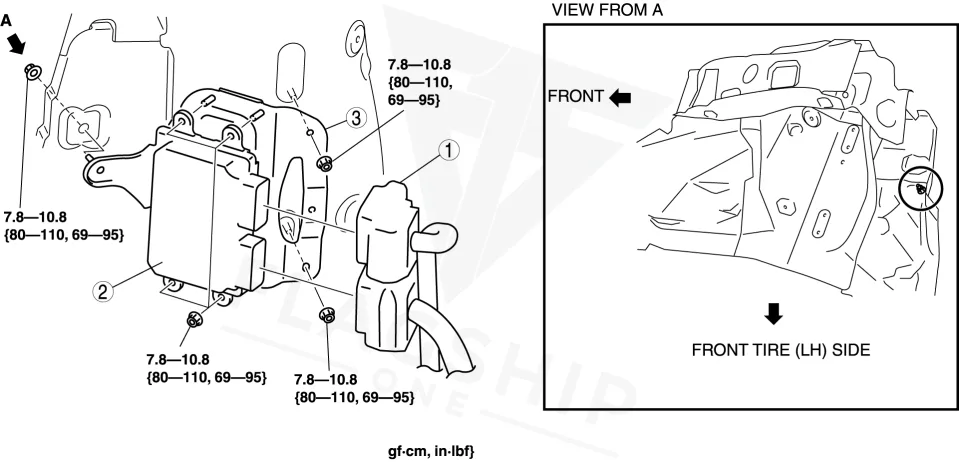

How to Reach the PCM on the 2009 Mazda CX-7
- Disconnect the negative battery cable.
- Remove the charge air cooler duct.
- Remove the Battery and battery tray.
- Remove the mudguard (LH).
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a replacement PCM on your CX-7, the factory procedure requires a relearn or initialization process so the new module can establish communication with the vehicle’s sensors and other control modules. This is not optional—the vehicle may not run correctly without it. However, Flagship One units ship as a VIN-programmed replacement unit, meaning the module arrives already matched to your vehicle’s specific VIN and calibration. This eliminates the need for you to visit a dealer for programming, though the post-install relearn procedure may still be recommended to ensure optimal drivability.
Symptoms of a Failing PCM
When the PCM or ECM fails on a 2009 Mazda CX-7, common symptoms include a no-start condition, engine stalling, or running in a reduced-power limp mode. You may see multiple trouble codes stored, including codes for loss of communication with other modules. Scan tools may fail to connect to the PCM entirely, or may connect only intermittently. Transmission shifting may become harsh or unpredictable, and the check-engine light often remains illuminated regardless of clearing codes. In some cases, the vehicle runs but exhibits chronic misfire symptoms that do not resolve with spark plug or fuel injector service. If your scan tool displays internal memory checksum failure or similar codes, the PCM itself has an internal fault that typically requires replacement rather than repair.
Module Trouble Codes on the 2009 Mazda CX-7
The following internal trouble codes have been documented on the 2009 Mazda CX-7 and indicate various levels of PCM or ECM internal failure. These codes are generated by the module itself rather than by external sensors, and they often point to the need for replacement.
Factory Service Bulletins Worth Knowing
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Mazda Tips: Module Replacement/Reprogramming Information | s SEE CHART BELOW INDICATING WHICH MODULES ARE PRESENT ON THE CX-7 AND IF THEY ARE PROGRAMMABLE AND OR |
| — | 07 002/09 Multi Model Air Conditioning Musty / Mildew Odor | — |
Protecting the PCM in Your 2009 Mazda CX-7
- Maintain your vehicle’s charging system—alternator overcharging or undercharging can stress the PCM’s electrical supply
- Keep battery terminals and ground connections clean and tight to prevent voltage spikes
- Avoid jump-starting from a vehicle with a running engine, as voltage surges can damage module circuitry
- Address check-engine lights promptly rather than driving with multiple fault codes active
- Inspect engine compartment connectors periodically for corrosion or damaged seals
Frequently Asked Questions
Can I replace the PCM on my 2009 Mazda CX-7 with a used unit from a salvage yard?
A used PCM from a salvage yard will typically require dealer programming to match your vehicle’s VIN and calibration. Without proper programming, the module will not communicate with your vehicle’s systems.
Will my 2009 Mazda CX-7 run after PCM replacement without any programming?
The vehicle may start, but it will likely run poorly, exhibit drivability issues, and may trigger additional fault codes. A relearn procedure is necessary for the module to properly adapt to your specific vehicle.
How do I know if my CX-7 needs a PCM or an ECM replacement?
On this vehicle, the functions are often combined in a single unit. If diagnostics show internal module codes like P0601 or loss of communication with multiple systems, the combined module typically requires replacement.
If your 2009 Mazda CX-7 requires a replacement PCM or ECM, you have two primary options: a new or refurbished unit from a dealer, or a VIN-programmed replacement from Flagship One. Dealer units often require additional programming fees and appointments. Flagship One units arrive pre-programmed to your vehicle’s specific VIN, reducing the post-install steps. Consider your budget, timeline, and mechanical comfort level when choosing your path forward.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Mazda CX-7 with a lifetime warranty, free shipping and no core charge. The full Mazda CX-7 module lineup covers other engine configurations as well.
Final Thoughts
The 2009 Mazda CX-7 relies on its Powertrain Control Module for virtually every aspect of engine and transmission operation. Module failure can leave you stranded or driving in a limited capacity. Understanding the labor involved, the programming requirements, and your replacement options helps you make an informed repair decision. Whether you choose dealer service or a pre-programmed unit from Flagship One, addressing PCM failure promptly restores your vehicle’s reliability.
