2008 Mazda CX-7 PCM ECM Control Module Replacement Guide
The Powertrain Control Module (PCM) and Engine Control Module (ECM) on your 2008 CX-7 are the central computers that manage engine operation, transmission shifting, emissions controls, and sensor inputs. Internal memory failures may stem from voltage spikes, moisture intrusion, or age-related degradation.
Quick Summary
- PCM and ECM are interchangeable terms for the same control computer on this vehicle
- PCM R&R book time is 0.9 hours; relearn procedure adds 0.5 hours
- Module may lose communication with scan tools, trigger various trouble codes, or cause no-start conditions
- Factory replacement requires programming and a relearn procedure to establish sensor baseline
If your 2008 Mazda CX-7 has stopped running properly, the Powertrain Control Module may be the culprit. This central computer manages critical engine functions, and when it fails, your vehicle may not start, run poorly, or display multiple warning lights. This guide explains what the module does, where it is located, the labor involved in replacement, and what the factory programming procedure requires. Whether you are diagnosing a no-start condition or comparing repair options, you will find the key facts needed to move forward confidently.
What the PCM Does in a 2008 Mazda CX-7
The PCM on your 2008 CX-7 serves as the brain of the powertrain, processing input from dozens of sensors and commanding fuel injection, ignition timing, variable valve timing, and transmission shift points. It communicates with the ABS module, instrument cluster, and other vehicle systems through the controller area network. When the internal memory becomes corrupted or the processor fails, the module may store internal fault codes such as P0601, lose the ability to communicate with a scan tool, or default to a limp-in mode that severely limits engine performance. Replacing replacement engine computers for the CX-7 restores proper operation only if the new unit is properly programmed to match your specific vehicle.

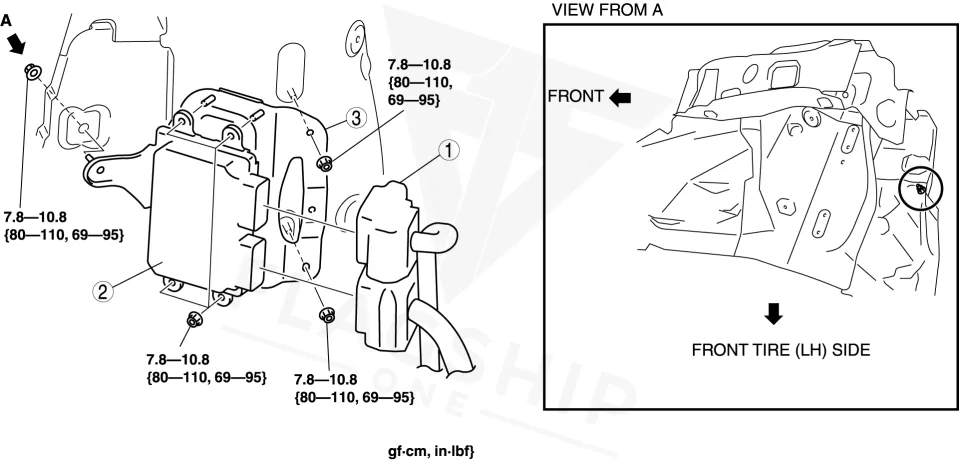

Where the PCM Is Located and What Replacement Involves
The control module on the 2008 CX-7 is located behind the driver’s side footwell kick panel, beneath the dashboard. Access requires removing the lower trim panels and the kick panel itself. The module is secured to a mounting bracket with several fasteners. Replacement involves disconnecting the battery, removing the old module, installing the new unit, and reconnecting the wiring harness. PCM R&R book time is 0.9 hours; if you are performing the work yourself, expect to spend additional time routing connectors and securing all fasteners properly. Reconnecting the battery ground is the final step before starting the vehicle.
How to Reach the PCM on the 2008 Mazda CX-7
- Disconnect the negative battery cable.
- Remove the charge air cooler duct.
- Remove the Battery and battery tray.
- Remove the mudguard (LH).
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new or remanufactured PCM, the factory procedure requires programming the module to match your vehicle’s VIN and configuration data. Once programming is complete, a relearn procedure must be performed to establish baseline values for the throttle position sensor, idle air control, and fuel system. This relearn process takes approximately 0.5 hours of book time. Flagship One units arrive VIN-programmed so those programming steps are already done when you receive the replacement, reducing the post-install procedure to the relearn only.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the PCM fails on this vehicle, you may experience a no-crank condition or the engine may crank but not start. Stalling and rough idle are common, particularly if the module loses communication with the crankshaft or camshaft position sensors. Misfire codes such as P0300 through P0304 may appear along with check engine light illumination. In some cases, the scan tool cannot communicate with the module at all, or only partial communication is possible. The module may also trigger codes related to controller area network failures, including U0100 (lost communication with ECM/PCM), U0121 (lost communication with ABS module), and U0140 (lost communication with body control module). If you have retrieved internal memory check sum error from the module, this strongly indicates PCM failure requiring replacement.
Module Trouble Codes on the 2008 Mazda CX-7
The following module-internal trouble codes have been documented on the 2008 CX-7 and indicate various levels of internal PCM failure or communication loss with other vehicle modules:
Factory Service Bulletins Worth Knowing
Factory service bulletin 07 002/09 addresses air conditioning musty or mildew odors, which is unrelated to PCM function but may be performed during related work. More relevant is bulletin 01 003/09, which covers MIL illumination with DTC P0441 (incorrect vent flow) — a generic evaporative emissions code that may trigger alongside PCM-related codes if the module is malfunctioning. The bulletin reference to programmable versus configurable modules on the CX-7 indicates that not all control units can be reprogrammed, so verification of compatibility is essential before ordering a replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Mazda Tips: Module Replacement/Reprogramming Information | s SEE CHART BELOW INDICATING WHICH MODULES ARE PRESENT ON THE CX-7 AND IF THEY ARE PROGRAMMABLE AND OR |
| — | 07 002/09 Multi Model Air Conditioning Musty / Mildew Odor | — |
| — | 01 003/09 Multi Model MIL Illumination DTC P0441 | — |
Protecting the PCM in Your 2008 Mazda CX-7
- Maintain the charging system: a failing alternator or weak battery can create voltage spikes that damage the PCM
- Keep ground connections clean and secure: poor grounds can cause voltage fluctuations that stress the module
- Avoid jump-starting from incorrect polarity: reverse polarity can send destructive voltage spikes to the module
- Address check engine lights promptly: ignoring codes allows underlying issues to worsen over time
- Protect connector seals during car washes or severe weather: moisture intrusion can corrode internal circuits
Frequently Asked Questions
Will any 2008 CX-7 PCM work for my vehicle?
No. The module must be matched to your specific VIN and configuration. Using an incorrect unit may cause the vehicle not to start or trigger multiple fault codes.
Can I replace the PCM myself on a 2008 CX-7?
Mechanical replacement is straightforward for someone with moderate DIY experience, but programming typically requires dealer-grade software or a professional tuning tool.
How do I know if my CX-7 has a PCM or separate ECM?
On this vehicle, the powertrain control functions are integrated into a single module commonly referred to as the PCM, though some parts vendors may list it as the ECM.
If your 2008 CX-7 requires a new control module, you have two primary paths: a new or remanufactured unit from a dealer, or a VIN-programmed replacement from Flagship One. Dealer units arrive blank and require programming at the dealer at additional cost. Flagship One units arrive pre-programmed to your VIN, so you only need to perform the relearn procedure. Consider your budget, timeline, and access to programming tools when choosing.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Mazda CX-7 with a lifetime warranty, free shipping and no core charge. The full Mazda CX-7 module lineup covers other engine configurations as well.
Final Thoughts
The 2008 Mazda CX-7 relies on its PCM for proper engine operation, and module failure can leave you stranded. Understanding the labor times, programming requirements, and symptoms helps you make an informed repair decision. Whether you choose dealer replacement or a pre-programmed unit from Flagship One, getting your CX-7 back on the road depends on matching the correct module to your vehicle and completing the required post-install procedure.
