2007 Mazda CX-7 2.3L PCM and ECM Replacement Guide
The Powertrain Control Module (PCM) in your 2007 Mazda CX-7 2.3L manages engine and transmission functions. The Engine Control Module (ECM) is a subset that primarily controls engine operation. Failure of either module can cause drivability issues, no-start conditions, and communication faults.
Quick Summary
- The 2007 Mazda CX-7 2.3L uses both an ECM and a PCM; the PCM may include immobilizer functions.
- Replacing the ECM requires 0.9 hours of labor; PCM replacement ranges from 0.4 to 0.5 hours depending on immobilizer presence.
- After module replacement, a relearn procedure (0.5 hours) is required to synchronize the module with the vehicle.
- Factory service bulletins address proper TCM reprogramming and module replacement information for the CX-7.
- Common trouble codes include P0601, P0603, P0604, U0100, U0121, and U0140, indicating internal faults or communication loss.
If your 2007 Mazda CX-7 2.3L is experiencing erratic shifting, stalling, or a no-start condition, the engine or powertrain control module may be at fault. These modules are the brain of your vehicle’s engine and transmission management. This guide explains what the ECM and PCM do in your CX-7, where they are located, how replacement is performed, and what programming steps are needed. You will also learn about common failure symptoms, relevant trouble codes, and factory service bulletins that apply to your vehicle. Understanding these components helps you make an informed decision about repair or replacement.
What the PCM Does in a 2007 Mazda CX-7
In the 2007 Mazda CX-7 2.3L, the Engine Control Module (ECM) and Powertrain Control Module (PCM) work together to manage engine performance, fuel delivery, ignition timing, and transmission operation. The ECM focuses on engine-specific tasks, while the PCM integrates engine and transmission control into a single unit. This vehicle may have separate modules or a combined unit depending on the configuration. The PCM also handles immobilizer functions if equipped, which adds a layer of security. When these modules fail, they can disrupt communication with sensors and actuators, leading to poor drivability or a non-running condition. For reliable operation, you need a properly functioning module. If you are considering a replacement, look for replacement engine computers for the CX-7 that are pre-programmed to match your vehicle’s VIN and specifications.
Where the PCM Is Located and What Replacement Involves
The ECM and PCM in the 2007 Mazda CX-7 2.3L are typically mounted in the engine bay or under the dashboard. According to factory labor times, replacing the ECM takes 0.9 hours, while PCM replacement requires 0.4 hours without an immobilizer system or 0.5 hours with one. The procedure involves disconnecting the battery, accessing the module, removing electrical connectors and mounting bolts, then installing the new unit. After installation, the module must be programmed or relearned to communicate with the vehicle’s systems. The labor times reflect the physical R&R only; additional time is needed for programming.

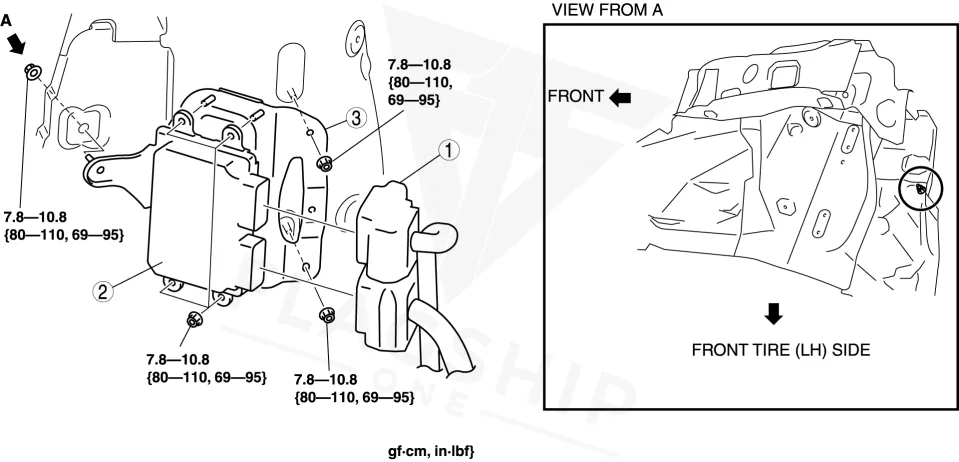

How to Reach the PCM on the 2007 Mazda CX-7
- Disconnect the negative battery cable.
- Remove the charge air cooler duct.
- Remove the Battery and battery tray.
- Remove the mudguard (LH).
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | Without Immobilize System | 0.4 hr |
| Powertrain Control Module R&R | With Immobilize System | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM or PCM in your 2007 Mazda CX-7 2.3L, the factory procedure requires a relearn process that takes 0.5 hours. This step synchronizes the module with the immobilizer system, throttle position, and other adaptive values. Mazda also issued a service bulletin (05 012/06) for proper TCM reprogramming. To simplify this, Flagship One provides a VIN-programmed replacement unit that arrives ready to install, with all programming already completed so you can skip the relearn step and get back on the road faster.
Symptoms of a Failing PCM
When the ECM or PCM begins to fail in your 2007 Mazda CX-7 2.3L, you may notice symptoms such as intermittent stalling, hard starting, misfire codes, or a no-start condition. The check engine light may illuminate with codes like internal control module memory error indicating a checksum fault. Other common issues include loss of communication with the transmission control module (U0100), loss of communication with the ABS module (U0121), or loss of communication with the body control module (U0140). These faults can cause erratic shifting, reduced power, or a dead scan-tool connection. Addressing these symptoms promptly can prevent further drivability problems.
Module Trouble Codes on the 2007 Mazda CX-7
The following trouble codes are documented for the 2007 Mazda CX-7 2.3L and relate to internal module faults or communication failures. These codes may appear when the ECM or PCM is malfunctioning.
Factory Service Bulletins Worth Knowing
Mazda has issued service bulletins relevant to the 2007 CX-7 2.3L. Bulletin 05 012/06 provides instructions for proper TCM reprogramming. Another bulletin, titled ‘Module Replacement/Reprogramming Information,’ includes a chart that indicates which modules are present on the CX-7 and whether they are programmable or configurable. This information is useful when replacing or reprogramming the ECM or PCM. Note that a separate bulletin (07 002/09) addresses air conditioning musty/mildew odor and is not related to module issues.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Mazda Tips: Proper TCM Reprogramming For S/B 05 012/06 | — |
| — | Mazda Tips: Module Replacement/Reprogramming Information | s SEE CHART BELOW INDICATING WHICH MODULES ARE PRESENT ON THE CX-7 AND IF THEY ARE PROGRAMMABLE AND OR |
| — | 07 002/09 Multi Model Air Conditioning Musty / Mildew Odor | — |
Protecting the PCM in Your 2007 Mazda CX-7
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the ECM or PCM.
- Keep battery and ground connections clean and tight to ensure stable voltage to the modules.
- Avoid jump-starting the vehicle with reversed polarity or using a fast charger directly on the battery.
- Address diagnostic trouble codes promptly to prevent secondary damage to the control modules.
- Inspect connector seals and wiring harnesses for corrosion or damage, especially in the engine bay.
- Use only factory-specification fuses and relays to protect the module from electrical overload.
Frequently Asked Questions
How do I know if the ECM or PCM in my 2007 Mazda CX-7 2.3L needs replacement?
Common signs include a no-start condition, stalling, misfire codes, or communication loss with other modules. Diagnostic trouble codes such as P0601, P0603, or U0100 often point to internal module failure. A professional scan tool can confirm the issue.
Can I replace the PCM in my 2007 Mazda CX-7 2.3L myself?
Replacement is possible if you have mechanical experience, but the labor time is 0.4 to 0.5 hours for the PCM. The main challenge is the required relearn procedure (0.5 hours) which may need a dealer-level scan tool. Using a pre-programmed unit from Flagship One eliminates that step.
What is the difference between the ECM and PCM on a 2007 Mazda CX-7 2.3L?
The ECM (Engine Control Module) manages engine functions like fuel and ignition. The PCM (Powertrain Control Module) integrates engine and transmission control. In some configurations, the CX-7 may have a combined PCM that also handles immobilizer duties. The labor times differ: ECM R&R is 0.9 hours, PCM R&R is 0.4–0.5 hours.
When your 2007 Mazda CX-7 2.3L needs a new ECM or PCM, you have options: repair the existing module or replace it with a refurbished unit. Repair may be cost-effective for minor issues, but replacement with a pre-programmed module ensures reliability. Flagship One offers VIN-programmed units that match your vehicle’s specifications, saving you the time and cost of dealer programming.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 Mazda CX-7 with a lifetime warranty, free shipping and no core charge. The full Mazda CX-7 module lineup covers other engine configurations as well.
Final Thoughts
The ECM and PCM are critical to the performance of your 2007 Mazda CX-7 2.3L. Recognizing failure symptoms early and using a pre-programmed replacement can restore drivability quickly. Flagship One provides ready-to-install modules that eliminate the need for post-install programming, getting you back on the road with confidence.
