2009 Chevrolet Uplander ECM Guide: Location, Programming, Symptoms

If you own a 2009 Chevrolet Uplander with the 3.9L engine and are experiencing intermittent starting issues, warning lights, or communication failures, the engine control module (ECM) may be involved. This guide explains what the ECM does in your Uplander, where it is located, and what the factory procedure requires for replacement and programming. You will also learn about common symptoms, related trouble codes, and a factory service bulletin that addresses connector corrosion. Understanding these points helps you decide whether to repair or replace the module and ensures you avoid misdiagnosis after service.

What the ECM Does in a 2009 Chevrolet Uplander

The engine control module (ECM) in the 2009 Chevrolet Uplander is the central computer that manages engine operation. It controls fuel delivery, ignition timing, idle speed, and emissions systems based on sensor inputs. When the ECM fails, the vehicle may not start, may stall unpredictably, or may illuminate the malfunction indicator lamp (MIL). Because the Uplander relies on this module for driveability and diagnostics, a faulty ECM can also prevent scan tool communication with other modules. If you need replacement ECMs for the Uplander, understanding the factory removal and programming steps is essential to avoid future issues. The module is designed to last, but electrical stress, corrosion, or internal component failure can compromise its function.

Where the ECM Is Located and What Replacement Involves

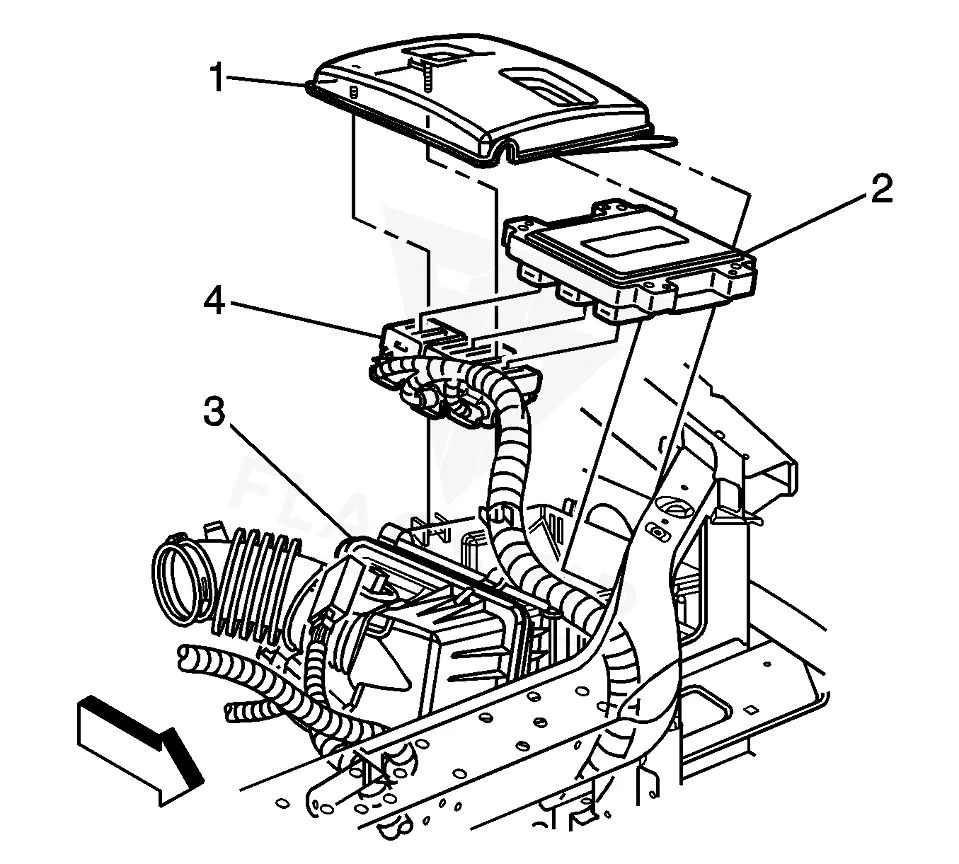

The factory removal procedure for the 2009 Chevrolet Uplander ECM reaches the control module next to the air cleaner assembly. This placement means you typically access the module by removing the air cleaner housing or its ductwork. Before beginning, the factory advises connecting any add-on electrically operated equipment directly to the 12 V battery (power and ground) to prevent damage to the vehicle’s electrical system. Aftermarket electrical or vacuum equipment should also be connected at the battery. During replacement, disconnect the battery negative cable, unbolt the module, and disconnect the wiring harness connectors. The factory also recommends using a scan tool to capture ECM data before removal. No specific labor time is provided in the available service information, but the location is straightforward for a technician familiar with the vehicle.

Programming Requirements After Replacement

After installing a new or replacement ECM, the factory procedure requires special equipment and the correct program and calibration for the vehicle. You must first capture the original ECM data with a scan tool before removal. Once the new module is installed, turn the ignition off for 30 seconds, then turn the ignition on with the engine off to complete the initialization. Flagship One supplies a VIN-programmed replacement ECM that arrives ready to install, so these post-install programming steps are already handled. This eliminates the need for dealer-level scan tools and calibration downloads, saving time and ensuring the module communicates properly with the Uplander’s systems.

Symptoms of a Failing ECM

A failing ECM in the 2009 Chevrolet Uplander often produces intermittent symptoms that can be hard to reproduce. Common complaints include a no-crank or no-start condition that comes and goes, the malfunction indicator lamp (MIL) illuminating without a clear pattern, and warning messages appearing on the driver information center. The vehicle may stall while driving or hesitate during acceleration. Scan tool communication may drop out intermittently, making diagnosis difficult. One specific internal fault, internal control module memory error, indicates a checksum failure in the ECM’s memory. Other related codes include P0602 (programming error), P0603 (keep-alive memory error), and P0606 (internal processor fault). These symptoms often point to the ECM rather than a sensor or wiring issue.

Module Trouble Codes on the 2009 Chevrolet Uplander

The following diagnostic trouble codes are module-internal faults documented for the 2009 Chevrolet Uplander ECM. These codes indicate problems within the control module itself rather than external sensors or circuits.

Factory Service Bulletins Worth Knowing

Factory service bulletin #09-06-03-004E (revised November 28, 2011) addresses intermittent no-crank/no-start, no module communication, MIL illumination, warning lights, and vehicle messages on the 2009 Chevrolet Uplander. The condition may also include DTCs set by various control modules. The bulletin notes that the technician may be unable to duplicate the intermittent condition. The recommended repair is to disconnect the affected connector and apply dielectric lubricant to prevent fretting corrosion. This TSB applies to the ECM and other module connectors. Following this procedure can resolve intermittent electrical issues without replacing the module.

Protecting the ECM in Your 2009 Chevrolet Uplander

• Maintain the charging system in good condition; voltage spikes from a failing alternator can damage the ECM.
• Keep battery and chassis ground connections clean and tight to ensure stable voltage reference.
• Avoid jump-starting the vehicle with a running donor vehicle; connect cables only to a dead battery.
• Address any diagnostic trouble codes promptly, especially module-internal codes like P0601 or P0606.
• Inspect ECM connector seals for damage or moisture intrusion, and apply dielectric grease if needed.

Frequently Asked Questions

Where is the ECM located on a 2009 Chevrolet Uplander?

The ECM is mounted next to the air cleaner assembly. The factory removal procedure accesses it from that position, typically requiring removal of the air cleaner housing or ductwork.

What should I do before removing the ECM from my 2009 Uplander?

The factory recommends using a scan tool to capture the ECM data before removal. This preserves the vehicle’s learned values and calibration information for the replacement module.

Can I install a used ECM in my 2009 Chevrolet Uplander?

A used ECM must be reprogrammed with the correct program and calibration for your vehicle. The factory procedure requires special equipment. A VIN-programmed unit from Flagship One arrives ready to install, avoiding that step.

When your 2009 Chevrolet Uplander ECM fails, you have options: repair the original module or replace it with a refurbished unit. Repair may be possible for simple issues like connector corrosion, but internal faults often require replacement. A refurbished ECM that is pre-programmed to your VIN eliminates the need for dealer programming and gets your Uplander back on the road quickly.

Flagship One stocks a refurbished, VIN-programmed ECM for the 2009 Chevrolet Uplander with a lifetime warranty, free shipping and no core charge. The full Chevrolet Uplander module lineup covers other engine configurations as well.

Final Thoughts

The 2009 Chevrolet Uplander ECM is a critical component that can cause intermittent no-start, warning lights, and communication failures. Knowing its location next to the air cleaner and the factory programming steps helps you make an informed repair decision. Flagship One offers VIN-programmed replacement ECMs that simplify the process and restore reliable operation.
