2005 Chevrolet Uplander PCM/ECM Replacement and Common Issues
The Powertrain Control Module (PCM) in the 2005 Chevrolet Uplander manages engine and transmission functions. Failures may cause erratic performance, warning lights, or communication errors with diagnostic tools.
Quick Summary
- The PCM controls engine and transmission operations in the 2005 Uplander.
- Replacement typically requires 0.9 hours for removal and installation.
- A relearn procedure adds 0.5 hours to restore vehicle-specific data.
- Factory cautions emphasize capturing PCM data before removal.
- Common symptoms include no-start conditions, stalling, or warning lights.
If your 2005 Chevrolet Uplander is experiencing unexplained stalling, a no-start condition, or an illuminated check engine light, the Powertrain Control Module (PCM) may be the culprit. This critical component oversees engine and transmission performance, and its failure can disrupt communication between systems. Replacing the PCM involves precise steps, including data capture and relearn procedures, to ensure proper functionality. Understanding these processes helps you make informed decisions about repairs and avoid unnecessary complications.
What the PCM Does in a 2005 Chevrolet Uplander
The Powertrain Control Module (PCM) in your 2005 Chevrolet Uplander acts as the brain for engine and transmission operations. It monitors sensors, adjusts fuel delivery, and controls ignition timing to optimize performance. A faulty PCM may lead to poor drivability, reduced fuel efficiency, or even prevent the vehicle from starting. When replacement becomes necessary, choosing replacement engine computers for the Uplander ensures compatibility and proper functionality. Without a functioning PCM, critical systems may fail to communicate, leaving your vehicle inoperable.
Where the PCM Is Located and What Replacement Involves

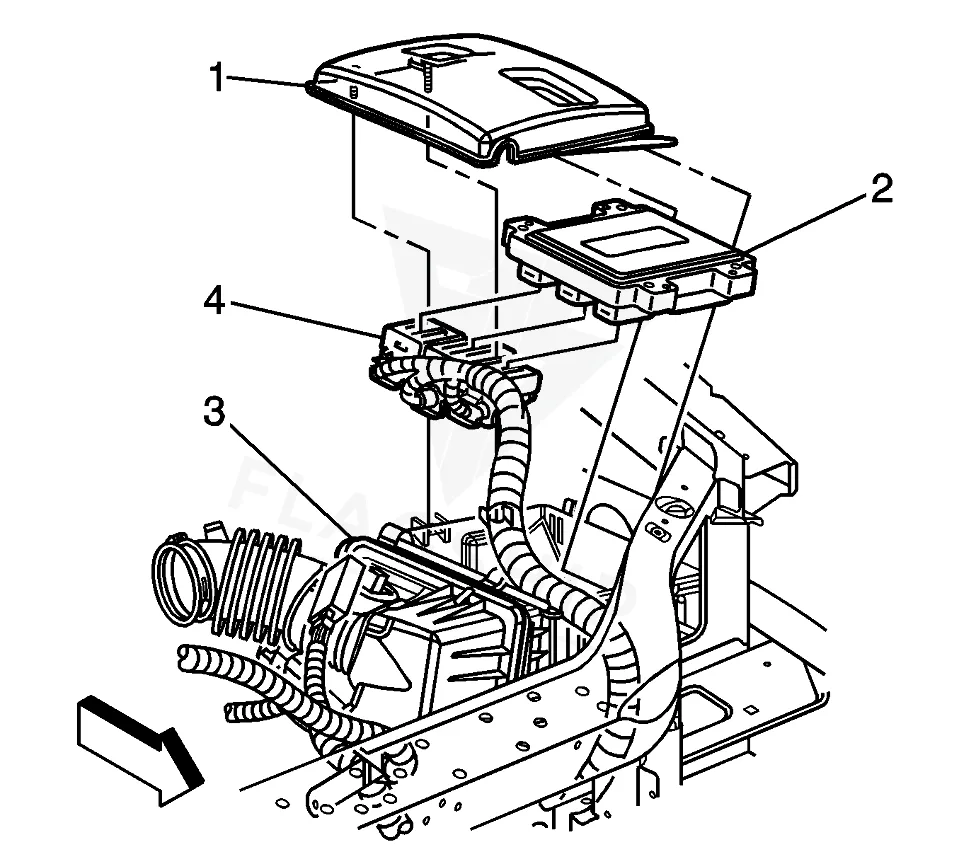

The PCM in the 2005 Chevrolet Uplander is located next to the air cleaner assembly, making it relatively accessible for replacement. The factory procedure involves removing the module, which typically takes 0.9 hours of labor. After installation, a relearn process is required, adding another 0.5 hours to the job. This step ensures the new module syncs with the vehicle’s systems. While the location simplifies access, proper handling is essential to avoid damaging connectors or the module itself during removal.
How to Reach the PCM on the 2005 Chevrolet Uplander
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the left sheet metal diagonal brace.
- Remove the air cleaner assembly cover and lift the PCM from the air cleaner.
- Disconnect the harness connectors from the PCM.
- Remove the PCM from the engine compartment.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Before removing the PCM in your 2005 Uplander, the factory procedure requires capturing the module’s data using a scan tool. This data must be restored into the new PCM to maintain vehicle-specific settings. However, a VIN-programmed replacement unit arrives pre-configured, eliminating the need for this step. This saves time and reduces the risk of errors during the installation process. Always follow the manufacturer’s guidelines to ensure a smooth transition and avoid potential drivability issues.
Symptoms of a Failing PCM
A failing PCM in the 2005 Chevrolet Uplander may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice warning lights on the dashboard or poor transmission shifting. In some cases, diagnostic trouble codes like internal control module memory checksum error appear, indicating a fault within the module itself. If your vehicle exhibits these issues, a thorough diagnostic check can help determine whether the PCM is the root cause.
Module Trouble Codes on the 2005 Chevrolet Uplander
The 2005 Chevrolet Uplander may log several trouble codes related to PCM failures. These codes often point to internal module issues or communication errors. Reviewing them can help pinpoint the problem before replacement.
Factory Service Bulletins Worth Knowing
Several service bulletins address PCM-related issues in the 2005 Chevrolet Uplander. Bulletin #06-06-04-003 (updated in #06-06-04-003D) describes a condition where the Service Engine Soon light illuminates, often accompanied by codes P1404 or P0404, which may lead to EGR valve and PCM replacements. Another bulletin, #05-06-04-060, covers multiple trouble codes (P0601, P0602, P0603, P0604, P1621) shared across modules. Bulletin #06-06-04-049 notes intermittent extended crank times on hot restarts, sometimes with the starter failing to disengage, requiring PCM reprogramming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 06-06-04-003 | Service Engine Soon (SES) Light Illuminated, Multiple Powertrain Control Module (PCM) Diagnosti | Some customers may comment on a Service Engine Soon (SES) light illuminated on the instrument cluster. Some vehicles may have previously been serviced for this… |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
| 06-06-04-049 | LX9 Engine Only, Intermittent Extended Crank Time on Hot Engine Restart, Starter Motor May Not | Some customers may comment on an intermittent extended crank time on hot engine restart and the starter motor may not disengage after engine |
Protecting the PCM in Your 2005 Chevrolet Uplander
- Maintain a healthy charging system to avoid voltage spikes that may damage the PCM.
- Keep electrical connections clean and secure to prevent corrosion or poor contact.
- Avoid jump-starting with improper voltage, as it can harm sensitive electronics.
- Address warning lights or trouble codes promptly to prevent further damage.
- Ensure connector seals remain intact to protect against moisture intrusion.
- Use a battery maintainer during long periods of inactivity to preserve system health.
Frequently Asked Questions
Why does my 2005 Uplander crank but not start after PCM replacement?
If the PCM data wasn’t properly captured or restored, the vehicle may fail to start. A VIN-programmed replacement unit avoids this issue by arriving pre-configured. Always verify the relearn procedure was completed correctly.
Can I drive my 2005 Uplander with a P0601 code?
While the vehicle may still run, a P0601 code indicates an internal PCM fault. Driving with this issue may lead to further drivability problems or leave you stranded. It’s best to address it promptly.
How do I know if my 2005 Uplander’s PCM needs replacement or reprogramming?
A diagnostic scan can reveal whether the PCM is logging internal faults or if reprogramming might resolve the issue. If multiple codes persist after reprogramming, replacement may be necessary.
When the PCM in your 2005 Chevrolet Uplander fails, you have options. A repair shop may attempt reprogramming or offer a refurbished unit, but these can introduce delays or compatibility issues. A VIN-programmed replacement ensures a seamless installation, saving time and reducing the risk of post-installation problems. Consider your needs and the vehicle’s condition when deciding the best path forward.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Chevrolet Uplander with a lifetime warranty, free shipping and no core charge. The full Chevrolet Uplander module lineup covers other engine configurations as well.
Final Thoughts
The 2005 Chevrolet Uplander relies on its PCM for smooth engine and transmission operation. If you’re facing drivability issues or warning lights, addressing the PCM promptly can restore performance and reliability. Whether you choose a repair or replacement, understanding the process helps you make the best decision for your vehicle.
