2008 Pontiac Torrent 3.4L PCM/ECM Replacement & Programming Guide
The Powertrain Control Module (PCM) or Engine Control Module (ECM) in the 2008 Pontiac Torrent 3.4L manages fuel injection, ignition timing, and emissions. Failure can cause no-start, stalling, poor performance, and diagnostic trouble codes like P0601 through P1621.
Quick Summary
- Replacing the PCM/ECM on a 2008 Pontiac Torrent 3.4L has a book time of 0.9 hours for removal and installation.
- Factory procedure requires capturing ECM data and recording remaining engine oil and transmission fluid life before removal.
- After installation, a 0.5-hour ECM relearn procedure is needed to restore data and calibrations.
- Service bulletin #PI0777 addresses an oil life monitor calibration update that requires ECM reprogramming.
- Flagship One supplies pre-programmed units that eliminate the need for dealer-level programming steps.
If your 2008 Pontiac Torrent 3.4L is experiencing no-start conditions, stalling, or an illuminated check engine light, the engine control module (ECM) or powertrain control module (PCM) may be at fault. This module is the brain of your vehicle’s engine management system, controlling fuel delivery, ignition timing, and transmission shift points. Understanding the replacement process and the critical programming steps can save you time and frustration. This guide covers the factory-recommended procedures, including data capture and oil life recording, and explains how a pre-programmed replacement unit from Flagship One simplifies the job.
What the PCM Does in a 2008 Pontiac Torrent
The PCM/ECM in the 2008 Pontiac Torrent 3.4L is a single module that integrates engine and transmission control. It receives input from sensors like the crankshaft position sensor and oxygen sensors, then adjusts fuel injectors, ignition coils, and the throttle actuator to maintain performance and emissions compliance. This module also monitors the engine oil life and automatic transmission fluid life based on driving conditions. When it fails, the vehicle may not start, may stall unpredictably, or may set diagnostic trouble codes such as P0601 (internal control module memory error). For a reliable fix, you need replacement engine computers for the Torrent that are correctly programmed for your VIN and options.
Where the PCM Is Located and What Replacement Involves
The PCM/ECM on the 2008 Pontiac Torrent 3.4L is typically located in the engine bay, mounted near the firewall or on the inner fender. Replacement involves disconnecting the battery, removing electrical connectors, and unbolting the module from its bracket. The factory book time for removal and installation is 0.9 hours. No special tools are required beyond basic hand tools, but care must be taken to avoid damaging the connector pins or the module housing. After installation, a 0.5-hour ECM relearn procedure is necessary to restore the captured data and calibrations.

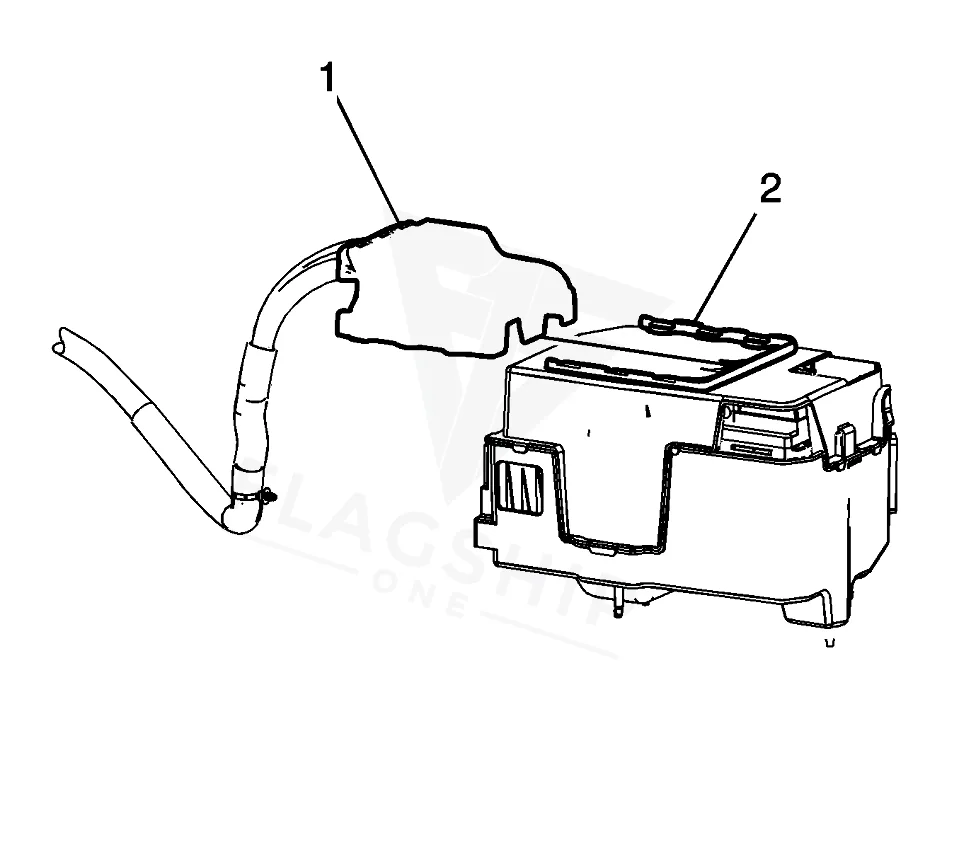

How to Reach the PCM on the 2008 Pontiac Torrent
- Remove any debris from around the control module connector.
- Release the ECM bracket from the battery cover.
- Release the retaining tabs on the ECM bracket and slide the ECM out of it.
- Disconnect the engine wiring harness electrical connectors from the ECM.
- Slide the ECM into the ECM bracket until it locks into place.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory procedure for replacing the ECM on the 2008 Pontiac Torrent 3.4L requires using a scan tool to capture the existing module’s data before removal. This includes the remaining engine oil life and automatic transmission fluid life, which must be recorded and then programmed into the new module. Special equipment and the correct program and calibration for the vehicle are needed to reprogram the PCM. Flagship One eliminates these steps by supplying a VIN-programmed replacement unit that arrives ready to install, with all data and calibrations already applied, so you can skip the dealer-level programming and relearn process.
Symptoms of a Failing PCM
Common failure symptoms of the PCM/ECM in the 2008 Pontiac Torrent 3.4L include a no-start condition where the engine cranks but does not fire, intermittent stalling while driving, and misfire codes that do not trace to ignition or fuel system faults. The check engine light may illuminate with codes like internal control module memory error P0601 indicating internal module failure. Other signs include loss of scan tool communication, erratic transmission shifting, and the oil life monitor resetting to 100% unexpectedly. These symptoms often point to a failing module rather than a sensor or wiring issue.
Module Trouble Codes on the 2008 Pontiac Torrent
The 2008 Pontiac Torrent 3.4L ECM can store internal diagnostic trouble codes that indicate module hardware or software faults. The following codes are documented for this vehicle: P0601, P0602, P0603, P0604, P062F, and P1621. These codes typically require module replacement rather than sensor or wiring repairs.
Factory Service Bulletins Worth Knowing
One factory service bulletin applies to the 2008 Pontiac Torrent 3.4L: #PI0777, dated August 3, 2012, titled ‘Oil Life Monitor Calibration Update – Reprogram Engine Control Module.’ This bulletin addresses inaccuracies in the oil life monitoring system and requires reprogramming the ECM with updated calibration software. If your Torrent’s oil life percentage seems incorrect or resets prematurely, this TSB may apply. Note that another bulletin (#07-06-04-035) is for the 3.6L LY7 engine and does not apply to the 3.4L.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Oil Life Monitor Calibration Update – Reprogram Engine Control Module – (Aug 3, 2012) | — |
| 07-06-04-035 | 3.6L LY7 Engine – MIL/SES Light Illuminated, DTC P2610 Stored (Reprogram ECM) – (Dec 18, 2007) | Some customers may comment that the MIL/SES light is illuminated. Upon further investigation, technicians may find Diagnostic Trouble Code (DTC) P2610 –… |
Protecting the PCM in Your 2008 Pontiac Torrent
- Maintain the charging system; a failing alternator can send voltage spikes that damage the ECM.
- Keep engine ground straps and module connector terminals clean and tight to prevent intermittent faults.
- Avoid jump-starting with reversed polarity or using a fast charger directly on the battery without proper connections.
- Address diagnostic trouble codes promptly; ignoring codes like P0601 can lead to complete module failure.
- Inspect the ECM connector seal for cracks or moisture intrusion, especially after engine bay washing.
Frequently Asked Questions
What is the labor time to replace the PCM on a 2008 Pontiac Torrent 3.4L?
The factory book time for PCM/ECM removal and installation is 0.9 hours. An additional 0.5 hours is required for the ECM relearn procedure after installation.
Do I need to program the new ECM for my 2008 Pontiac Torrent?
Factory procedure requires capturing the old module’s data and recording engine oil life and transmission fluid life before removal, then reprogramming the new module with special equipment. Flagship One supplies pre-programmed units that arrive ready to install, eliminating the need for dealer programming.
What trouble codes indicate PCM failure on a 2008 Pontiac Torrent?
Module-internal codes such as P0601, P0602, P0603, P0604, P062F, and P1621 are documented for this vehicle. These codes typically mean the ECM itself has failed and requires replacement.
When your 2008 Pontiac Torrent 3.4L needs a new PCM or ECM, you have two paths: repair the existing module (often not possible for internal faults) or replace it with a refurbished unit. A pre-programmed replacement from Flagship One saves the 0.5-hour relearn step and ensures the oil life and transmission fluid life settings are correct from the start, avoiding the default 100% reset.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Pontiac Torrent with a lifetime warranty, free shipping and no core charge. The full Pontiac Torrent module lineup covers other engine configurations as well.
Final Thoughts
For your 2008 Pontiac Torrent 3.4L, a properly functioning PCM/ECM is critical for reliable operation. Whether you are dealing with no-start, stalling, or check engine light issues, replacing the module with a pre-programmed unit from Flagship One simplifies the job and gets you back on the road quickly.
