2006 Pontiac Torrent PCM Replacement Overview
The PCM in a 2006 Pontiac Torrent manages engine and transmission functions, coordinating fuel, ignition, and shift timing. Failure often results in misfires, stalling, or a sudden loss of powertrain control, requiring diagnostics and potential replacement.
Quick Summary
- PCM replacement takes about 0.9 hours.
- Relearning the PCM requires an additional 0.5 hours.
- The powertrain control module also needs 0.5 hours for relearn.
- Capturing PCM data before removal is essential to preserve settings.
- Special equipment and the correct calibration are required for reprogramming.
If you own a 2006 Pontiac Torrent and notice a Service Engine Soon light or engine performance issues, the powertrain control module (PCM) could be the culprit. Understanding what the PCM does, how to replace it, and the steps required for proper programming helps you avoid costly mistakes and downtime. This guide explains the process, highlights key labor times, and outlines the precautions you should follow.
What the PCM Does in a 2006 Pontiac Torrent
The PCM in a 2006 Pontiac Torrent controls the engine and transmission by processing sensor data and sending commands to fuel injectors, ignition coils, and shift solenoids. This ensures efficient combustion and smooth gear changes. replacement PCM for the 2006 Pontiac Torrent It is critical for maintaining vehicle performance and emissions compliance, and a malfunction can trigger diagnostic trouble codes or a Service Engine Soon light.
Where the PCM Is Located and What Replacement Involves
The PCM is located beneath the driver’s side dashboard, near the steering column. Removing it requires access to the panel under the steering wheel and the removal of a few interior trim pieces. The book time for replacement is 0.9 hours. After removal, a new unit is installed and wired to the existing harness before the relearn procedures begin.

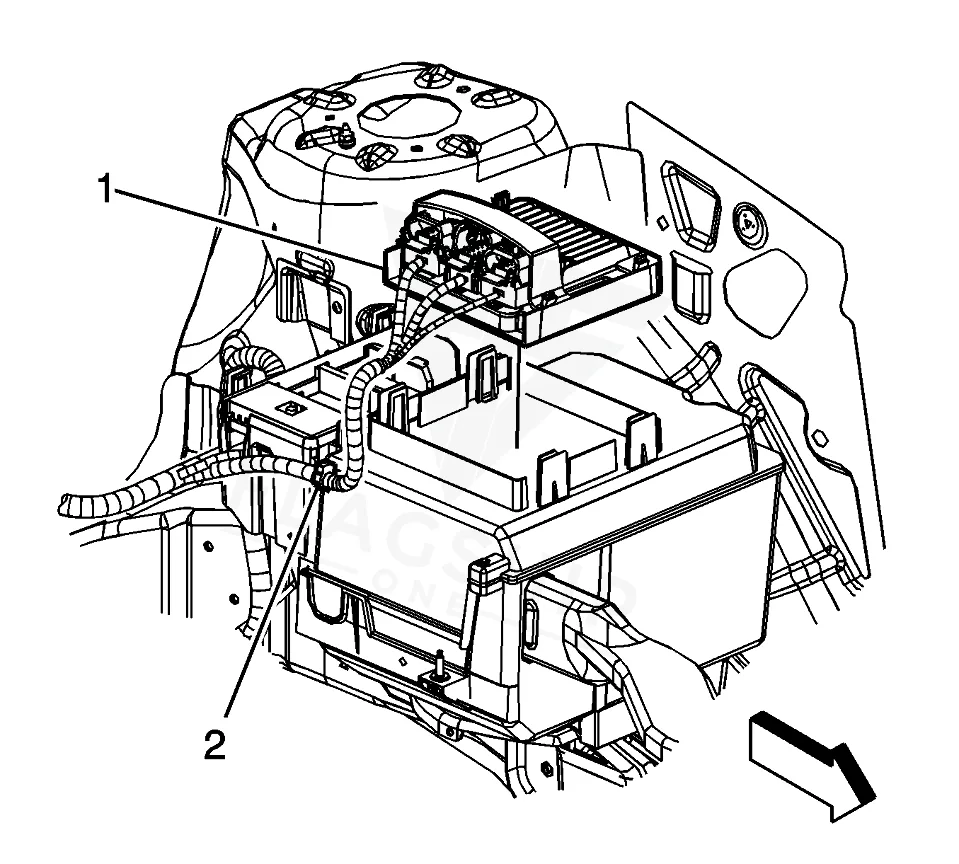

How to Reach the PCM on the 2006 Pontiac Torrent
- Remove any debris from around the control module connector.
- Remove the PCM and PCM bracket from the battery box cover.
- Remove the PCM bracket from the PCM.
- Disconnect the PCM wire harness from the battery box cover.
- Disconnect the negative battery cable.
- Remove the PCM connectors from the PCM.
- Remove the PCM from the vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.9 hr |
Programming Requirements After Replacement
After a new PCM is installed, the factory procedure requires capturing the original PCM data, restoring that data into the new unit, and then running relearn cycles for both the PCM and the powertrain module. Flagship One units arrive VIN‑programmed, so these steps are already completed. VIN‑programmed replacement unit This eliminates the need to capture or restore data manually.
Symptoms of a Failing PCM
Common signs that the PCM in a 2006 Pontiac Torrent may be failing include a sudden loss of power, engine stalling, irregular misfires, and a Service Engine Soon light. You may also see a diagnostic trouble code such as P0601, which indicates a communication or control module issue. When these symptoms appear, a scan tool often reports dead or unreliable communication with the PCM.
Module Trouble Codes on the 2006 Pontiac Torrent
The 2006 Pontiac Torrent’s PCM can generate a variety of internal trouble codes, reflecting issues from communication failures to sensor misreads. The following list details each code and its typical trigger.
Factory Service Bulletins Worth Knowing
Service Bulletin #06-06-04-008 and #06-06-04-008B address a Service Engine Soon light accompanied by DTCs P1404 or P0404. The bulletin recommends installing an EGR valve, gasket, pipe, or wiring harness connector and then reprogramming the PCM. Bulletin #05-06-04-060 covers shared DTCs P0601 through P0604, P1621 across multiple modules, advising comprehensive diagnostics and possible module replacements.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 06-06-04-008 | LNJ Service Engine Soon (SES) Light On, Multiple Powertrain Control Module (PCM) Diagnostic Tro | Some customers may comment on a Service Engine Soon (SES) light illuminated on the instrument cluster. Some vehicles may have previously been serviced for this… |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the PCM in Your 2006 Pontiac Torrent
- Keep the charging system clean and within spec to avoid voltage spikes.
- Inspect and clean all electrical connectors and grounds regularly.
- Avoid using aftermarket electrical devices that may introduce noise or high voltage.
- Address any check‑engine light or diagnostic code promptly.
- Ensure all connector seals are intact to prevent moisture intrusion.
Frequently Asked Questions
What should I do if my 2006 Pontiac Torrent’s PCM fails during a road trip?
First, try a quick reset of the vehicle’s computer by disconnecting the battery for a few minutes, then reconnecting. If the issue persists, have a qualified technician replace or reprogram the PCM as the failure often indicates a deeper electrical or sensor problem.
Can I use a generic PCM replacement for my 2006 Pontiac Torrent?
It is not recommended because the PCM must match the vehicle’s VIN and specific calibration. A generic unit may lack the necessary programming, leading to performance issues or emissions non‑compliance.
How long does a PCM replacement normally take on a 2006 Pontiac Torrent?
The labor estimate is 0.9 hours for removal and installation, plus 0.5 hours for relearn and another 0.5 hours for powertrain relearn, totaling about 2 hours of shop time.
Whether you choose a repair with a new PCM or a refurbished replacement, understanding the required steps can save you time and cost. A properly programmed unit from Flagship One ensures your 2006 Pontiac Torrent runs smoothly without the risk of lost data or incomplete relearn cycles.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Pontiac Torrent with a lifetime warranty, free shipping and no core charge. The full Pontiac Torrent module lineup covers other engine configurations as well.
Final Thoughts
For a 2006 Pontiac Torrent, the PCM is essential for engine and transmission coordination. Addressing any issues promptly and using a VIN‑programmed unit can keep your vehicle operating reliably. If you encounter symptoms or codes, consider a replacement that eliminates the need for post‑install data capture.
