2008 Cadillac XLR Engine Control Module Replacement Guide
The engine control module in the 2008 Cadillac XLR manages fuel delivery, ignition timing and emissions controls. A failure typically results in loss of engine power, erratic idle, or communication loss with diagnostic tools, often triggering processor‑related fault codes.
Quick Summary
- Labor time for removing and reinstalling the ECM is about 1.4 hours.
- Capture all ECM data with a scan tool before removal to ensure proper restoration.
- Electrostatic discharge can damage the ECM; avoid touching connector pins.
- Reprogramming requires special equipment and the correct calibration for the vehicle.
When an engine control module stops functioning in a 2008 Cadillac XLR, the vehicle may refuse to start or run poorly. Understanding how the ECM works, what the factory cautions are, and what steps follow a replacement helps you avoid costly missteps. This guide explains the module’s role, the removal process, required programming, and how to keep the new unit reliable, so you can make an informed decision about repair or replacement.
What the PCM Does in a 2008 Cadillac XLR
In the 2008 Cadillac XLR the engine control module acts as the brain for engine operation, interpreting sensor data to control fuel injection, ignition timing and emission systems. It communicates with the powertrain control module to coordinate shifting and performance. Proper operation is essential for smooth acceleration and compliance with emissions standards. The module’s processor must stay calibrated, and any loss of data can trigger fault codes such as 2008 Cadillac XLR engine computers that require attention.

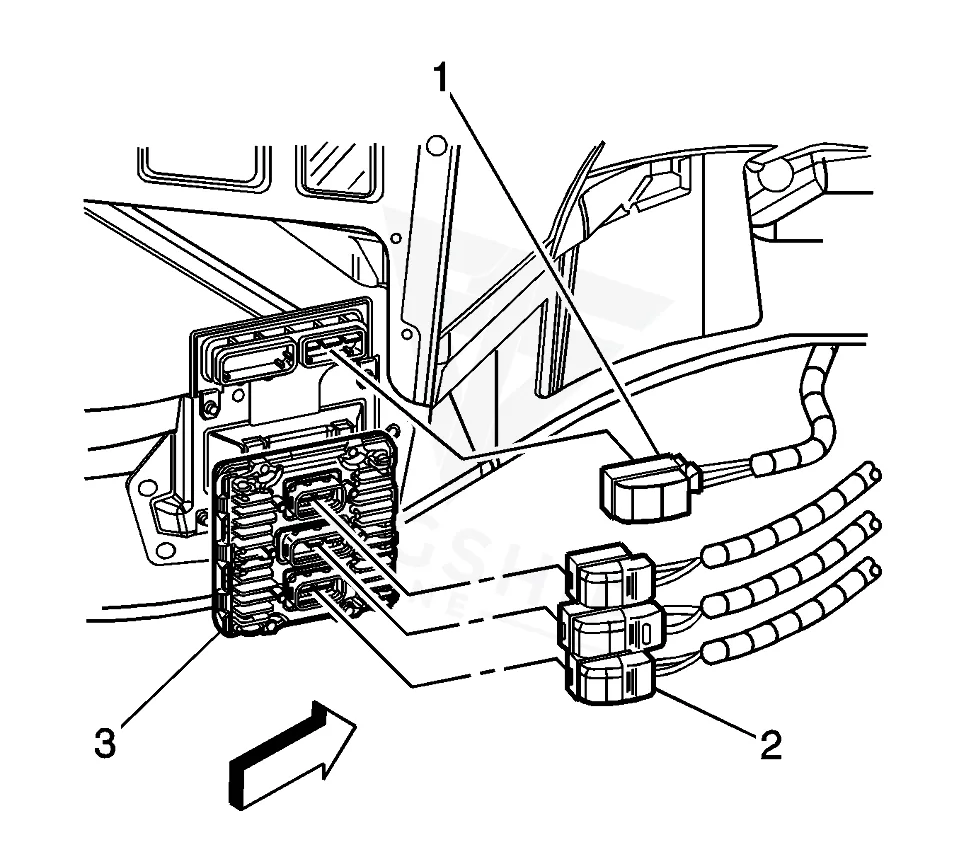

Where the PCM Is Located and What Replacement Involves
The ECM resides within the engine compartment, connected to wiring harnesses and sensor inputs. Replacement involves disconnecting the battery, removing the mounting bolts and unplugging the connector without touching the pins. Labor guidance lists 1.4 hours for removal and re‑installation, plus an additional 0.5 hours for the required relearn procedure after the unit is fitted. Access steps follow the factory caution to protect against electrostatic discharge.
How to Reach the PCM on the 2008 Cadillac XLR
- Remove any debris from around the control module connector.
- Remove the right front wheelhouse filler panel.
- Disconnect the ECM electrical harness connectors.
- Remove the fasteners from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the ECM is installed, the factory procedure calls for capturing original data, then using a scan tool to write the saved parameters back into the new unit. Special programming equipment and the correct calibration file are required. Flagship One provides a VIN-programmed replacement unit that arrives with the necessary data already loaded, eliminating the need for on‑site reprogramming.
Symptoms of a Failing PCM
Typical signs of a failing ECM in the 2008 Cadillac XLR include a no‑start condition, intermittent stalling, rough idle and loss of communication with diagnostic tools. You may also see shift‑related issues when the powertrain control module cannot receive proper signals. A common diagnostic trigger is processor failure which points directly to the ECM’s internal processor.
Module Trouble Codes on the 2008 Cadillac XLR
The following internal trouble codes are documented for the 2008 Cadillac XLR ECM:
Factory Service Bulletins Worth Knowing
Service Bulletin #08128 addresses OBD system improvements and requires reprogramming of the engine control module. The update remains valid for eight years or 80,000 miles from the original emission controller warranty period, as noted in the April 2008 bulletin.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Service Update for Inventory and Customer Vehicles-OBD System Improvements-Reprogram Engine Con | — |
Protecting the PCM in Your 2008 Cadillac XLR
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all grounds and connector pins are clean and secure.
- Avoid jump‑starting the vehicle unless absolutely necessary.
- Address any diagnostic codes promptly before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What should I do before removing the ECM from my 2008 Cadillac XLR?
Connect a scan tool and capture all ECM data first. This ensures the saved parameters can be restored to the replacement unit.
Can I reuse the original ECM after it has been repaired?
If the module is repaired to factory specifications and reprogrammed with the correct calibration, it may be reused, but many owners prefer a new VIN‑programmed unit for assurance.
How long will a professional shop need to replace the ECM on my XLR?
The labor guide lists about 1.4 hours for removal and installation, plus an extra 0.5 hours for the relearn step, assuming standard access conditions.
When the ECM fails, you can either have a dealer reinstall a refurbished unit or choose a new, VIN‑programmed replacement from Flagship One. Both options restore engine control, but the latter eliminates the need for post‑install programming and reduces the risk of data loss.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Cadillac XLR with a lifetime warranty, free shipping and no core charge. The full Cadillac XLR module lineup covers other engine configurations as well.
Final Thoughts
Replacing the engine control module in your 2008 Cadillac XLR restores proper engine management and prevents further diagnostic trouble. Consider a VIN‑programmed unit for a streamlined repair experience.
