2006 Cadillac XLR Engine Control Module Replacement & Programming Guide
The engine control module (ECM) in the 2006 Cadillac XLR manages fuel injection, ignition timing, and emissions systems. Internal failure may cause erratic engine behavior, stored trouble codes, or a no-start condition.
Quick Summary
- ECM controls critical engine functions in the 2006 Cadillac XLR
- Replacement typically requires 1.4 hours of labor plus a 0.5-hour relearn procedure
- Factory procedure mandates capturing ECM data before removal
- Aftermarket electrical additions must connect directly to the battery to avoid damage
- Flagship One units arrive pre-programmed to the vehicle’s VIN
If your 2006 Cadillac XLR suddenly stalls, refuses to start, or logs persistent internal control module codes, the engine control module may be failing. This small but critical computer oversees fuel delivery, spark timing, and emissions systems. Replacing it involves more than swapping hardware—factory procedures require data capture, secure electrical connections, and precise reprogramming. Understanding these steps helps you anticipate shop time and avoid common pitfalls during the process. Whether you’re diagnosing symptoms or preparing for a replacement, knowing what to expect ensures a smoother repair experience.
What the PCM Does in a 2006 Cadillac XLR
The engine control module (ECM) in the 2006 Cadillac XLR acts as the brain of the engine, continuously adjusting fuel injection, ignition timing, and idle speed to maintain optimal performance. It also monitors emissions systems and communicates with the transmission control module to ensure smooth gear shifts. When this module fails, your XLR may experience rough idling, poor acceleration, or even a complete no-start condition. Replacing it requires careful handling to avoid electrostatic damage, and the vehicle relies on replacement engine computers for the XLR to restore proper operation. Without a functioning ECM, the engine may run erratically or fail to start at all.
Where the PCM Is Located and What Replacement Involves
In the 2006 Cadillac XLR, the engine control module is typically mounted in the engine bay for accessibility. Replacing it involves disconnecting the battery, removing the module’s electrical connector, and unbolting the unit from its mount. The labor guide estimates 1.4 hours for removal and reinstallation. Before removal, technicians must use a scan tool to capture the existing ECM data, as this information is required for the new module. After installation, a 0.5-hour relearn procedure ensures the module synchronizes with the vehicle’s systems. Avoid touching the connector pins to prevent electrostatic damage during handling.

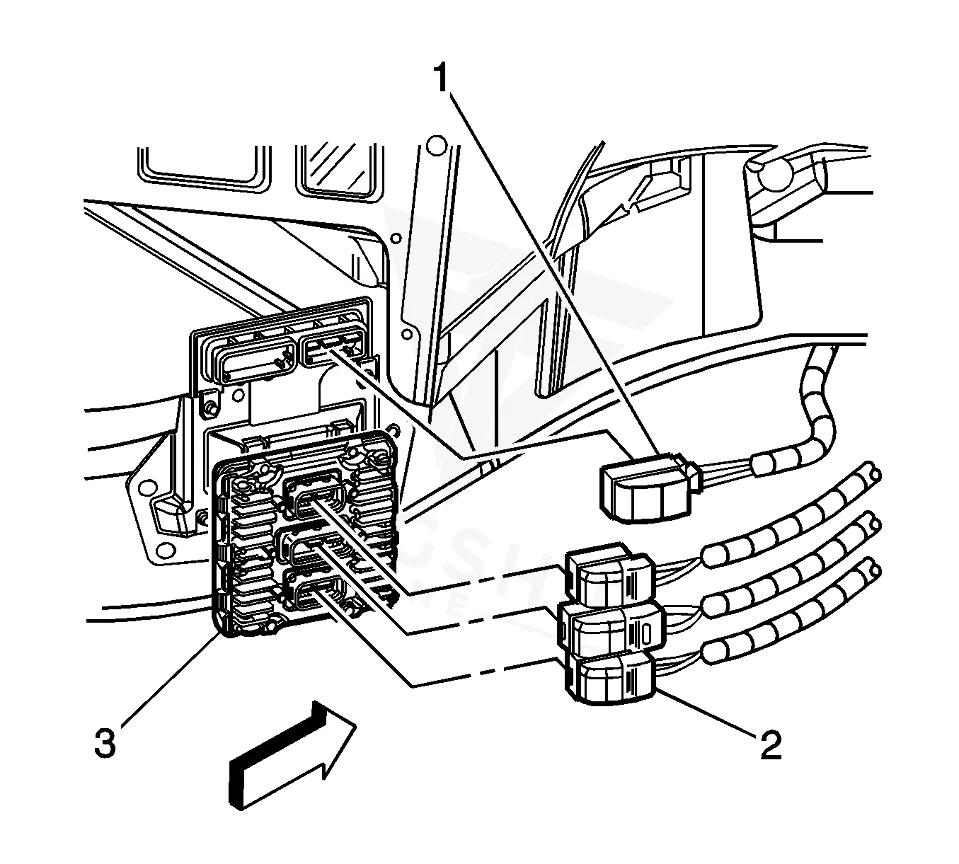

How to Reach the PCM on the 2006 Cadillac XLR
- Remove any debris from around the control module connector.
- Remove the right front wheelhouse filler panel.
- Disconnect the ECM electrical harness connectors.
- Remove the fasteners from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new engine control module in the 2006 Cadillac XLR, the factory procedure requires restoring the captured data and performing a relearn process, which takes about 0.5 hours. Specialized equipment and the correct calibration files are necessary for reprogramming. However, a VIN-programmed replacement unit from Flagship One arrives ready for installation, eliminating the need for on-site programming. This ensures the module is immediately compatible with your XLR’s systems, reducing downtime and potential errors during the process.
Symptoms of a Failing PCM
A failing engine control module in the 2006 Cadillac XLR may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice poor acceleration, erratic shifting, or the check engine light illuminating with internal module codes. Common trouble codes associated with ECM failure include control module memory checksum error, which indicates an internal fault. If the scan tool fails to communicate with the ECM, the module itself may be unresponsive. Addressing these symptoms promptly can prevent further driveability issues.
Module Trouble Codes on the 2006 Cadillac XLR
The 2006 Cadillac XLR’s engine control module may log specific internal trouble codes when it malfunctions. These codes help diagnose the root cause of performance issues or no-start conditions.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2006 Cadillac XLR address engine control module reprogramming and internal fault codes. Bulletin #06516 outlines software upgrades for OBD system improvements, while #05-06-04-060 covers shared diagnostic trouble codes P0601, P0602, P0603, P0604, and P1621 across multiple control modules. Bulletin #08128 extends reprogramming updates for inventory and customer vehicles, covering the 8-year or 80,000-mile emission controller warranty period. These bulletins highlight the importance of keeping the ECM software current to avoid drivability issues.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | System Software Upgrade-OBD System Improvements (Reprogram Engine Control Module (ECM)) – (Mar | — |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
| — | Service Update for Inventory and Customer Vehicles-OBD System Improvements-Reprogram Engine Con | — |
Protecting the PCM in Your 2006 Cadillac XLR
- Maintain a healthy charging system to prevent voltage spikes that may damage the ECM
- Ensure all electrical connections are clean and securely fastened to avoid intermittent faults
- Avoid jump-starting with improper voltage, as this can harm sensitive electronics
- Address check engine lights promptly to prevent cascading module failures
- Keep the ECM connector and seals intact to protect against moisture and corrosion
- Use a scan tool to monitor for pending codes before they trigger a breakdown
Frequently Asked Questions
Why does my 2006 Cadillac XLR need a relearn procedure after ECM replacement?
The relearn procedure ensures the new engine control module synchronizes with the vehicle’s sensors and systems. This step calibrates fuel delivery, ignition timing, and emissions controls to match your XLR’s specific configuration. Skipping it may result in poor performance or stored trouble codes.
Can I install a used ECM from another 2006 Cadillac XLR in my vehicle?
While physically possible, a used ECM may not be programmed to your XLR’s VIN or current software level. This can cause compatibility issues, including incorrect sensor readings or failure to start. A VIN-programmed replacement ensures proper operation.
What causes internal ECM trouble codes like P0601 in my 2006 Cadillac XLR?
Codes like P0601 often indicate an internal memory or processing fault within the ECM. Causes may include voltage spikes, electrostatic discharge, or software corruption. Replacing the module and reprogramming it typically resolves these issues.
If your 2006 Cadillac XLR is experiencing ECM-related issues, you have options for repair or replacement. A refurbished or new module can restore driveability, while a VIN-programmed unit simplifies the process by eliminating on-site programming. Given the labor time involved, choosing a pre-programmed replacement may reduce diagnostic and installation costs.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Cadillac XLR with a lifetime warranty, free shipping and no core charge. The full Cadillac XLR module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Cadillac XLR relies on its engine control module for smooth operation, and addressing failures promptly ensures reliable performance. Whether you opt for a repair or a replacement, understanding the factory procedures and symptoms helps you make informed decisions. A properly functioning ECM keeps your XLR running as intended.
