2007 Pontiac G6 Engine Control Module Replacement and Relearn
The engine control module in a 2007 Pontiac G6 manages fuel delivery, ignition timing, and emissions functions. A failure typically disables engine start, causes rough idle, or triggers diagnostic codes such as P0601, indicating internal processor errors within the module.
Quick Summary
- Factory caution requires data capture before ECM removal.
- Replacement labor is rated at 1.4 hours for both PCM and ECM.
- ECM relearn after install takes an additional 0.5 hours.
- Service bulletins #PI0777 and #07131 address calibration and reprogramming.
When a 2007 Pontiac G6 exhibits symptoms like a no‑start condition, erratic idle, or diagnostic trouble codes, the engine control module often becomes the focus of inspection. Understanding how the ECM operates, what the factory recommends for removal and replacement, and the steps needed after installation can help you avoid unnecessary downtime. This guide walks you through the key procedures, from capturing original module data to completing the required relearn, so you know exactly what to expect and how to keep your vehicle running smoothly.
What the PCM Does in a 2007 Pontiac G6
The engine control module in the 2007 Pontiac G6 is the central computer that regulates fuel injection, spark timing, and emission controls. It receives input from sensors throughout the powertrain and issues commands to actuators, ensuring the engine runs efficiently and meets emissions standards. A malfunction can interrupt these signals, leading to loss of power, stalling, or complete engine shutdown. Because the ECM stores calibration data unique to each vehicle, preserving that information is critical during service. The module’s role is especially important for meeting the emission requirements outlined in service bulletins. For owners seeking a direct swap, replacement engine control modules for the 2007 Pontiac G6 provide a factory‑approved path that maintains system integrity.

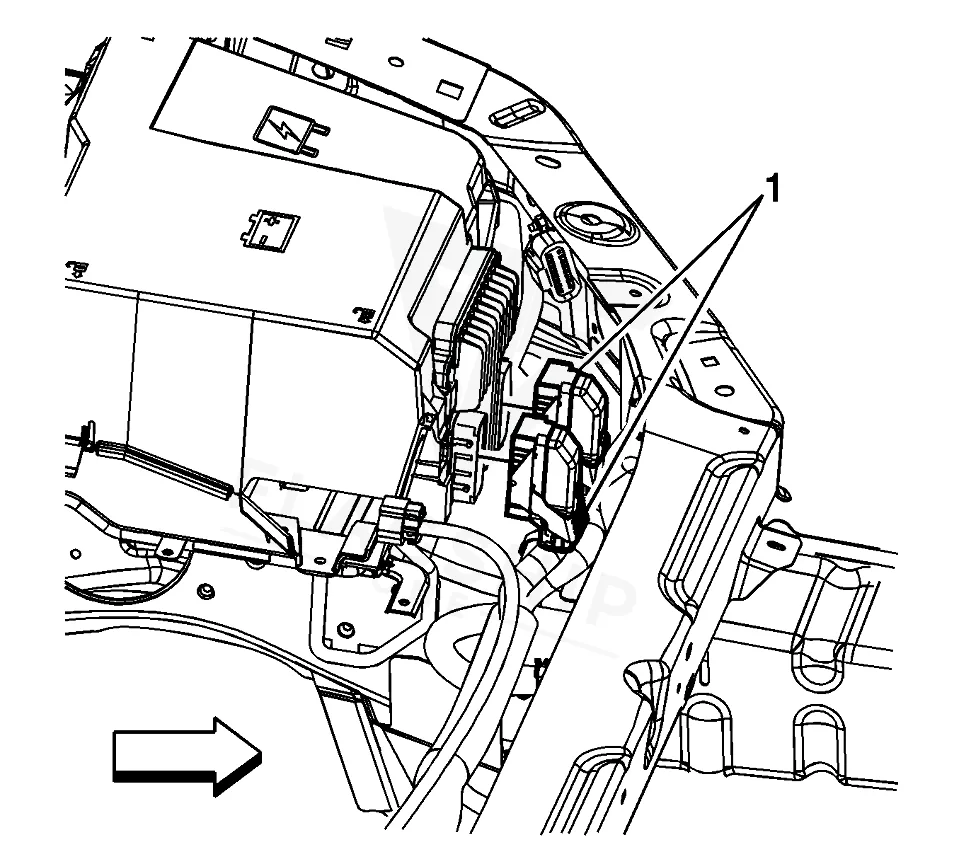

Where the PCM Is Located and What Replacement Involves
The engine control module on the 2007 Pontiac G6 is mounted near the engine bay and connects to the vehicle’s wiring harness. Before removal, the factory cautions you to disconnect the negative battery cable and follow any fastener notices. Labor time for removing and reinstalling the ECM is listed as 1.4 hours, matching the powertrain control module’s rating. After the unit is secured, an additional 0.5 hours is allocated for the ECM relearn procedure, which updates the module with the vehicle’s specific calibration parameters.
How to Reach the PCM on the 2007 Pontiac G6
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine control module (ECM) harness connectors.
- Release the retaining tab located in the battery box lower half using a small screwdriver.
- Remove the ECM by lifting upward after releasing the tab.
- Slide the ECM into the bracket on the front of the battery box.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the new ECM is installed in the 2007 Pontiac G6, the factory procedure calls for using a scan tool to restore the previously captured data into the replacement unit. This step ensures that the module retains the vehicle‑specific calibrations needed for proper operation. Flagship One supplies each unit as a VIN‑programmed replacement, so the data restoration is already completed before the part reaches your shop. Consequently, the only remaining task is to verify communication with the scan tool and complete the 0.5‑hour relearn process.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Typical signs of a failing engine control module in a 2007 Pontiac G6 include a complete no‑start condition, intermittent stalling, rough idle, and loss of power during acceleration. You may also see diagnostic trouble codes such as processor internal error or experience a lack of communication when connecting a scan tool. In some cases, shifting irregularities or unexpected emissions test failures can trace back to ECM issues, especially if the module cannot process sensor inputs correctly.
Module Trouble Codes on the 2007 Pontiac G6
The following internal trouble codes have been documented for the 2007 Pontiac G6 ECM:
Factory Service Bulletins Worth Knowing
Service bulletin #PI0777, dated August 3, 2012, provides an oil life monitor calibration update that requires reprogramming the ECM. Bulletin #07131, issued June 25, 2007, outlines an OBD system improvement that calls for reprogramming the powertrain control module and remains valid for eight years or 80,000 miles.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Oil Life Monitor Calibration Update – Reprogram Engine Control Module – (Aug 3, 2012) | — |
| — | Service Update for Inventory and Customer Vehicles-OBD System Improvements-Reprogram Powertrain | — |
Protecting the PCM in Your 2007 Pontiac G6
- Maintain a healthy charging system to avoid voltage fluctuations that can stress the ECM.
- Inspect and clean ground connections and connector pins regularly.
- Avoid using jump‑starts that introduce voltage spikes to the module.
- Address any diagnostic codes promptly before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
- Use the correct scan tool procedure to capture ECM data before removal.
Frequently Asked Questions
Can I replace the ECM on my 2007 Pontiac G6 without a scan tool?
You can physically replace the unit, but the factory requires a scan tool to capture and restore the module’s data. Without that step, the vehicle may not run correctly.
How long does the ECM relearn take on a 2007 Pontiac G6?
The labor guide lists the relearn as a 0.5‑hour task after the module is installed and connected.
Do the service bulletins affect the replacement process?
Yes, bulletins #PI0777 and #07131 specify calibration updates and reprogramming steps that should be applied during or after ECM replacement.
Will a VIN‑programmed ECM from Flagship One eliminate the need for data capture?
Flagship One units arrive pre‑programmed with the vehicle’s VIN, so the factory‑required data restoration is already completed.
What codes indicate a bad ECM in this model?
Codes P0601 through P0604 and P062F are associated with internal processor or communication failures in the ECM.
When the engine control module in your 2007 Pontiac G6 needs service, you can choose a new OEM‑spec unit or a refurbished replacement that meets the same standards. Both options require the same removal steps, data capture, and relearn process, but a refurbished part may offer cost savings while still delivering the required performance. Evaluate your budget and downtime preferences before deciding which path best fits your repair plan.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 Pontiac G6 with a lifetime warranty, free shipping and no core charge. The full Pontiac G6 module lineup covers other engine configurations as well.
Final Thoughts
The engine control module is essential to the operation of your 2007 Pontiac G6. Proper removal, data handling, and relearn ensure the vehicle returns to reliable performance. Consider both new and refurbished options, and follow the outlined steps to protect your investment.
