2006 Pontiac G6 PCM/ECM Replacement: What Owners Should Know
The powertrain control module (PCM) and engine control module (ECM) in the 2006 Pontiac G6 manage fuel, ignition, and emissions systems. Failures may trigger warning lights, poor performance, or prevent the engine from starting.
Quick Summary
- Replacing the PCM or ECM in a 2006 Pontiac G6 typically takes 1.4 hours of labor.
- A relearn procedure adds 0.5 hours if required after installation.
- Factory cautions require capturing module data before removal to restore to a new unit.
- A new PCM may need reprogramming to match the vehicle’s specifications.
- Common failure symptoms include stalling, no-start conditions, and diagnostic trouble codes.
If your 2006 Pontiac G6 is experiencing erratic engine behavior, a failing powertrain or engine control module could be the cause. These critical components manage everything from fuel delivery to ignition timing, and when they malfunction, symptoms like stalling, poor acceleration, or even a complete no-start condition may appear. Replacing the module involves more than just swapping hardware—factory procedures require data capture and reprogramming to ensure proper operation. Understanding the process, labor time, and post-install steps can help you make informed decisions about repairs and avoid unnecessary complications.
What the PCM Does in a 2006 Pontiac G6
In the 2006 Pontiac G6, the powertrain control module (PCM) and engine control module (ECM) act as the vehicle’s brain, coordinating fuel injection, ignition timing, and emissions systems. These modules rely on input from sensors to optimize performance and efficiency. When they fail, the engine may run poorly or not start at all. Replacing them requires careful handling, as the vehicle’s systems depend on accurate data. A replacement engine computers for the Pontiac G6 must be programmed to match the vehicle’s specifications to avoid further issues.
Where the PCM Is Located and What Replacement Involves
The PCM or ECM in the 2006 Pontiac G6 is typically located in the engine bay or under the dashboard, depending on the specific module. Replacement involves disconnecting the battery, removing electrical connectors, and unbolting the module from its mount. Labor time for removal and reinstallation is estimated at 1.4 hours. After installation, a relearn procedure may be required, adding 0.5 hours to the process. Always follow factory torque specifications for fasteners to ensure a secure connection.

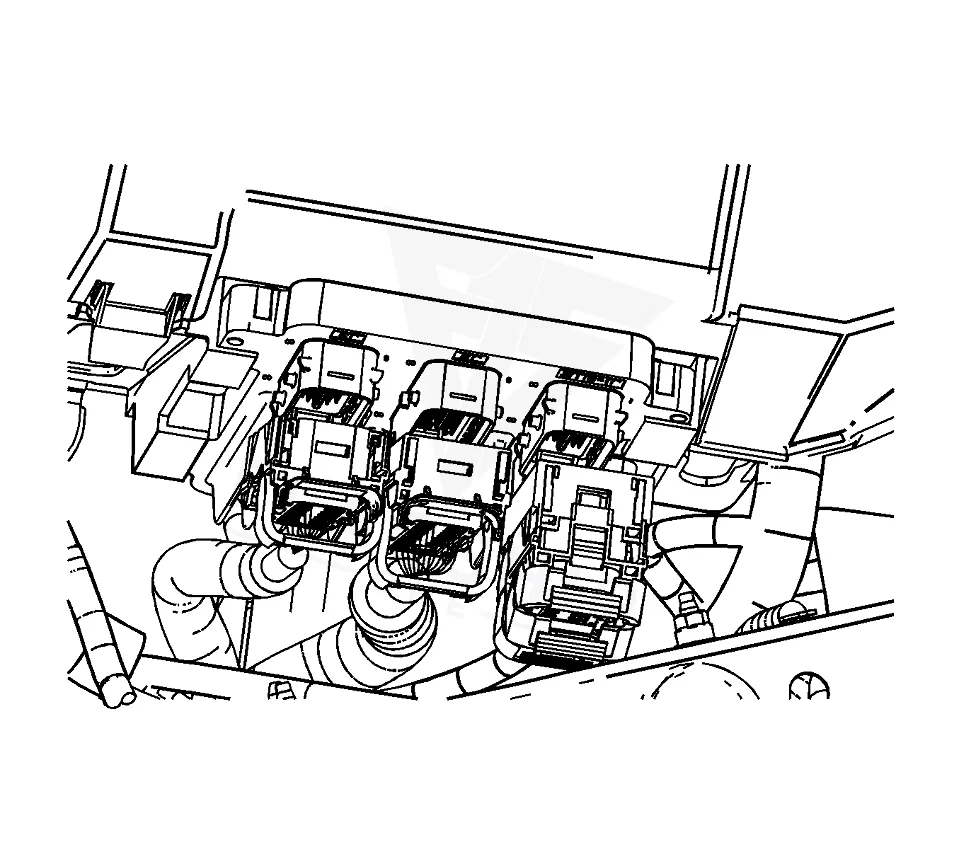

How to Reach the PCM on the 2006 Pontiac G6
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine control module (ECM) harness connectors.
- Release the retaining tab located in the battery box lower half using a small screwdriver.
- Remove the ECM by lifting upward after releasing the tab.
- Slide the ECM into the bracket on the front of the battery box.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM or ECM in your 2006 Pontiac G6, the factory requires capturing and restoring module data to the new unit. If a new PCM is installed, reprogramming is also necessary to match the vehicle’s specifications. However, a VIN-programmed replacement unit arrives ready to install, eliminating the need for on-site programming and reducing the risk of errors during the process.
Symptoms of a Failing PCM
A failing PCM or ECM in the 2006 Pontiac G6 may cause a range of symptoms, including stalling, rough idling, or a no-start condition. You might also notice the check engine light illuminated, often accompanied by trouble codes like internal control module memory check sum error. In some cases, the vehicle may exhibit poor acceleration or shifting issues, as the module’s ability to manage engine and transmission functions deteriorates.
Module Trouble Codes on the 2006 Pontiac G6
The 2006 Pontiac G6 may log specific trouble codes when the PCM or ECM fails. These codes help diagnose the issue and guide repairs. Below are the documented module-internal trouble codes for this vehicle.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2006 Pontiac G6 address recurring issues with the PCM and ECM. Bulletin #06-06-04-002 (updated as #06-06-04-002B) describes a condition where the Service Engine Soon light illuminates due to diagnostic trouble codes P1404 or P0404, often requiring an EGR valve kit and PCM reprogramming. Another bulletin, #05-06-04-060, covers multiple trouble codes (P0601, P0602, P0603, P0604, P1621) shared across the PCM, ECM, and transmission control modules.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 06-06-04-002 | Service Engine Soon (SES) Light Illuminated, Multiple Powertrain Control Module (PCM) Diagnosti | Some customers may comment on a Service Engine Soon (SES) light illuminated on the instrument cluster. Some vehicles may have previously been serviced for this… |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the PCM in Your 2006 Pontiac G6
- Maintain a healthy charging system to prevent voltage spikes that can damage modules.
- Ensure all electrical connectors and grounds are clean and securely fastened.
- Avoid jump-starting the vehicle with improper voltage or polarity.
- Address diagnostic trouble codes promptly to prevent further damage.
- Keep connector seals intact to prevent moisture intrusion.
- Use a battery maintainer if the vehicle sits unused for extended periods.
Frequently Asked Questions
Why does my 2006 Pontiac G6 need a PCM or ECM relearn after replacement?
The relearn procedure ensures the new module synchronizes with the vehicle’s sensors and systems. Without it, the engine may run poorly or fail to start. The process typically takes 0.5 hours and may require a scan tool to complete.
Can I replace the PCM or ECM in my 2006 Pontiac G6 myself?
While the physical replacement is straightforward, the factory requires data capture and reprogramming, which typically requires professional tools. A VIN-programmed unit simplifies the process by eliminating the need for on-site programming.
What causes the PCM or ECM in a 2006 Pontiac G6 to fail?
Common causes include voltage spikes, moisture intrusion, or prolonged exposure to heat. Poor electrical connections or failing sensors can also contribute to module failure over time.
If your 2006 Pontiac G6 is experiencing PCM or ECM-related issues, you have options. A repair may address minor faults, but a replacement is often more reliable for severe failures. Choosing a VIN-programmed unit ensures compatibility and eliminates the need for post-install programming, saving time and reducing the risk of errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Pontiac G6 with a lifetime warranty, free shipping and no core charge. The full Pontiac G6 module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Pontiac G6 relies on its PCM and ECM to manage critical engine functions. If you’re facing symptoms like stalling, no-start conditions, or trouble codes, replacement may be necessary. Understanding the process, labor time, and factory requirements helps ensure a smooth repair. Consider a VIN-programmed unit to simplify installation and restore your vehicle’s performance.
