2007 Chevrolet Equinox PCM and ECM Replacement Guide
In the 2007 Chevrolet Equinox, the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery, and transmission shift strategy. Failure of either unit can cause loss of power, erratic shifting, or a complete inability to start, often accompanied by internal diagnostic codes.
Quick Summary
- Engine and powertrain modules share similar removal times of 0.9 hours each.
- Relearn procedures for both units require about 0.5 hours after installation.
- Factory cautions require recording remaining oil and transmission fluid life to avoid defaulting to 100 percent.
- Correct reprogramming restores vehicle-specific calibrations and prevents loss of functionality.
When a 2007 Chevrolet Equinox begins to exhibit no‑start conditions, rough shifting, or persistent diagnostic codes, the powertrain control module (PCM) or engine control module (ECM) may be at fault. Understanding how these computers operate, where they reside, and what factory procedures must follow after replacement can help you decide between a repair or a refurbished replacement. This guide explains the role of each module, the steps involved in removal and installation, the programming requirements, common symptoms, and practical ways to protect the units in your vehicle. Armed with this information, you can assess the scope of work and make an informed decision about service options.
What the PCM Does in a 2007 Chevrolet Equinox
The PCM in the 2007 Chevrolet Equinox serves as the central processor for both engine and transmission functions, interpreting sensor data to control fuel injection, ignition timing, and gear shifts. The ECM focuses specifically on engine management, handling air‑fuel mixture, emissions, and idle control. Both modules communicate with the vehicle’s network to ensure smooth operation under varying conditions. Because they store calibration data unique to each vehicle, any replacement must retain the original parameters to avoid drivability issues. Proper function of these computers is essential for meeting emissions standards and delivering expected performance. The replacement engine computers for the 2007 Chevrolet Equinox replacement engine computers for the 2007 Chevrolet Equinox are designed to match the factory specifications.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment of the 2007 Chevrolet Equinox, typically attached to a bracket near the firewall. Removal involves disconnecting the electrical connectors, unbolting the unit, and withdrawing it from its housing. Installation reverses the process, ensuring all connectors are seated securely before torquing the mounting bolts to the factory specification. The service manual lists a labor time of 0.9 hours for removing and reinstalling each module, followed by a 0.5 hour relearn step to synchronize the vehicle’s control strategies after the new unit is in place. No additional torque values are provided in the source data.

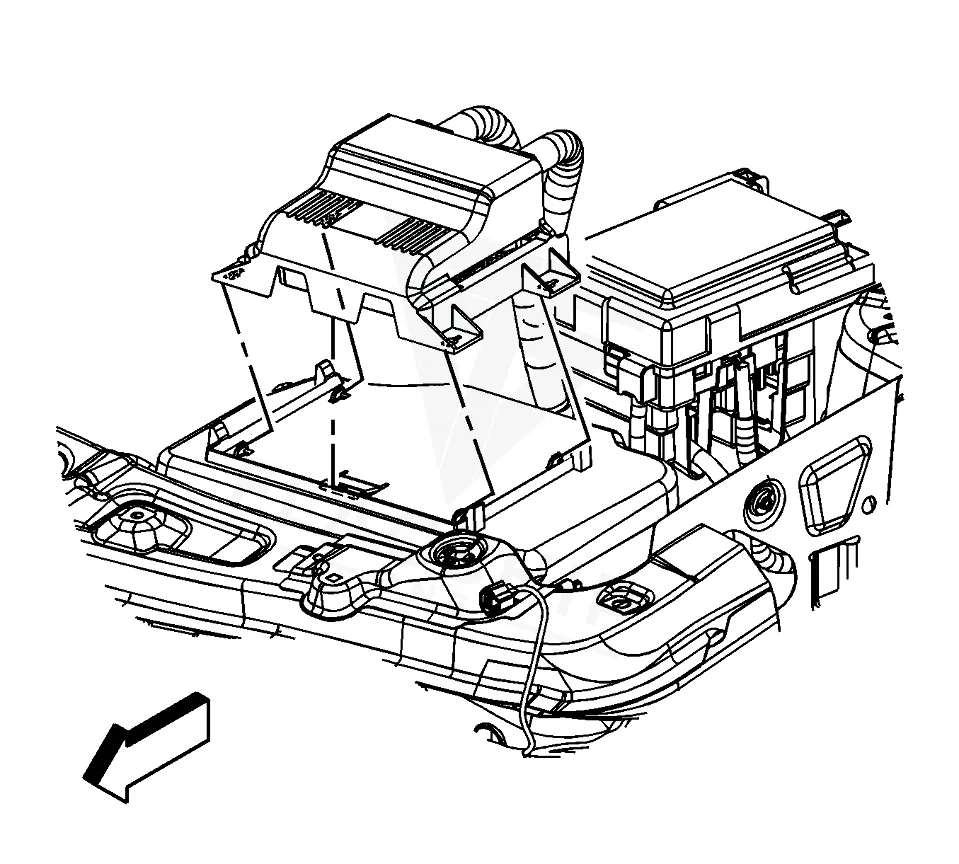

How to Reach the PCM on the 2007 Chevrolet Equinox
- Remove any debris from around the control module connector.
- Slide the engine control module (ECM) retainer rearward.
- Remove the ECM retainer from the top of the battery.
- Remove the ECM from the retainer.
- Disconnect the negative battery cable.
- Disconnect the engine wiring harness electrical connectors.
- Remove the battery shield from over the battery.
- Position the ECM and retainer to the top of the battery.
- Slide the ECM retainer rearward, engaging the retainer to the.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM in the 2007 Chevrolet Equinox, the factory procedure requires a reprogramming operation to load the correct calibration and to record remaining oil and transmission fluid life. The vehicle also needs a PCM re‑learn sequence to align the new unit with existing sensor data. Flagship One units arrive VIN‑programmed so that a VIN‑programmed replacement unit includes the necessary calibrations and oil‑life values, eliminating the need for separate programming steps.
Symptoms of a Failing PCM
A failing PCM or ECM in a 2007 Chevrolet Equinox may manifest as a complete loss of power, intermittent stalling, rough idle, or erratic transmission shifting. Drivers often report a no‑start condition despite a healthy battery, or notice the check engine light flashing with codes such as Processor fault P0601 that indicate internal processor errors. Additional signs include reduced fuel efficiency, unexpected gear changes, or a complete lack of communication with diagnostic tools, which can make troubleshooting more difficult.
Module Trouble Codes on the 2007 Chevrolet Equinox
The following internal diagnostic codes have been documented for the 2007 Chevrolet Equinox and may appear when the PCM or ECM experiences a fault:
Protecting the PCM in Your 2007 Chevrolet Equinox
- Maintain a healthy charging system to avoid voltage spikes that can damage the modules.
- Inspect and clean ground connections and connector pins regularly.
- Avoid using jump‑starts that exceed the vehicle’s voltage specifications.
- Address any diagnostic trouble codes promptly to prevent prolonged stress on the computers.
- Keep connector seals clean and free of corrosion.
- Record remaining oil and transmission fluid life after any module replacement.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2007 Chevrolet Equinox?
The service manual lists about 0.9 hours for removal and installation, plus an additional 0.5 hours for the required relearn procedure.
Do I need special equipment to reprogram the ECM in this vehicle?
Yes, the factory process calls for specific programming tools and the correct calibration file for the 2007 Chevrolet Equinox.
Will the vehicle default oil life to 100 percent if I don’t record it after a module swap?
Factory cautions indicate that failing to program the remaining oil life will cause the system to assume a full 100 percent remaining, which can affect maintenance reminders.
Can aftermarket add‑on equipment cause damage to the PCM or ECM?
Connecting aftermarket electrical or vacuum devices directly to the vehicle’s system without proper power and ground isolation can increase the risk of module damage.
Is a VIN‑programmed replacement unit necessary for my Equinox?
A VIN‑programmed unit includes the vehicle‑specific calibrations and oil‑life data, simplifying the post‑install steps and reducing the chance of errors.
When a PCM or ECM fails in your 2007 Chevrolet Equinox, you can choose a professional repair that involves removing the original unit and having it reprogrammed, or you can opt for a refurbished replacement that arrives pre‑programmed. Both approaches address the underlying fault, but a pre‑programmed unit may reduce shop time and eliminate the need for additional calibration steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 Chevrolet Equinox with a lifetime warranty, free shipping and no core charge. The full Chevrolet Equinox module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role and service requirements of the PCM and ECM helps you keep your 2007 Chevrolet Equinox running smoothly. Whether you pursue a repair or a pre‑programmed replacement, ensuring proper post‑install procedures will protect your vehicle’s performance.
