2006 Chevrolet Equinox PCM Replacement and ECM Service Guide

If your 2006 Chevrolet Equinox is exhibiting starting problems, stalling, or illuminated check engine lights, the Powertrain Control Module may be the culprit. This comprehensive guide walks you through understanding module function, replacement procedures, and the specific considerations for your 3.4L Equinox. Whether you’re diagnosing a no-start condition or planning a preventive replacement, you’ll find the technical details needed to make informed decisions about your vehicle’s engine computer.

What the PCM Does in a 2006 Chevrolet Equinox

The Powertrain Control Module in your 2006 Chevrolet Equinox functions as the central nervous system for the drivetrain. This integrated computer manages the 3.4L engine’s fuel injection, ignition timing, emissions systems including the EGR valve, and automatic transmission shift points. Unlike older vehicles that used separate ECM and TCM units, the Equinox combines these functions into one module, meaning a single failure can affect everything from idle quality to shifting behavior. The module receives input from dozens of sensors throughout the engine bay and uses this data to make real-time adjustments to optimize performance and emissions. When the internal processor or memory becomes corrupted, the module may store internal trouble codes that standard OBD-II scanners cannot clear, even after replacing sensors or other components. Understanding what replacement engine computers for the Equinox are available helps you evaluate whether a new or refurbished unit best fits your situation.

Flagship One keeps Chevrolet Equinox replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

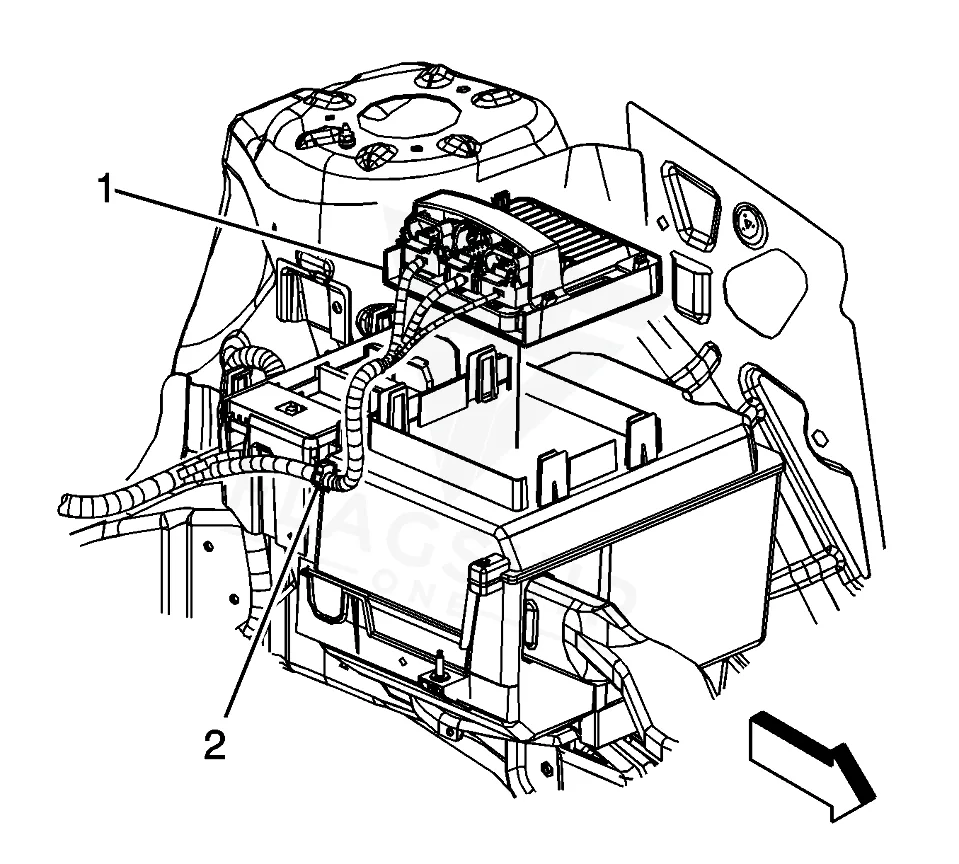

The PCM on the 2006 Chevrolet Equinox is located in the engine compartment, typically mounted on the firewall or near the battery tray area. Access requires removing the engine cover and potentially the battery for clear passage. The factory labor guide allows 0.9 hours for the R&R procedure, with an additional 0.5 hours allocated for the relearn procedure that follows module installation. During replacement, technicians must use ESD precautions—avoiding direct contact with connector pins to prevent electrostatic discharge damage to the new module. All add-on electrical equipment should be connected at the battery positive terminal and ground point rather than splicing into existing wiring, as voltage spikes from improper connections can damage the new control unit. After installation, the new module must establish communication with the vehicle’s sensors through the relearn cycle.

Programming Requirements After Replacement

Following module replacement, the factory procedure requires capturing the original PCM data using a scan tool before removal—this data must then be restored into the new module. The new PCM also requires reprogramming with the correct calibration file for your specific Equinox, which necessitates special equipment and the proper software download. This reprogramming process is why many shops charge premium rates for PCM replacement jobs. However, when you purchase from Flagship One, you receive a VIN-programmed replacement unit that arrives pre-loaded with the correct calibration for your vehicle, eliminating the need for dealer-level reprogramming and reducing the overall repair time.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the PCM or ECM fails on your 2006 Equinox, you may experience no-start conditions where the engine cranks but won’t run, intermittent stalling during acceleration or idle, or rough running accompanied by multiple random misfire codes. Dead scanner communication—where your OBD-II tool cannot establish a link with the vehicle—often indicates a failed control module rather than a simple wiring issue. Transmission problems such as harsh shifting, failure to shift into gear, or stuck in limp mode are common because the integrated PCM controls both engine and transmission functions. The presence of module-internal codes like internal memory failure stored in the non-volatile memory often points directly to PCM replacement rather than sensor-related repairs.

Module Trouble Codes on the 2006 Chevrolet Equinox

The 2006 Chevrolet Equinox is documented to store specific module-internal trouble codes that indicate various forms of internal computer failure. These codes—P0601 through P0607, P062F, P1600, P1621, P1627, and P1680 series codes—do not relate to external sensors but instead indicate the PCM’s internal processor, memory, or calibration has become corrupted. When these codes appear alongside or instead of conventional sensor codes, module replacement is typically required.

Factory Service Bulletins Worth Knowing

Factory service bulletin #06-06-04-008 addresses Service Engine Soon light illumination on certain Equinox models with DTC P1404 and/or P0404, where EGR valve and gasket replacement combined with PCM reprogramming was required. Bulletin #05-06-04-060 covers multiple control modules including the PCM sharing DTCs P0601, P0602, P0603, P0604, and P1621 across different vehicle platforms. These bulletins confirm that the Equinox’s control module is known to develop internal faults that trigger these specific trouble codes, and that PCM replacement with proper reprogramming addresses the documented conditions.

Protecting the PCM in Your 2006 Chevrolet Equinox

• Maintain healthy charging system voltage—weak alternators or discharged batteries create voltage fluctuations that stress the PCM
• Ensure all electrical connections remain dry and corrosion-free, especially at module connectors
• Avoid jump-starting from another vehicle when possible, as voltage spikes during jump starts can damage control modules
• Address diagnostic trouble codes promptly rather than driving with illuminated warning lights
• Keep engine bay connector seals intact and avoid pressure washing directly at module locations

Frequently Asked Questions

Can I replace the PCM on my 2006 Chevrolet Equinox with a used unit from a junkyard?

A used PCM requires dealer-level reprogramming with your vehicle’s specific VIN and calibration, which typically costs more than purchasing a new or refurbished unit from a specialty supplier. Additionally, used units carry the same internal failure risks as your current module.

Will my 2006 Equinox run normally after PCM replacement without any programming?

No—the new module must be calibrated to your vehicle’s specifications. Flagship One units ship VIN-programmed for your Equinox, meaning the essential programming is completed before installation, though a relearn procedure may still be needed.

How do I know if my Equinox has a PCM problem versus a simpler sensor issue?

If your scanner cannot communicate with the vehicle at all, or if you have multiple unrelated codes including module-internal codes like P0601, the PCM itself is likely failed. Single sensor codes are more likely to be the sensor, not the control module.

When your 2006 Chevrolet Equinox requires a new engine computer, you have two primary paths: a new or refurbished replacement from an automotive electronics specialist like Flagship One, or a used unit requiring dealer reprogramming. The Flagship One approach provides a VIN-programmed unit ready to install, often saving you the cost and delay of dealer service. Consider your budget, timeline, and whether your shop has scan tool access for relearn procedures when making your decision.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Chevrolet Equinox with a lifetime warranty, free shipping and no core charge. The full Chevrolet Equinox module lineup covers other engine configurations as well.
