2015 Scion iQ PCM/ECM Replacement Guide – Symptoms & Programming
The powertrain control module (PCM) in the 2015 Scion iQ manages engine and transmission functions. Failure may cause no-start, stalling, or a P0606 internal processor fault. Replacement requires 1.5 hours labor plus a 0.5-hour relearn procedure.
Quick Summary
- The PCM is located next to the air cleaner assembly; removal requires taking out the windshield washer jar and No. 1 air cleaner inlet.
- Book labor for PCM removal and installation is 1.5 hours, plus 0.5 hours for the factory relearn procedure.
- A documented module-internal trouble code for this vehicle is P0606, indicating a processor fault.
- Flagship One supplies VIN-programmed units that eliminate the need for the factory relearn step.
If your 2015 Scion iQ with the 1.3L engine is experiencing intermittent stalling, a no-start condition, or a check-engine light that won’t clear, the powertrain control module (PCM) may be at fault. This module acts as the brain for both engine and transmission management, and when it fails, the vehicle often becomes undriveable. This guide explains what the PCM does in your iQ, where it is located, what replacement involves according to factory labor times, and how a pre-programmed unit from Flagship One can simplify the repair. You will also learn about common failure symptoms and the one module-internal trouble code documented for this model.
What the PCM Does in a 2015 Scion iQ
The powertrain control module in the 2015 Scion iQ is a single unit that controls fuel injection, ignition timing, idle speed, and transmission shift points. It receives data from sensors like the crankshaft position sensor and oxygen sensors, then adjusts engine operation for performance and emissions. When this module fails, the iQ may lose communication with the scan tool or store a P0606 code. For a reliable fix, you can order replacement engine computers for the Scion iQ that come ready to install. The module’s location near the air cleaner means replacement is straightforward but requires removing a few components first.
Where the PCM Is Located and What Replacement Involves

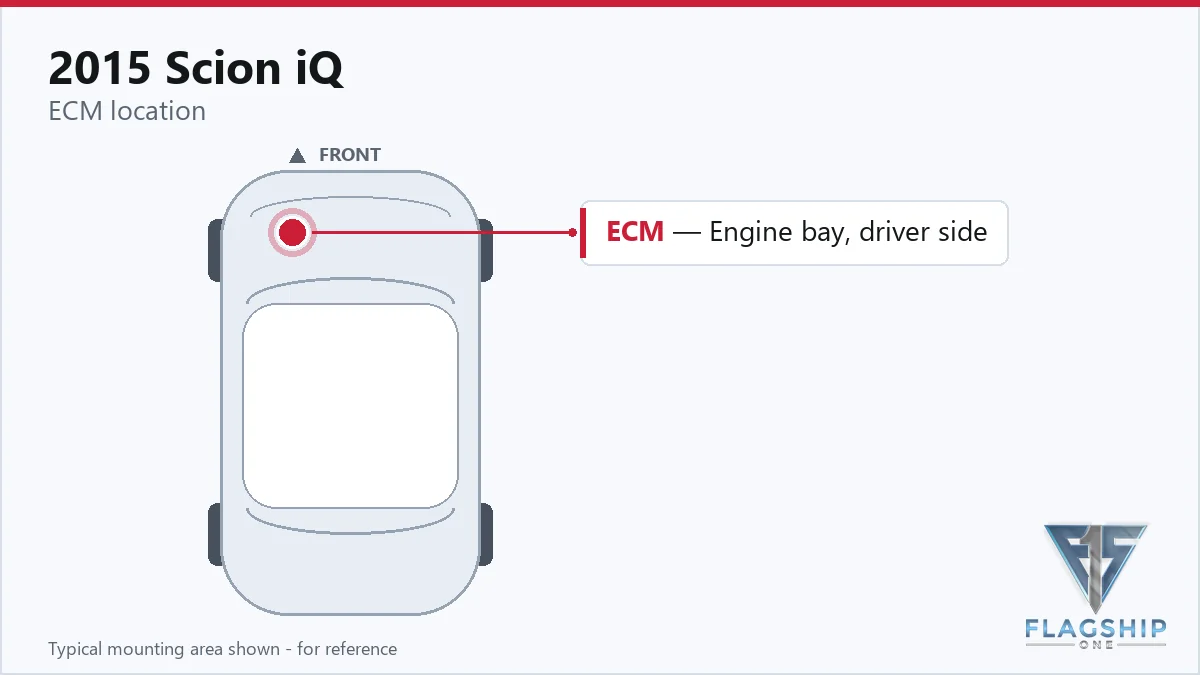

The PCM on the 2015 Scion iQ is mounted next to the air cleaner assembly on the driver’s side of the engine bay. Factory removal instructions call for taking out the windshield washer jar assembly and the No. 1 air cleaner inlet to access the module. According to published labor times, removing and installing the PCM takes 1.5 hours. An additional 0.5 hours is listed for the powertrain control module relearn procedure, which is required after replacement to calibrate the module to the vehicle. No torque specifications were provided for the mounting bolts, so follow factory service manual values if available.
How to Reach the PCM on the 2015 Scion iQ
- Remove windshield washer jar assembly.
- Pull up the lever to loosen the lock and disconnect the 2 connectors from the ECM.
- Remove the 5 bolts and the ECM from the fan shroud.
- Remove ecu bracket.
- Remove the 2 screws and the ECU bracket from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.5 hr |
Programming Requirements After Replacement
After installing a new or replacement PCM in the 2015 Scion iQ, the factory procedure requires a 0.5-hour relearn process to synchronize the module with the immobilizer, throttle position, and other learned values. This step typically involves a scan tool and may require security access codes. Flagship One eliminates this step by shipping a VIN-programmed replacement unit that arrives with the correct calibration already loaded. You simply install the module, connect the battery, and start the engine — the relearn is already done. This saves the 0.5-hour labor charge and the need for specialized equipment.
Symptoms of a Failing PCM
A failing PCM in the 2015 Scion iQ can produce a range of driveability issues. The engine may crank but not start, or it may stall unexpectedly while driving. You might notice erratic shifting from the transmission, as the module controls shift solenoids. The check-engine light often illuminates with a code that cannot be erased. Scan-tool communication may fail entirely, preventing diagnosis. One specific fault documented for this vehicle is internal processor fault P0606 that indicates the module’s internal circuitry has failed. Other generic symptoms include misfire codes, poor fuel economy, and the cooling fan running constantly.
Module Trouble Codes on the 2015 Scion iQ
The following module-internal trouble code is documented for the 2015 Scion iQ 1.3L. This code originates from within the PCM itself and typically requires module replacement rather than sensor repair.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2015 Scion iQ
- Keep the battery and charging system in good condition; voltage spikes from a failing alternator can damage the PCM.
- Inspect and clean the module’s ground connections and main harness connector for corrosion or loose pins.
- Avoid jump-starting the vehicle with a running donor car; use a battery pack or follow the manual’s jump-start procedure exactly.
- Address any check-engine light or driveability code promptly before it stresses the PCM further.
- Ensure the connector seal is intact and the module is protected from moisture and road spray.
Frequently Asked Questions
How do I know if the PCM in my 2015 Scion iQ needs replacement?
Common signs include a no-start condition, stalling, or a P0606 code that returns after clearing. If the scan tool cannot communicate with the PCM, the module is likely faulty. A professional diagnosis should confirm before replacement.
Can I replace the PCM in my 2015 Scion iQ myself?
Yes, the location next to the air cleaner makes it accessible. You will need to remove the windshield washer jar and air cleaner inlet. Book labor is 1.5 hours. After installation, a factory relearn is required unless you use a pre-programmed unit.
What does the factory relearn procedure involve for the 2015 Scion iQ?
The relearn takes 0.5 hours and requires a scan tool to synchronize the new PCM with the vehicle’s immobilizer and throttle body. Some steps may need security codes. A VIN-programmed unit from Flagship One skips this step entirely.
When the PCM in your 2015 Scion iQ fails, you have two options: have a dealer or shop install a new module and perform the 0.5-hour relearn, or choose a refurbished unit from Flagship One that arrives pre-programmed to your VIN. The latter saves time and avoids potential programming complications. Given the iQ’s compact engine bay, the 1.5-hour removal and installation is straightforward for a DIYer with basic tools.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Scion iQ with a lifetime warranty, free shipping and no core charge. The full Scion iQ module lineup covers other engine configurations as well.
Final Thoughts
The 2015 Scion iQ 1.3L relies on its PCM for engine and transmission control. Failure symptoms like no-start, stalling, or a P0606 code point to module replacement. With a VIN-programmed unit from Flagship One, you can skip the factory relearn and get back on the road faster. Always verify the diagnosis before ordering a replacement.
