2004 Scion xA PCM/ECM Replacement and Programming Procedure

If your 2004 Scion xA (1.5L) won’t start, stalls unexpectedly, or runs poorly, the powertrain control module could be the culprit. This guide explains what the module does, where it’s located, and what replacement and programming involves. You’ll learn the factory-recommended procedures, why VIN programming matters for emissions compliance, and how Flagship One units arrive pre-programmed to save you that step. Whether you’re diagnosing a no-start condition or planning a repair, this information helps you understand the process and make informed decisions about your vehicle.

What the PCM Does in a 2004 Scion xA

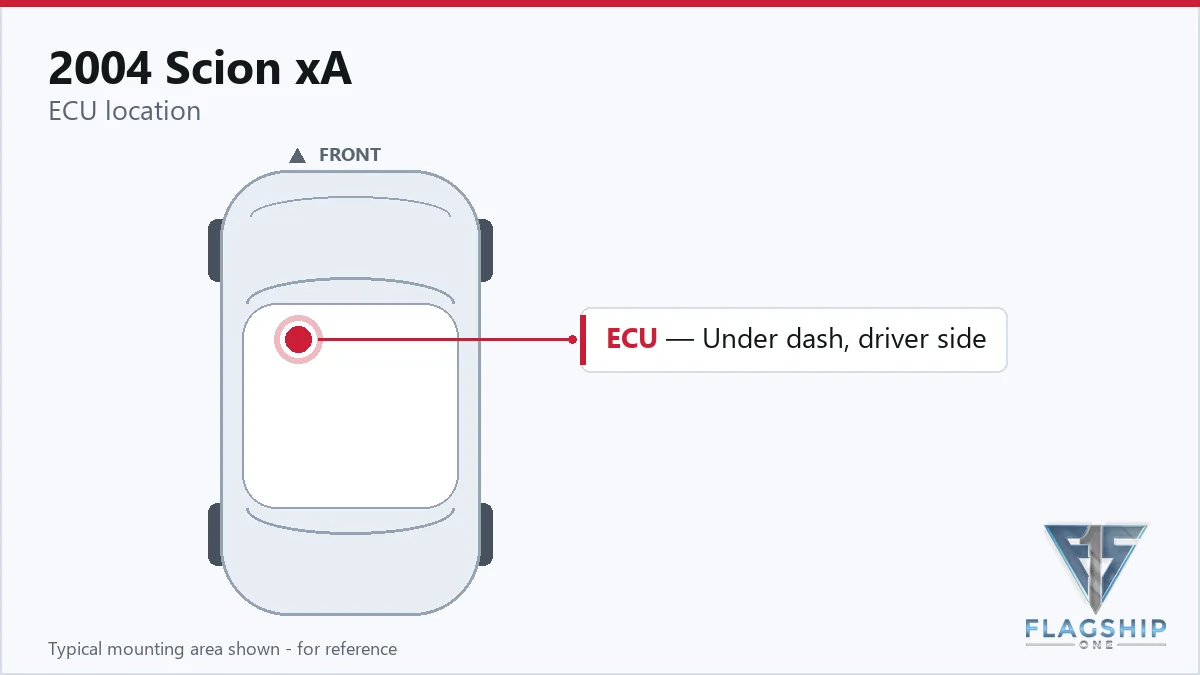

The engine control module in your 2004 Scion xA acts as the brain of the engine management system. It processes input from multiple sensors and controls fuel delivery, ignition timing, and emissions systems to keep the 1.5L engine running efficiently. This module continuously adjusts engine parameters based on real-time driving conditions. When it fails, your vehicle may not start, may stall, or may run with reduced performance. The module is mounted in the instrument panel area, and replacement requires careful attention to proper installation and programming. Professional replacement using replacement engine computers for the Scion xA ensures your vehicle regains proper functionality.

What Replacing the PCM Involves

Programming Requirements After Replacement

The factory procedure requires entering the VIN into the ECM after replacement. This is critical because vehicles with missing or incorrect VINs in the module are subject to failing state and local vehicle emissions inspection and maintenance programs. The VIN must be written in accordance with the diagnostic tester display, and if the written VIN does not match what was entered, the procedure must be repeated. Most 2005 model year vehicles will experience a M (likely MIL illumination) if the VIN is not properly written. Flagship One sends a VIN-programmed replacement unit so these steps are already completed when the module arrives.

Symptoms of a Failing PCM

When the PCM or ECM fails on a 2004 Scion xA, several symptoms commonly appear. The vehicle may fail to start entirely or may start and then stall unexpectedly. Misfire codes may set due to improper fuel or ignition timing. The scan tool may not communicate with the module, making diagnosis difficult. Transmission shifting may become erratic or the vehicle may get stuck in gear. These symptoms often develop gradually as the module’s internal circuits degrade, though sudden failure from a voltage spike or electrical fault is also possible. Addressing these symptoms promptly by replacing the faulty module restores proper engine management and drivability.

Factory Service Bulletins Worth Knowing

Factory service bulletins #SS002-07 and #SS003-07 cover Techstream ECU flash reprogramming procedures. Bulletin #SS002-07 applies to Toyota vehicles from 01-08 model years, while #SS002-07 applies to 04-08 Scion vehicles. These bulletins provide the standardized procedure for updating or reprogramming the ECM using the Techstream diagnostic tool. A June 2005 update added 2004 and 2006 model year vehicles to the VIN Write Procedure and included Highlander HV in step 4.

Protecting the PCM in Your 2004 Scion xA

• Check alternator output regularly to ensure the charging system keeps voltage within proper range
• Inspect and clean ground connections annually to maintain stable electrical paths
• Avoid jump-starting from another vehicle when possible to prevent voltage spikes to the ECM
• Address check engine lights promptly rather than ignoring diagnostic trouble codes
• Keep ECM connector seals intact and protected from moisture and debris

Frequently Asked Questions

Can I replace the ECM on my 2004 Scion xA myself?

Replacement is straightforward for those with mechanical experience, but the relearn procedures require a diagnostic tool. The module must be programmed with the correct VIN to avoid emissions test failures. If you don’t have access to a scan tool, a professional shop should handle the installation.

What happens if VIN programming is skipped after replacing the ECM?

Without proper VIN entry, the vehicle may fail state emissions inspections since the ECM won’t contain the required identification. Additionally, some vehicle functions may not operate correctly, and the check engine light may remain illuminated.

Will a used ECM from a junkyard work in my 2004 Scion xA?

A used ECM would need to be flashed with your vehicle’s specific VIN and possibly other calibration data. This requires specialized equipment and software access that most DIYers don’t have. A new or professionally refurbished unit with VIN programming is the more reliable option.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Scion xA with a lifetime warranty, free shipping and no core charge. The full Scion xA module lineup covers other engine configurations as well.

Final Thoughts

The 2004 Scion xA relies on its engine control module for proper operation, and failure means no-start conditions or emissions test failures. Whether you replace it yourself or hire a professional, ensure the VIN is properly programmed. Flagship One units arrive VIN-programmed to the vehicle, saving you that critical step and helping your Scion xA get back on the road quickly.
