2006 Pontiac GTO PCM and ECM Replacement Guide

When a 2006 Pontiac GTO begins to exhibit erratic idle, loss of power or a cascade of diagnostic codes, the likelihood of a faulty Powertrain Control Module or Engine Control Module rises. Both computers act as the vehicle’s nervous system, translating sensor data into precise engine and transmission commands. Understanding how these modules operate, what the factory cautions entail, and which service bulletins apply can help you decide whether a repair or a refurbished replacement is the most efficient path. This guide walks you through the location, removal steps, required post‑install procedures and practical tips to keep the new unit healthy, giving you a clear picture of what to expect during service.

What the PCM Does in a 2006 Pontiac GTO

The Powertrain Control Module in the 2006 Pontiac GTO serves as the central command hub for the engine and transmission, interpreting sensor inputs to control fuel injection, ignition timing, and shift schedules. It also stores diagnostic trouble codes and communicates with the Engine Control Module, which focuses on combustion management and emissions control. Together they ensure smooth acceleration, optimal fuel economy and compliance with emissions standards. Because the GTO relies on precise coordination between these two computers, any disruption can cause a noticeable loss of performance or trigger multiple fault codes. The module’s role becomes especially critical during cold starts and heavy throttle demands, where timing and fuel delivery must be exact. Replacing a failed unit typically involves swapping the original hardware with a compatible replacement, and the process often includes a 2006 Pontiac GTO replacement ECM to maintain system integrity.

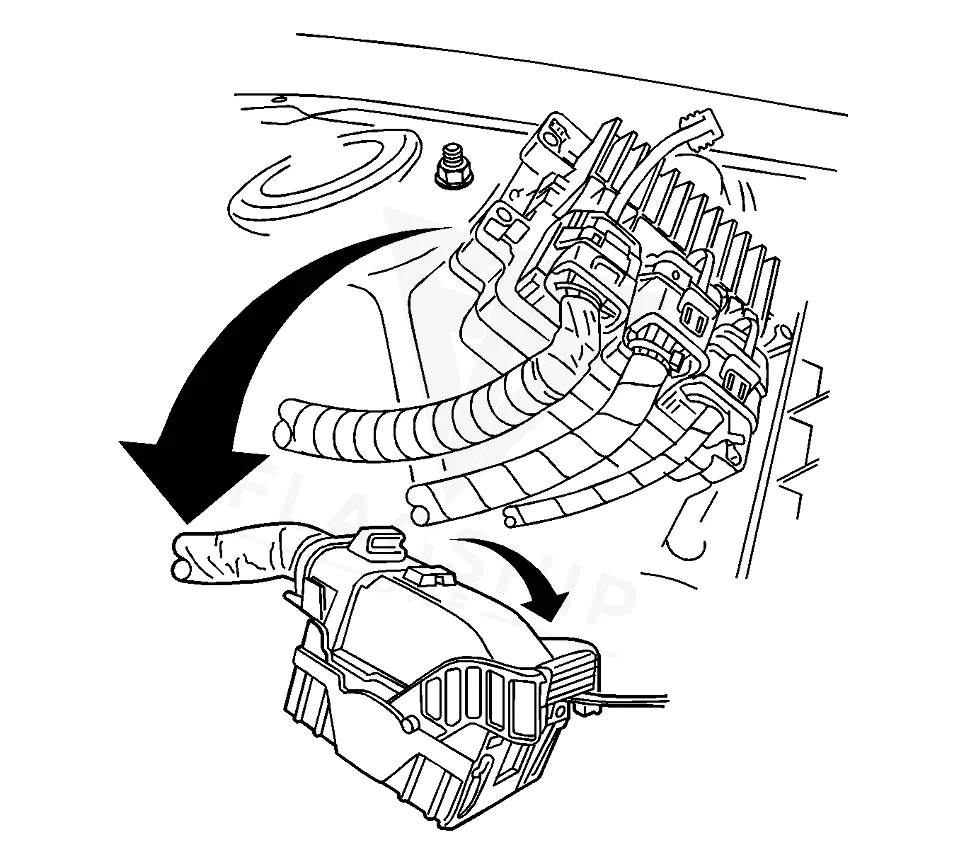

Where the PCM Is Located and What Replacement Involves

Both the PCM and ECM are mounted within the engine compartment, secured to the vehicle’s firewall and accessible after removing a few protective covers. The labor guide lists half an hour for the removal and replacement of each unit, reflecting the straightforward bolt pattern and connector arrangement. When disconnecting the harness, the ignition must be turned off to avoid electrostatic discharge damage, as highlighted by the factory caution. After the connector is released, the module can be unbolted, swapped for the new unit, and the fasteners retightened to the specified torque. Reinstalling the harness follows the same steps in reverse, ensuring the pins are not touched or bent during the process. The combined effort for both modules typically amounts to two hours of shop time, split evenly between removal and installation.

Programming Requirements After Replacement

Once the new PCM or ECM is in place, the factory procedure calls for a series of relearn operations: recording the remaining engine oil life, performing an Engine Control Module relearn, and executing Powertrain Control Module relearn steps. Each of these tasks is allocated 0.5 hours in the service manual, reflecting the need to synchronize the replacement with the vehicle’s existing data. Flagship One units arrive pre‑programmed with the correct VIN and baseline parameters, so the a VIN-programmed replacement unit eliminates the need for manual entry of oil life or other calibration data, allowing the technician to focus on the brief relearn cycles outlined by the manufacturer.

Symptoms of a Failing PCM

A failing PCM or ECM in the 2006 Pontiac GTO often manifests as a no‑start condition, rough idle, unexpected stalling, or erratic transmission shifting. Drivers may notice a loss of power under load, frequent check‑engine illumination, or an inability to clear diagnostic codes. In many cases the fault triggers multiple stored codes, including communication errors such as processor communication error that indicate the modules are not exchanging data correctly. Additional signs include intermittent loss of sensor data, reduced fuel efficiency and occasional hesitation during acceleration. Because the GTO’s control strategy relies heavily on real‑time data exchange, any interruption can quickly degrade drivability and trigger a cascade of related codes.

Module Trouble Codes on the 2006 Pontiac GTO

The following table lists the diagnostic trouble codes that are stored internally by the PCM and ECM on the 2006 Pontiac GTO.

Factory Service Bulletins Worth Knowing

Service Bulletin #05-06-04-060, dated September 23, 2005, documents shared DTCs P0601 through P0604 and P1621 across the PCM, ECM, TCM and related modules. Bulletin #PIC4093B, issued December 3, 2010, warns of a no‑crank condition after reprogramming the ECM, highlighting the importance of correct post‑install procedures.

Protecting the PCM in Your 2006 Pontiac GTO

• Maintain a healthy charging system to avoid voltage spikes that can damage the modules.
• Inspect and clean all ground straps and connector pins regularly.
• Use surge‑protective equipment when jump‑starting to limit transient voltages.
• Address diagnostic codes promptly before they propagate to other systems.
• Keep connector seals intact to prevent moisture intrusion.
• Avoid direct contact with module pins to reduce the risk of ESD damage.

Frequently Asked Questions

Can a 2006 Pontiac GTO run with a faulty PCM?

The vehicle may start, but performance will be limited, and you will likely see multiple fault codes and erratic shifting. Replacement is usually recommended.

Do I need special tools to reinstall the ECM on a 2006 Pontiac GTO?

Standard hand tools are sufficient; the labor guide specifies 0.5 hours for removal and 0.5 hours for installation, indicating no specialized equipment is required beyond torque wrenches.

What is the risk of not recording oil life after installing a new module?

If the remaining oil life is not entered, the system defaults to 100 percent, which can lead to inaccurate maintenance reminders and potential over‑estimation of oil condition.

When the PCM or ECM fails in your 2006 Pontiac GTO, you can choose a factory‑refurbished unit or a Flagship One refurbished replacement. Both options restore the vehicle’s control logic, but the Flagship One product arrives pre‑programmed, streamlining the post‑install process and reducing shop time.

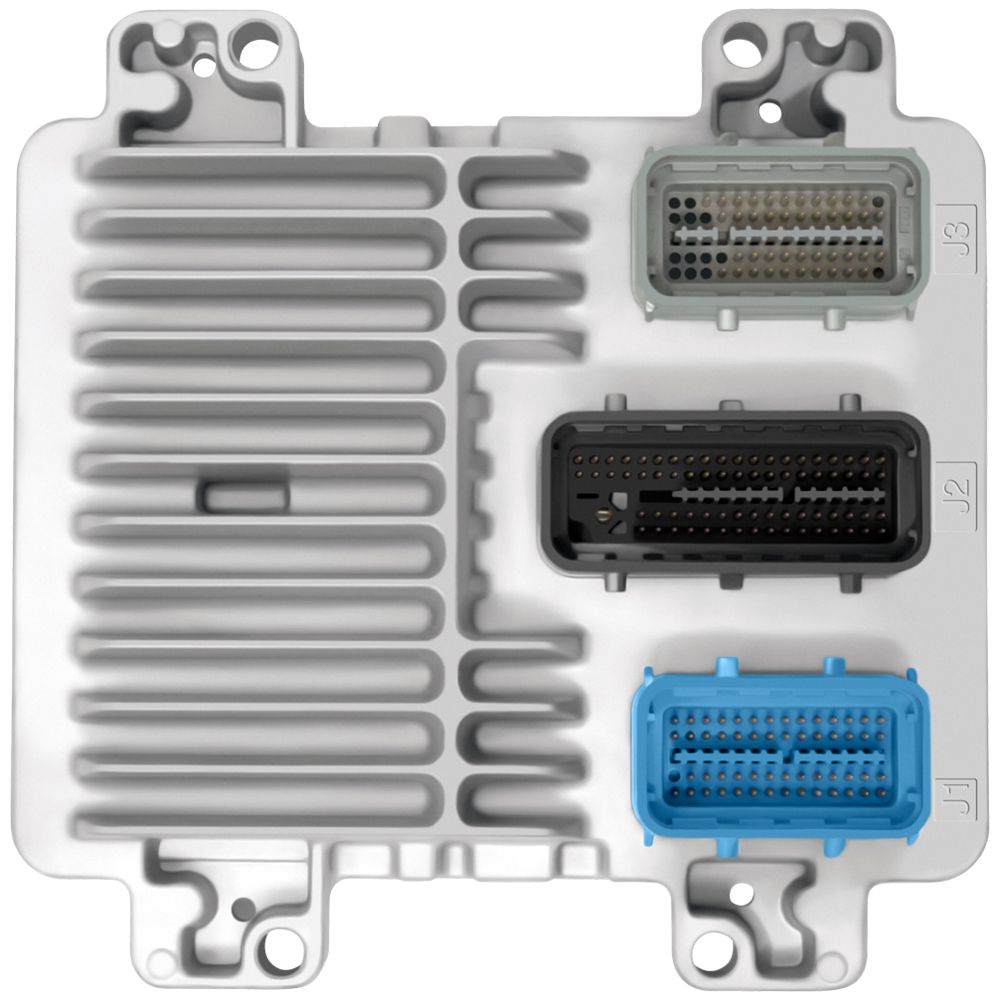

Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Pontiac GTO with a lifetime warranty, free shipping and no core charge. The full Pontiac GTO module lineup covers other engine configurations as well.

Final Thoughts

A malfunctioning PCM or ECM can seriously affect the drivability of a 2006 Pontiac GTO. By following the proper removal, replacement and relearn steps, you can return the car to reliable performance, and a VIN‑programmed replacement from Flagship One simplifies the job.
