2005 Pontiac GTO PCM Replacement: Engine Computer Guide
The Powertrain Control Module serves as the central computer for the 2005 Pontiac GTO’s 6.0L engine and automatic transmission. It processes sensor inputs and commands fuel delivery, ignition timing, and gear shifts. When internal circuitry fails, symptoms range from hard starting and stalling to complete communication loss. Module-internal trouble codes indicate electronic faults inside the computer itself, not external sensor or wiring problems.
Quick Summary
- Module-internal codes (P0601–P1683) signal electronic failures inside the PCM requiring replacement, not sensor issues.
- Factory procedure requires recording remaining engine oil life before installation—if skipped, it defaults to 100 percent.
- ESD-sensitive components mean the replacement PCM must be handled carefully to avoid static damage.
- Book labor totals two hours: one hour for R&R and one hour for relearn procedures across ECM and PCM operations.
- VIN-specific programming is required after replacement; Flagship One units arrive pre-programmed to your vehicle.
If your 2005 Pontiac GTO has set module-internal fault codes, the Powertrain Control Module has detected an internal electronic problem that external repairs cannot resolve. This guide explains what the PCM does in your vehicle, how factory replacement procedures work, and what you need to know about programming requirements. You’ll learn to recognize failure symptoms, understand the relearn process, and see why many owners choose VIN-programmed replacement units over dealer sourcing. The information comes from factory service documentation and the trouble codes documented for this specific vehicle.
What the PCM Does in a 2005 Pontiac GTO
The Powertrain Control Module in your 2005 Pontiac GTO acts as the nerve center for the 6.0L V8 engine and four-speed automatic transmission. It receives data from dozens of sensors including the mass air flow, crankshaft position, camshaft position, and oxygen sensors, then calculates optimal fuel injection pulse width, spark advance, and transmission shift points in real time. The PCM maintains closed-loop fuel control using feedback from the heated oxygen sensors to keep air-fuel ratios at stoichiometric levels during cruising. It also manages the torque converter clutch engagement, evaporative emissions purge, and intake manifold tuning. This module operates continuously while the engine runs, making split-second adjustments to maintain performance, fuel economy, and emissions compliance. For replacement engine computers for the Pontiac GTO, sourcing a properly programmed unit is critical because the module contains vehicle-specific calibration data tied to your VIN.
Flagship One keeps Pontiac GTO replacement engine computers in stock for exactly this failure pattern.

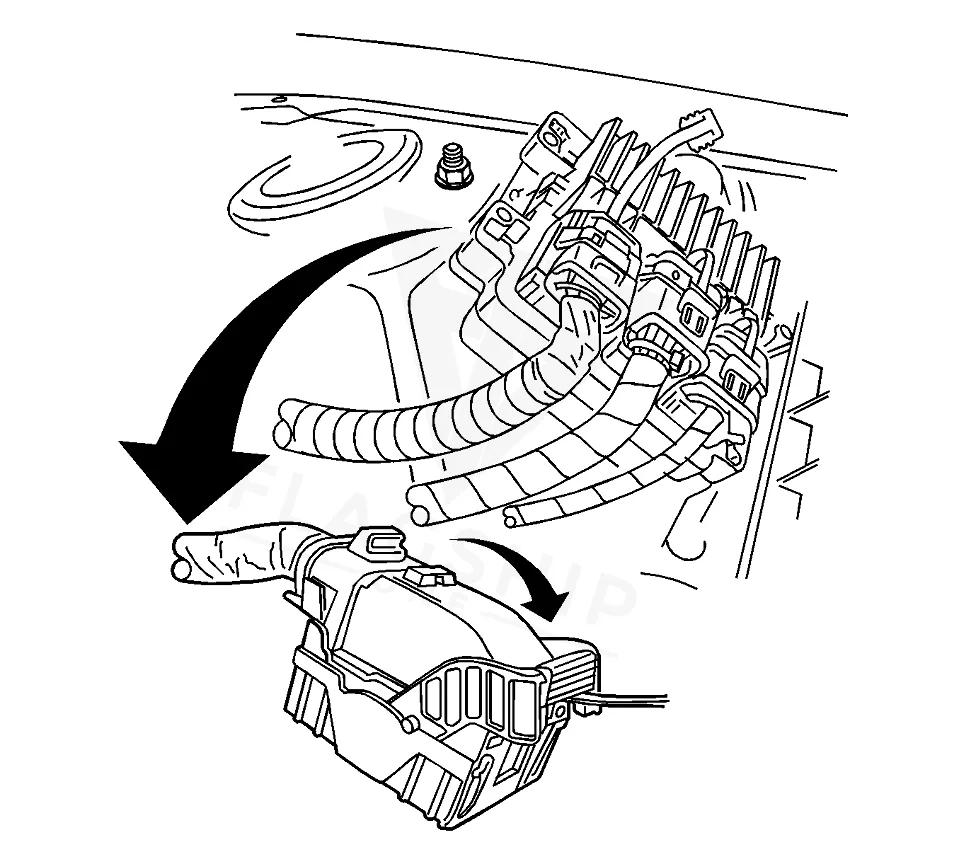

Where the PCM Is Located and What Replacement Involves
The Powertrain Control Module on your 2005 Pontiac GTO is typically located in the engine compartment, mounted to the firewall or near the brake master cylinder. Access requires removing the PCM electrical connector after ensuring the ignition is in the OFF position—this prevents internal damage to the module. The R&R operation books at 0.5 hours, while the associated relearn procedure adds another 0.5 hours. When reconnecting, avoid touching the connector pins or any soldered components on the circuit board to prevent electrostatic discharge damage. Factory guidance emphasizes the importance of clean connector terminals and proper seating during reinstallation. After the module is secured, the relearn procedure allows the new PCM to adapt to your specific engine’s characteristics.
How to Reach the PCM on the 2005 Pontiac GTO
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the connector protection assurance (CPA) locks on each.
- Disconnect the ECM electrical connectors.
- Remove the two screws securing the ECM to the.
- Remove the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a replacement PCM on your 2005 Pontiac GTO, the factory procedure requires entering the remaining engine oil life percentage into the new module. If this step is skipped, the system defaults to 100 percent oil life, which means you lose accurate tracking of when your next oil change is due. The relearn procedure allows the new module to calibrate its fuel trims and transmission adaptives to your specific engine. You must also perform idle relearn and other adaptation procedures. Flagship One sends you a VIN-programmed replacement unit, which means the module arrives with your vehicle’s specific calibration data already installed. This eliminates the need to find a shop with GM programming software or schedule dealer service for the programming step.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Powertrain Control Module fails internally on your 2005 Pontiac GTO, you may experience a no-crank condition where the starter does not engage, or the engine may crank but fail to start. Stalling episodes, particularly at idle or during deceleration, often appear alongside check engine light illumination. Multiple misfire codes setting simultaneously frequently indicate PCM inability to process crank signal data correctly. You may find that scan tools cannot communicate with the vehicle at all, or that the automatic transmission shifts harshly or fails to shift out of a single gear. A persistent check engine light accompanied by module-internal codes like P0601 internal memory fault suggests the PCM itself requires replacement rather than external sensors or wiring being at fault.
Module Trouble Codes on the 2005 Pontiac GTO
The 2005 Pontiac GTO may set any of the following module-internal trouble codes when the Powertrain Control Module detects internal electronic failures: P0601 indicates internal memory checksum invalid, P0602 marks calibration memory fault, P0603 denotes keep-alive memory reset failure, P0604 shows control processor read-only memory error, P0605 indicates read-only memory access fault, P0606 signals coprocessor malfunction, P0607 represents internal control module performance issue, P060E indicates powertrain control module processor fault, P062F shows internal keep-alive memory error, P1600 marks serial communication interruption, P1621 signals theft deterrent communication loss, P1627 represents analog-to-digital performance fault, P1681 indicates powertrain control module power-up segment fault, and P1683 signals loss of class 2 communication. These codes point directly to the module itself rather than external circuits.
Factory Service Bulletins Worth Knowing
Factory Service Bulletin 05-06-04-060 addresses multiple module-internal diagnostic trouble codes including P0601, P0602, P0603, P0604, and P1621 affecting PCM, ECM, and TCM systems shared across multiple GM platforms. The bulletin applies to vehicles from this era, including the 2005 Pontiac GTO, and explains that these codes may appear in various combinations across different control modules. Technical Service Bulletin PIC4093B covers a no-crank condition occurring after reprogramming the ECM, which is relevant when servicing the 2005 Pontiac GTO because reprogramming may be required as part of the replacement process. Both bulletins provide guidance for technicians diagnosing these specific conditions.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
| — | No Crank After Reprogramming ECM – (Dec 3, 2010) | — |
Protecting the PCM in Your 2005 Pontiac GTO
- Maintain the charging system with regular battery and alternator testing to prevent voltage swings that stress the PCM electronics.
- Inspect and clean engine ground connections periodically, as poor grounding can cause voltage irregularities damaging to the module.
- Avoid jump-starting other vehicles or receiving jumps from others, as voltage spikes during jump-starting can exceed module tolerances.
- Address diagnostic trouble codes promptly when they appear, rather than continuing to drive with an ailing module that may fail completely.
- Keep PCM electrical connectors dry and properly sealed to prevent moisture intrusion that leads to corrosion and short circuits.
- When disconnecting the PCM connector for any reason, always turn the ignition OFF first to prevent internal voltage damage.
Frequently Asked Questions
How do I know if the PCM on my 2005 Pontiac GTO needs replacement instead of repair?
If your 2005 Pontiac GTO sets module-internal trouble codes such as P0601, P0602, or P0603, and testing confirms the wiring and sensors are functional, the fault lies within the PCM itself. Module-internal codes specifically indicate electronic failures inside the computer that external repairs cannot address.
Does a replacement PCM for my 2005 Pontiac GTO require programming?
Yes, the replacement module requires VIN-specific programming with your vehicle’s calibration data. Flagship One provides VIN-programmed replacement units, which arrive ready to install without requiring dealer programming services or access to GM diagnostic software.
What happens if I skip recording the engine oil life during PCM replacement on my 2005 Pontiac GTO?
The new PCM will default to 100 percent oil life if you do not enter the remaining percentage using factory specifications. This means the oil life monitoring system will not track your actual oil condition, potentially causing you to exceed recommended change intervals. Flagship One pre-programs this value before shipping.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Pontiac GTO with a lifetime warranty, free shipping and no core charge. The full Pontiac GTO module lineup covers other engine configurations as well.
Final Thoughts
The 2005 Pontiac GTO relies on its Powertrain Control Module to manage the 6.0L engine and transmission as an integrated system. When module-internal fault codes appear, the replacement process involves both mechanical and programming steps, including recording the remaining engine oil life. Choosing a VIN-programmed replacement unit simplifies installation considerably by eliminating the programming step. If your GTO is showing signs of PCM failure, contact Flagship One to discuss your replacement options.
