2006 Mazda RX-8 PCM Replacement Guide: Costs, Codes & Installation
The powertrain control module in your 2006 Mazda RX-8 is the central computer managing fuel delivery, ignition timing, and emissions systems. Internal memory failures may trigger stored fault codes and cause drivability problems.
Quick Summary
- P0601, P0603, and P0604 codes often indicate internal control module failures requiring replacement rather than repair.
- The 2006 Mazda RX-8 with an immobilizer system requires additional relearn time compared to non-immobilizer vehicles.
- Factory post-install programming is mandatory after module replacement, adding steps beyond physical installation.
- Module-internal codes like U0100 may accompany communication failures with other vehicle systems.
- Flagship One units arrive pre-programmed with your specific VIN, eliminating the need for dealer-only programming.
When your 2006 Mazda RX-8 displays unexpected fault codes or exhibits drivability problems, the powertrain control module often bears responsibility. This guide addresses PCM and ECM replacement specifically for your RX-8, covering recognized failure patterns, documented labor times, and what the factory repair procedure requires. You will learn to distinguish genuine module failures from wiring or sensor issues, understand why reprogramming matters, and make informed decisions between repair and replacement options. The information applies specifically to 1.3L rotary-powered RX-8 models from this generation.
What the PCM Does in a 2006 Mazda RX-8
The powertrain control module in your 2006 Mazda RX-8 serves as the primary computer responsible for managing engine operation across the entire rpm range. This unit processes input from numerous sensors to calculate optimal fuel injector pulse width, determine spark advance, and regulate emissions control equipment. Unlike simple sensor modules, this central computer stores permanent calibration data and self-diagnostic routines that verify data integrity during each key cycle. When internal memory corruption occurs, the module may produce seemingly unrelated fault codes across multiple systems. The 2006 RX-8 with a security immobilizer system integrates additional theft-deterrent programming that ties engine operation to recognized key signatures. Replacement engine computers for the RX-8 must match your specific immobilizer configuration to restore proper starting and operation.
Flagship One keeps Mazda RX-8 replacement engine computers in stock for exactly this failure pattern.

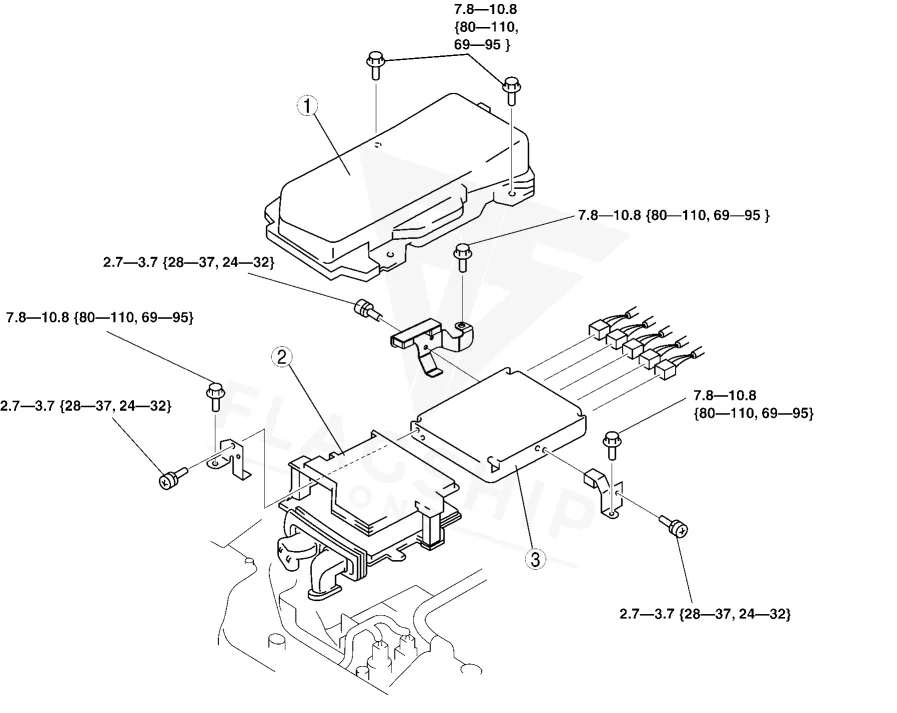

Where the PCM Is Located and What Replacement Involves
The factory labor guide specifies 0.5 hours for powertrain control module removal and installation on 2006 Mazda RX-8 models without an immobilizer system, increasing to 0.6 hours when an immobilizer is present. This time assumes straightforward access and standard mounting provisions. The physical replacement process involves disconnecting the battery, removing the old module from its mounting location, transferring any mounting hardware, and connecting the replacement harness. A separate relearn procedure requires an additional 0.5 hours regardless of which module type your vehicle uses. These times represent book estimates and actual labor may vary based on vehicle condition and accessibility in your specific RX-8.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Without Immobilize System | 0.5 hr |
| Powertrain Control Module R&R | With Immobilize System | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | Without Immobilize System | 0.5 hr |
| Engine Control Module R&R | With Immobilize System | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After physically installing a replacement powertrain control module in your 2006 Mazda RX-8, the factory service procedure requires a dedicated relearn session to synchronize the new module with your vehicle’s unique identification. This process establishes proper communication between the PCM and other control modules, validates security system recognition, and confirms that adaptive fuel tables initialize correctly. Without completing this sequence, your RX-8 may exhibit drivability symptoms or fail to start. Flagship One addresses this requirement by shipping replacement units pre-programmed with your specific vehicle identification number, which means the VIN-matching step is already completed before the module arrives at your door. You will still need to perform the system relearn procedure, but the time-consuming programming step that requires dealer-level equipment is eliminated.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Powertrain control module failures in the 2006 Mazda RX-8 typically manifest as multiple seemingly unrelated symptoms. Common reports include hard starting or no-start conditions, intermittent stalling, and illumination of the check engine light with various fault codes. You may notice poor fuel economy, hesitation during acceleration, or unresponsiveness from the throttle. When the module fails internally, scan tools may show no communication at all, or they may retrieve multiple module-internal fault codes simultaneously. Stored trouble codes often include random memory checksum failures and lost communication with individual control modules. P0601 indicates internal memory checksum error, which suggests the module’s permanent memory has become corrupted and can no longer reliably store calculated values.
Module Trouble Codes on the 2006 Mazda RX-8
The 2006 Mazda RX-8 equipped with a 1.3L rotary engine may store module-internal diagnostic trouble codes indicating powertrain control module failures. These codes point specifically to internal module problems rather than external sensor or wiring issues. The documented codes for this vehicle include P0601, P0603, P0604, U0100, and U0121.
Factory Service Bulletins Worth Knowing
Factory documentation reveals a special service program (MSP16) covering 2004 through 2008 Mazda RX-8 models addressing engine lack of power conditions related to powertrain control module programming. This bulletin, designated 01 013/08, outlines a reflash procedure intended to correct certain drivability concerns. The program applies specifically to vehicles experiencing reduced engine performance that trace back to PCM calibration rather than mechanical faults. Owners encountering persistent power loss despite normal mechanical condition may find this information relevant when discussing repair options with service providers.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 01 013/08 2004 2008 Rx 8 Mazda Special Program (Msp16) Engine Lack Of Power PCM Reflash | — |
Protecting the PCM in Your 2006 Mazda RX-8
- Maintain a healthy charging system by testing battery condition and alternator output annually to prevent voltage fluctuations that stress electronic modules.
- Keep all electrical connections clean and secure by inspecting ground straps and module connectors during routine service intervals.
- Avoid jump-starting your vehicle incorrectly by connecting booster cables in the proper sequence to prevent voltage spikes that can damage sensitive electronics.
- Address stored diagnostic trouble codes promptly rather than allowing them to remain active, as some module-internal codes may worsen over time.
- Preserve connector weather seals and protective covers to prevent moisture intrusion that accelerates corrosion in electrical contacts.
- Use caution when performing welding repairs on your vehicle by disconnecting electronic modules first to avoid transient voltage damage.
Frequently Asked Questions
Can I replace the PCM on my 2006 Mazda RX-8 myself, or do I need a professional mechanic?
The physical removal and installation of the powertrain control module on your RX-8 is straightforward enough for a competent DIY mechanic with basic tools. However, post-installation programming typically requires dealer-level equipment or a specialized tool capable of matching the module to your vehicle’s security system. If you source a VIN-programmed replacement unit, you may still need to visit a shop for the relearn procedure.
Why does my RX-8 need a relearn procedure after PCM replacement?
The factory relearn process synchronizes your new powertrain control module with your vehicle’s unique identification, validates security system communication, and initializes adaptive fuel and transmission learning values. Without completing this sequence, your RX-8 may fail to start, run poorly, or trigger additional fault codes.
My scan tool shows multiple codes including U0100 and P0601. Does this mean the PCM is definitely bad?
Module-internal codes like P0601 and P0603 often point to powertrain control module failure, especially when multiple related codes appear simultaneously or when communication codes accompany them. However, poor grounds, damaged wiring harnesses, or low system voltage can produce similar patterns. Professional diagnosis helps confirm whether the module itself requires replacement.
Deciding between repairing your existing powertrain control module or replacing it with a refurbished unit depends on your specific situation. Rebuilding an internal module involves specialized equipment and expertise that few shops possess. A remanufactured replacement from Flagship One may offer better long-term reliability than a repaired unit that already experienced internal failure. Consider factors such as your vehicle’s overall condition, repair budget, and whether the failed module triggered additional damage to related systems before committing to either path.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Mazda RX-8 with a lifetime warranty, free shipping and no core charge. The full Mazda RX-8 module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Mazda RX-8 powertrain control module represents a critical component that affects nearly every aspect of engine operation. Recognizing the signs of internal module failure, understanding the documented labor times, and knowing that post-installation programming is a required step will help you navigate the repair process with confidence. Whether you ultimately choose repair or replacement, addressing PCM problems promptly may prevent cascading failures in your RX-8’s systems.
