2004 Mazda RX-8 Engine and Powertrain Control Module Repair Guide
In the 2004 Mazda RX-8, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and emission controls. A failure typically interrupts communication with sensors, triggers diagnostic trouble codes, and can prevent the engine from starting or running smoothly.
Quick Summary
- PCM/ECM replacement may require 0.5‑0.6 hours of labor depending on immobilizer presence.
- Relearn procedures also take about half an hour after installation.
- Factory bulletins call for a PCM reflash to address specific no‑start conditions.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding.
When a 2004 Mazda RX-8 experiences intermittent power loss, no‑start conditions, or persistent trouble codes, the engine and powertrain control modules are often the source. This guide explains what these modules do, how they are accessed, and what steps are needed after replacement. You will learn the typical labor times, the required reflash or relearn procedures, and practical tips to keep the modules operating reliably.
What the PCM Does in a 2004 Mazda RX-8
The PCM and ECM in a 2004 Mazda RX-8 serve as the vehicle’s central computers, interpreting sensor data to regulate fuel injection, spark timing, and emission functions. They also coordinate transmission control and diagnostic reporting. Proper operation is essential for engine start, idle stability, and overall performance. replacement engine computers for the 2004 Mazda RX-8 ensures that the vehicle runs within factory specifications and avoids error‑code cascades.

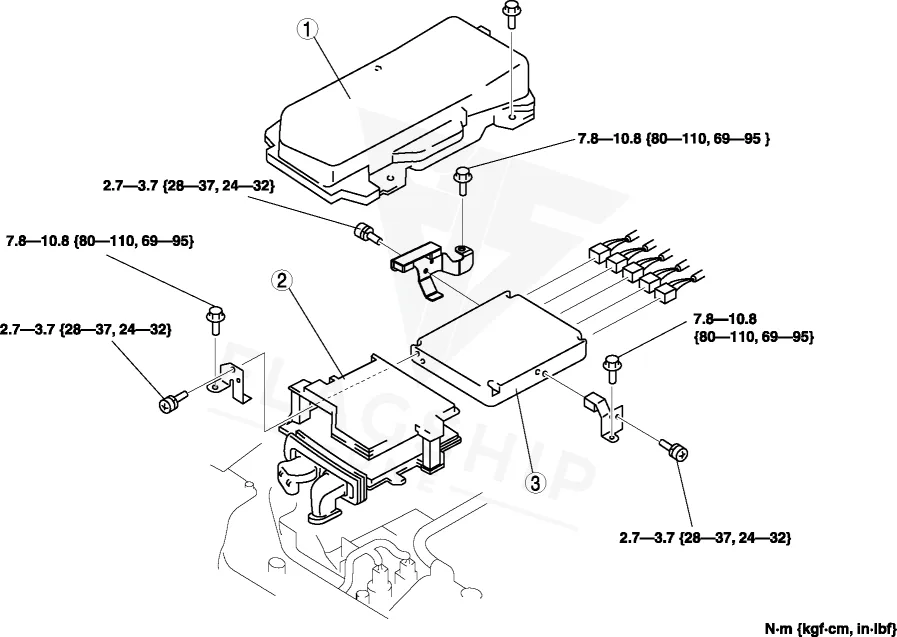

Where the PCM Is Located and What Replacement Involves
Both modules are mounted in the engine compartment, typically secured with bolts that a technician can access without removing major components. Replacing the PCM without an immobilize system generally requires about 0.5 hours of labor, while the version with an immobilize system may take roughly 0.6 hours. The same time frames apply to the ECM. After the unit is secured, a relearn step of 0.5 hours is needed to synchronize the new computer with the vehicle’s control networks.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Without Immobilize System | 0.5 hr |
| Powertrain Control Module R&R | With Immobilize System | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | Without Immobilize System | 0.5 hr |
| Engine Control Module R&R | With Immobilize System | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the factory procedure calls for a specific reflash or relearn sequence to align the module with the vehicle’s VIN and calibration data. Flagship One provides a VIN-programmed replacement unit that arrives already matched to your car, so those programming steps are completed before the part reaches your shop.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2004 Mazda RX-8 include a complete no‑start condition, reduced power output, and intermittent stalling. Diagnostic trouble codes such as processor communication error often appear, and you may lose scan‑tool connectivity or notice erratic transmission shifts. These symptoms usually point to internal module faults rather than external wiring issues.
Module Trouble Codes on the 2004 Mazda RX-8
The following diagnostic trouble codes are commonly recorded by the PCM and ECM in this vehicle:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0610 | Module-internal fault | Full P0610 guide → |
| P0638 | Module-internal fault | Full P0638 guide → |
| P0661 | Module-internal fault | Full P0661 guide → |
| P0662 | Module-internal fault | Full P0662 guide → |
| P1686 | Module-internal fault | — |
| P1687 | Module-internal fault | — |
| P1688 | Module-internal fault | — |
| P2502 | Module-internal fault | Full P2502 guide → |
| P2503 | Module-internal fault | Full P2503 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin Msp04 (2004 RX‑8 Engine No Start, Lack Of Power, DTCs P2107, P2108, P2402 Or P0420) and the related 01 008/05 Mazda Special Program both prescribe a PCM reflash to correct the no‑start and power‑loss condition.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Msp04 2004 Rx 8 Engine No Start, Lack Of Power, DTCs P2107, P2108, P2402 Or P0420 Powertrain Co | — |
| — | 01 008/05 Mazda Special Program (Msp04) 2004 Rx 8 Engine No Start, Lack Of Power, DTCs P2107, P | — |
Protecting the PCM in Your 2004 Mazda RX-8
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground straps and connector pins regularly.
- Avoid jump‑starts that can introduce voltage spikes to the control modules.
- Address any diagnostic codes promptly before they compound.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
Can a faulty PCM cause the 2004 Mazda RX-8 to stall while driving?
Yes, the PCM controls fuel and spark timing, so an internal fault can lead to intermittent stalling, especially under load.
Do I need special tools to relearn the ECM on a 2004 Mazda RX-8?
The relearn process uses standard factory procedures and typically takes about half an hour; a scan tool that supports Mazda protocols is required.
Is the immobilize system relevant when replacing the PCM on my RX‑8?
When the immobilize system is present, labor time increases slightly, reflecting the extra steps needed to disable and re‑enable the anti‑theft function.
When the PCM or ECM fails, you can choose a new factory‑spec unit or a refurbished replacement that meets the same performance standards. Both options restore the vehicle’s control logic, but a refurbished part may offer a cost advantage while still delivering reliable operation for your 2004 Mazda RX-8.

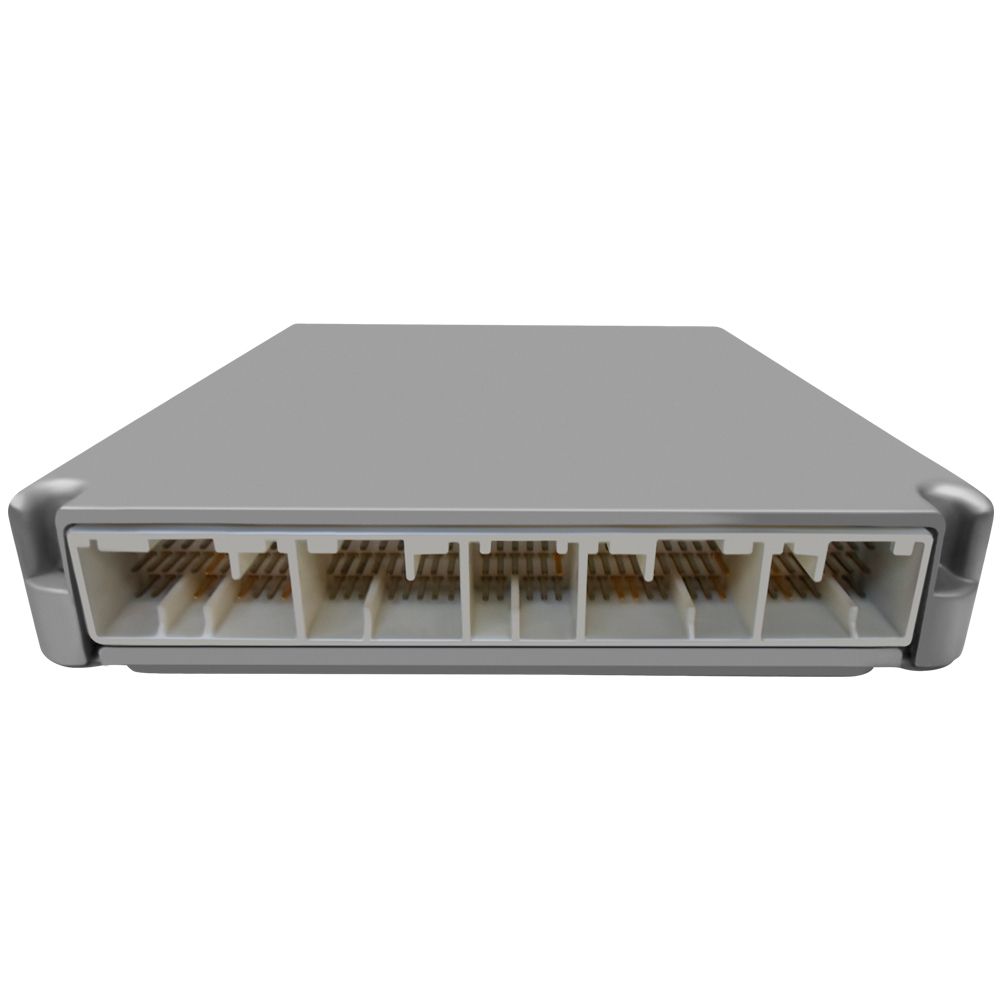

Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Mazda RX-8 with a lifetime warranty, free shipping and no core charge. The full Mazda RX-8 module lineup covers other engine configurations as well.
Final Thoughts
The powertrain and engine control modules are critical to the 2004 Mazda RX-8’s performance. Replacing a faulty unit with a properly programmed part restores functionality and helps you avoid recurring issues. Consider your repair path carefully to keep the car running smoothly.
