2009 Mazda RX-8 PCM and ECM Replacement Guide – Service Manual Overview
In the 2009 Mazda RX-8, the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and communications with the transmission. A failure in either unit can interrupt critical signals, leading to loss of power, stalling, or inability to start the vehicle.
Quick Summary
- PCM and ECM removal typically requires about half an hour of labor.
- Both modules share similar mounting locations, simplifying the swap.
- Factory re‑learn procedures are needed after installation.
- Common fault codes include P0601, P0603, P0604, U0100, and U0121.
When a 2009 Mazda RX-8 begins to exhibit intermittent stalling, a no‑start condition, or erratic transmission shifts, the underlying cause often points to the vehicle’s electronic control modules. Understanding how the Powertrain Control Module (PCM) and Engine Control Module (ECM) operate, where they reside, and what steps are required for a proper replacement can help you avoid unnecessary diagnostics and get your car back on the road faster. This guide walks you through the function of each module, the typical labor involved, the programming steps after a swap, and practical tips to keep the new unit reliable. By the end, you should feel confident in evaluating the need for a repair versus a refurbished replacement and know what to expect from a professional installation.
What the PCM Does in a 2009 Mazda RX-8
The PCM in the 2009 Mazda RX-8 serves as the central command for powertrain operations, interpreting sensor data to control fuel injection, ignition timing, and emission systems. The ECM focuses specifically on engine management, handling combustion monitoring, idle control, and communication with the PCM. Together, they ensure the rotary engine runs smoothly and that the transmission shifts at the correct moments. Because the RX-8 uses a rotary engine, precise timing is crucial; any discrepancy can lead to loss of power or increased emissions. Maintaining accurate data flow between these modules and the vehicle’s sensors is essential for reliability and performance. The modules also store diagnostic trouble codes that help pinpoint failures. Access to both units is facilitated by their placement near the engine bay, allowing technicians to replace them without removing major components. Understanding their roles helps you appreciate why a proper reinstall and programming step is mandatory. RX-8 replacement modules remain compatible with the factory wiring harnesses, ensuring a seamless swap when the original units fail.
Where the PCM Is Located and What Replacement Involves

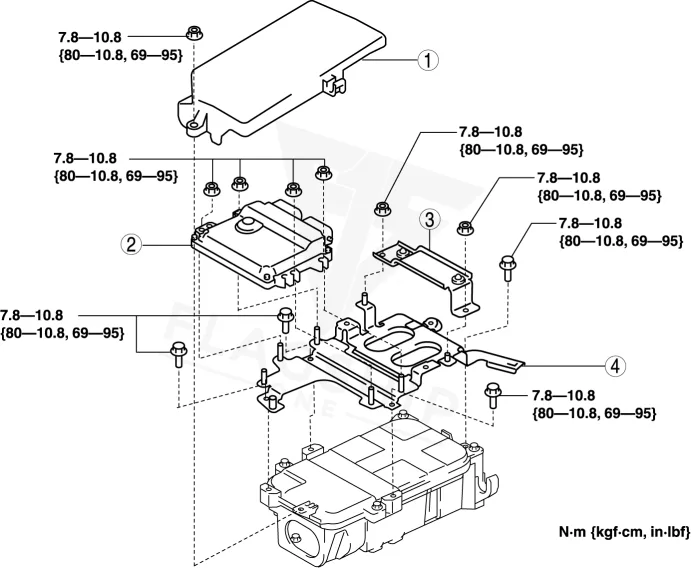

Both the PCM and ECM are mounted in the engine compartment of the 2009 Mazda RX-8, typically secured to the firewall or a nearby bracket. Removal begins by disconnecting the battery to protect electronic circuits, followed by unplugging the module connectors and any associated grounding straps. The modules are held in place with bolts that generally require a standard torque specification; however, the exact torque value is not provided in the available data. Once the bolts are removed, the unit can be lifted out of its cradle. Installation reverses the process: position the new module, torque the bolts to the factory specification, reconnect all electrical plugs, and reattach the battery. Labor times from the service manual indicate that a removal and replacement without dealing with an ignition immobilize system usually takes about 0.5 hours, while work that includes the immobilize system may extend to 0.6 hours. These estimates cover the physical swap and basic verification steps.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Without Ignition Immobilize | 0.5 hr |
| Powertrain Control Module R&R | With Ignition Immobilize | 0.6 hr |
| Engine Control Module R&R | Without Immobilize System | 0.5 hr |
| Engine Control Module R&R | With Immobilize System | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the PCM or ECM is installed in a 2009 Mazda RX-8, the factory service procedure requires a module relearn to synchronize the new unit with the vehicle’s existing parameters. The Engine Control Module Relearn operation is listed as taking 0.5 hours in the service guide. Flagship One supplies units that arrive pre‑programmed with the vehicle identification number, so the VIN‑specific calibration is already completed. This means the technician only needs to perform the standard relearn step, which clears the internal memory and allows the module to learn the engine’s operating characteristics during the first drive cycles. Using a VIN‑matched component eliminates the need for additional programming tools or dealer‑only software. a VIN-programmed replacement unit thus reduces shop time and the chance of programming errors.
Symptoms of a Failing PCM
A failing PCM or ECM in a 2009 Mazda RX-8 may manifest as a complete loss of engine power, intermittent stalling while cruising, or the inability to start the vehicle after a cold start. Drivers often notice the check engine light flashing and may retrieve diagnostic codes such as P0601 internal processor error, which indicates a processor malfunction within the module. Additional signs include erratic transmission shifting, reduced fuel efficiency, and occasional dead scan‑tool communication where the diagnostic connector shows no response. Because the RX-8 relies on precise timing for its rotary engine, any disruption in module communication can quickly lead to noticeable performance degradation. Prompt attention to these symptoms can prevent further damage to related sensors or the ignition system.
Module Trouble Codes on the 2009 Mazda RX-8
The following internal trouble codes are commonly logged by the PCM and ECM in the 2009 Mazda RX-8:
Protecting the PCM in Your 2009 Mazda RX-8
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all module ground connections regularly.
- Use surge protectors when jump‑starting to prevent voltage spikes.
- Address any stored diagnostic codes promptly to avoid module stress.
- Ensure connector seals remain intact to keep moisture out.
- Periodically check battery terminals for corrosion.
Frequently Asked Questions
Can a faulty PCM cause transmission shifting problems in my 2009 Mazda RX-8?
Yes, the PCM controls shift timing and torque requests; a malfunction can lead to harsh or delayed shifts, especially under load.
Do I need a special tool to reinstall the ECM in a 2009 Mazda RX-8?
No special tool is required for the physical installation, but a diagnostic scanner is needed to perform the relearn procedure after the swap.
Is it safe to replace the PCM myself on a 2009 Mazda RX-8?
If you follow proper safety steps—disconnecting the battery, handling connectors carefully, and observing torque specs—the replacement can be done without professional assistance.
What does the P0603 code indicate for my RX-8?
P0603 points to an internal control module processor fault, which often requires module replacement or a thorough relearn.
Will a refurbished ECM work as well as a new one in my 2009 Mazda RX-8?
A refurbished unit that has been tested and VIN‑programmed can perform comparably to a new module, provided it meets factory specifications.
