2006 Jeep Grand Cherokee PCM and ECM Replacement Guide
In the 2006 Jeep Grand Cherokee the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and emissions. Failure typically results from internal circuit degradation, leading to loss of sensor data and engine control errors.
Quick Summary
- PCM is mounted on the right‑front inner fender and requires about 0.4 hours to remove.
- ECM removal also takes roughly 0.4 hours, with a 0.5‑hour relearn afterward.
- Service bulletin #08‑030‑06 Rev. A outlines the required PCM initialization steps.
When a 2006 Jeep Grand Cherokee experiences intermittent power loss, rough idle, or a check‑engine light, the underlying issue often points to the vehicle’s control modules. This guide explains where the PCM and ECM reside, what the factory expects after replacement, and how Flagship One parts simplify the process. By the end, you will understand the basic labor involved, the programming requirements, and practical steps to keep the modules functioning reliably.
What the PCM Does in a 2006 Jeep Grand Cherokee
The Powertrain Control Module in a 2006 Jeep Grand Cherokee coordinates engine and transmission commands, while the Engine Control Module handles fuel injection and ignition timing. Together they ensure the powertrain operates within design parameters, and any internal fault can trigger a loss of driveability. Understanding these roles helps you see why proper installation matters. The module’s function is similar to other replacement engine control module for the 2006 Jeep Grand Cherokee and directly influences emissions compliance.

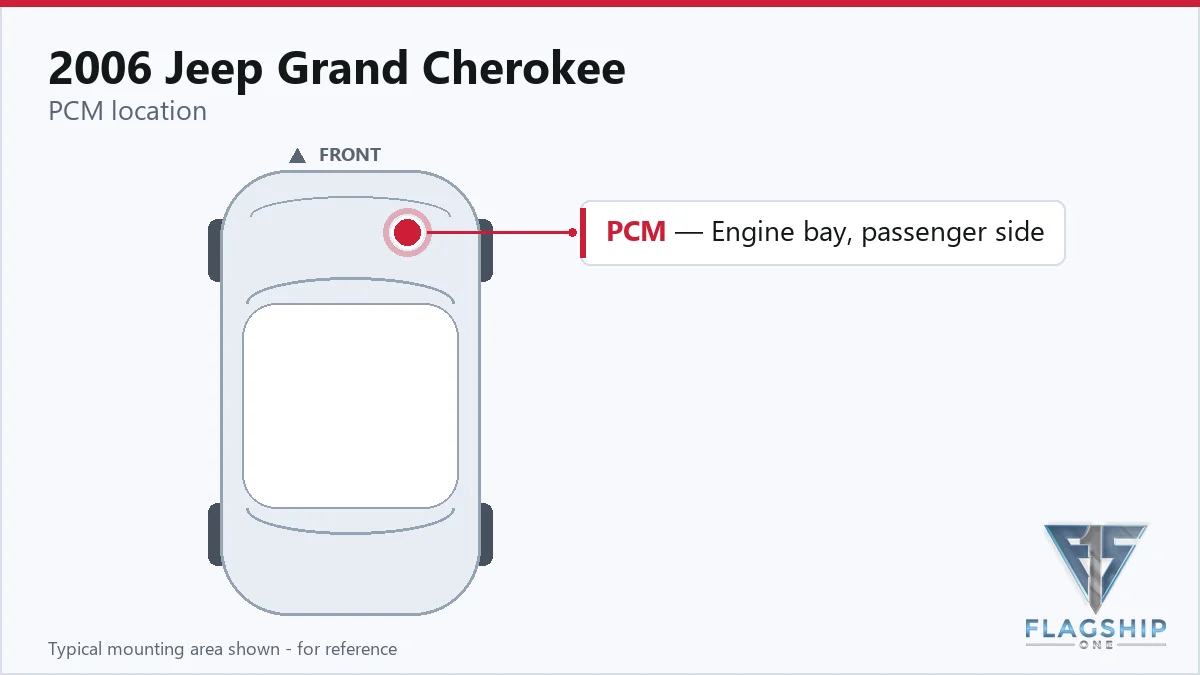

Where the PCM Is Located and What Replacement Involves
The PCM is secured to the right‑front inner fender within the engine compartment, making it accessible after removing the front splash shield. Removing the module typically requires 0.4 hours of labor. The ECM sits nearby and also demands about 0.4 hours to detach and replace. No specific torque values are listed, so standard connector removal and re‑attachment practices apply.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure includes a Powertrain Control Module Initialization as described in service bulletin #08‑030‑06 Rev. A, followed by an Engine Control Module Relearn that usually takes 0.5 hours. Flagship One units arrive pre‑configured, so a a VIN‑programmed replacement unit eliminates the need for those steps on the shop floor.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in this Jeep include a no‑start condition, erratic idle, and loss of power during acceleration. You may also see communication loss with scan tools or unexpected transmission shifts. One documented fault is processor clock signal malfunction, which often appears alongside other powertrain codes.
Module Trouble Codes on the 2006 Jeep Grand Cherokee
The following internal trouble codes are commonly recorded when the control modules experience faults in a 2006 Jeep Grand Cherokee:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #08‑030‑06 Rev. A provides guidance on Powertrain Control Module Initialization after replacement. This bulletin outlines the steps needed to reset the module and ensure proper operation.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | 08-030-06 Rev. A Powertrain Control Module Initialization | — |
Protecting the PCM in Your 2006 Jeep Grand Cherokee
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean all ground connections and module connectors regularly.
- Use surge protectors or avoid direct jump‑starts that could introduce voltage spikes.
- Address any diagnostic trouble codes promptly to prevent escalation.
- Keep connector seals intact to protect against moisture intrusion.
Frequently Asked Questions
Can I replace the PCM on my 2006 Jeep Grand Cherokee myself?
The PCM is reachable without major disassembly, and the labor time is modest, but proper handling of electrical connections and adherence to the initialization bulletin are essential.
What does the P0606 code indicate for this vehicle?
P0606 signals a communication issue within the Powertrain Control Module, which may stem from internal circuit failure or a poor connector contact.
Do I need special tools to reinstall the ECM?
No unique tools are listed for the ECM removal; standard hand tools and careful connector handling are sufficient.
When the control modules in a 2006 Jeep Grand Cherokee need service, you can either perform a direct repair using a new OEM part or choose a refurbished replacement that meets factory specifications. Both paths require the same installation steps, but a refurbished unit from Flagship One arrives pre‑programmed, saving you the initialization time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Jeep Grand Cherokee with a lifetime warranty, free shipping and no core charge. The full Jeep Grand Cherokee module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in your 2006 Jeep Grand Cherokee can restore reliable engine performance and clear diagnostic codes. Consider a VIN‑programmed replacement to reduce post‑install work and get back on the road sooner.
