2003 Jeep Grand Cherokee PCM Relearn and Replacement Guide
The powertrain control module in a 2003 Jeep Grand Cherokee manages engine timing, fuel delivery, and transmission coordination. When the module fails, the vehicle may lose power, experience rough idle, or trigger diagnostic codes, often requiring removal and reprogramming to restore normal operation.
Quick Summary
- PCM sits on the cowl panel right‑hand side of the engine bay.
- Typical removal time is about four‑tenths of an hour.
- Relearn procedures range from three‑tenths to a half hour.
- Factory‑programmed replacements arrive pre‑loaded with VIN and mileage.
When a 2003 Jeep Grand Cherokee begins to exhibit intermittent power loss, rough running, or a complete no‑start condition, the powertrain control module is a frequent suspect. Understanding how this computer functions, where it lives, and what steps are needed after a swap can save you time and unnecessary parts. This guide walks you through the module’s role, its location, the labor involved, and the programming requirements so you know exactly what to expect when addressing the issue.
What the PCM Does in a 2003 Jeep Grand Cherokee
The powertrain control module in the 2003 Jeep Grand Cherokee acts as the brain for both engine and transmission, processing sensor data to adjust fuel, spark, and shift timing. It ensures the vehicle runs smoothly and meets emissions standards. Proper operation is essential for performance and fuel economy. The module is part of a family of replacement powertrain control modules for the 2003 Jeep Grand Cherokee that share similar architecture across many Jeep models.
Where the PCM Is Located and What Replacement Involves
The PCM is mounted on the cowl panel toward the rear side of the engine compartment, accessible from the right side. Removing the unit typically requires about four‑tenths of an hour of labor, according to the standard book time. After disconnecting the electrical connectors, the module can be taken out without additional tools, and the replacement follows the same time estimate. Reinstalling involves securing the unit in its original position and reconnecting the harness.
How to Reach the PCM on the 2003 Jeep Grand Cherokee
- Disconnect negative battery cable at battery.
- Remove coolant reserve/overflow tank.
- Remove cover over electrical connectors.
- Unplug three 32way connectors at PCM.

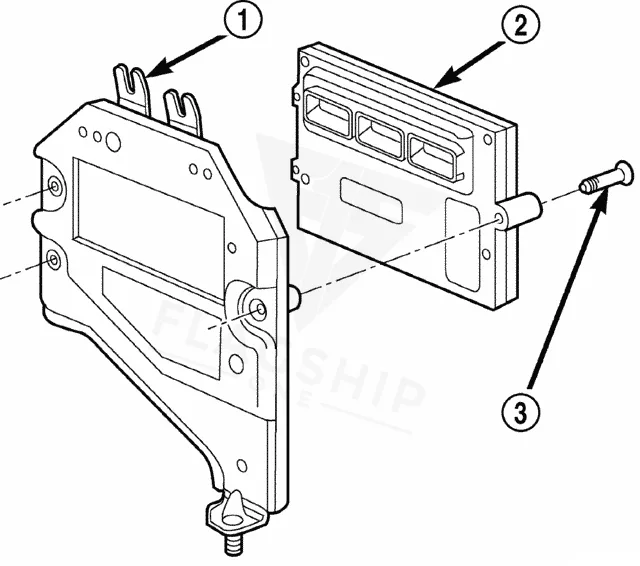

- Remove three PCM bracket-to-body mounting nuts ().
- Remove PCM/PCM bracket assembly from vehicle.
- Remove 3 PCM-to-PCM bracket bolts (screws) ().
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
Programming Requirements After Replacement
After a PCM swap, the factory process calls for using the DRBIII scan tool to load the vehicle’s original identification number and mileage into the new computer. Flagship One supplies a a VIN-programmed replacement unit that arrives already configured, eliminating the need for on‑site reprogramming steps.
Symptoms of a Failing PCM
Typical signs of a failing powertrain control module in a 2003 Jeep Grand Cherokee include a complete lack of engine start, intermittent stalling, rough idle, and loss of communication with scan tools. You may also see the diagnostic indicator illuminate with a code such as processor fault P0601 that points to internal processor issues within the module.
Module Trouble Codes on the 2003 Jeep Grand Cherokee
The following internal diagnostic codes are documented for this vehicle and help pinpoint PCM‑related problems.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #08-030-06 Rev. A addresses the initialization procedure for the powertrain control module after replacement, guiding technicians through the required steps to ensure proper operation.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | 08-030-06 Rev. A Powertrain Control Module Initialization | — |
Protecting the PCM in Your 2003 Jeep Grand Cherokee
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and connector pins regularly.
- Use surge‑protective devices when jump‑starting to prevent spikes.
- Address any stored trouble codes promptly to avoid module stress.
- Keep connector seals intact to protect against moisture ingress.
Frequently Asked Questions
What is the typical labor time to replace the PCM on a 2003 Jeep Grand Cherokee?
The standard book time for removing and reinstalling the PCM is about four‑tenths of an hour, not including any additional diagnostic work.
Do I need special tools to reprogram the PCM after replacement?
Factory guidance calls for the DRBIII scan tool, but a Flagship One unit arrives pre‑programmed with VIN and mileage, so no on‑site reprogramming is required.
Which trouble code indicates an internal processor issue in this vehicle’s PCM?
Code P0601 signals a processor fault within the powertrain control module and often appears when the module is failing.
When the PCM in your 2003 Jeep Grand Cherokee needs attention, you can choose a repair that follows the factory reprogramming steps or opt for a refurbished replacement that arrives already VIN‑matched. Both paths aim to restore reliable engine and transmission control, but the pre‑programmed unit can reduce shop time and potential errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Jeep Grand Cherokee with a lifetime warranty, free shipping and no core charge. The full Jeep Grand Cherokee module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM problems in a 2003 Jeep Grand Cherokee helps maintain performance and prevent future drivability issues. Whether you follow the factory reprogramming routine or select a pre‑configured replacement, the goal is a dependable vehicle ready for the road.
